Part Number # E1012-103
SKU # 2277671
E1012-103

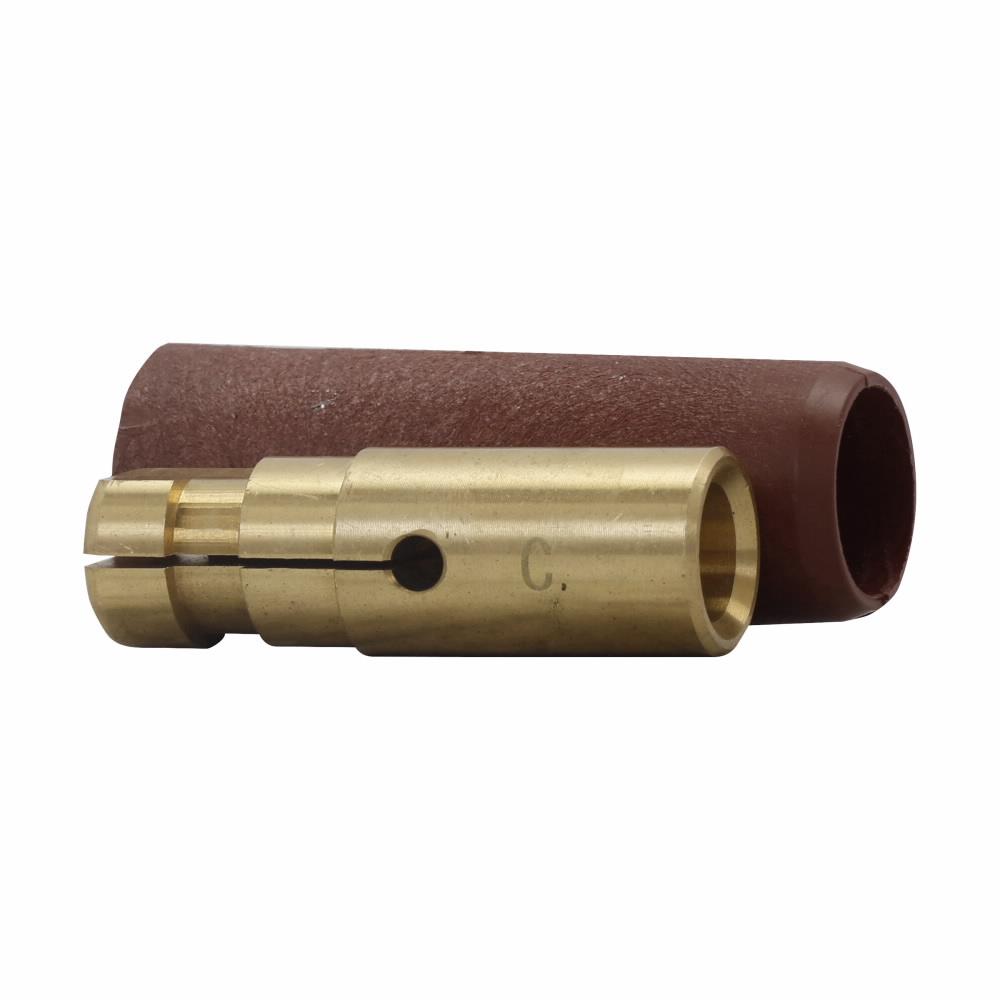

Crouse Hinds E1012-103 Male Plug
Part Number # E1012-103
SKU # 2277671
Crouse Hinds E1012-103 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1012-103 |
| SKU #: | 2277671 |
| Dimensions: | 1.19 in Dia x 3.86 in L |
| NEMA Rating: | 3 |
| Series: | F Series E1012 |
| Wire Size: | 3/0 to 1/0, 3/0 to 1/0 AWG |
| Connection type: | Solder Terminal |
| UNSPSC: | 39121406 |
| UPC: | 00662275125828 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1012-103 Male Plug
Brand: Crouse Hinds
Part Number: E1012-103
EATON Crouse-Hinds Cam-Lok Male Plug, Series: F Series E1012, 120 VAC, 315 A, 3/0 to 1/0 AWG Wire, Solder Terminal Connection, Brass Contact, Thermoplastic Housing Material, NEMA 3 NEMA Rating, -40 to 105 deg C, Red, 1.19 in Dia x 3.86 in L Dimensions
Additional Description: CRHD-E1012-103 (N) E1012 M P SLDR 1/0 TO 3/0 RD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Red, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
E1012-103 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Welding Power Supplies, Distribution Panels, Patch Panels, Heat Treating and Stress Relieving ApplicationsE1012-103 Includes
201281-712RM InsulatorE1012-103 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Thermoplastic insulators molded from colorfast material, color coded for easy identification
- Reinforced thermoplastic construction
E1012-103 Standards
CSA Certified|OSHA Standard|UL ListedSKU #2277671Part Number #E1012-103UNSPSC39121406UPC00662275125828
Image provided may only be a representation of final product and may include optional equipment
