E1015-1

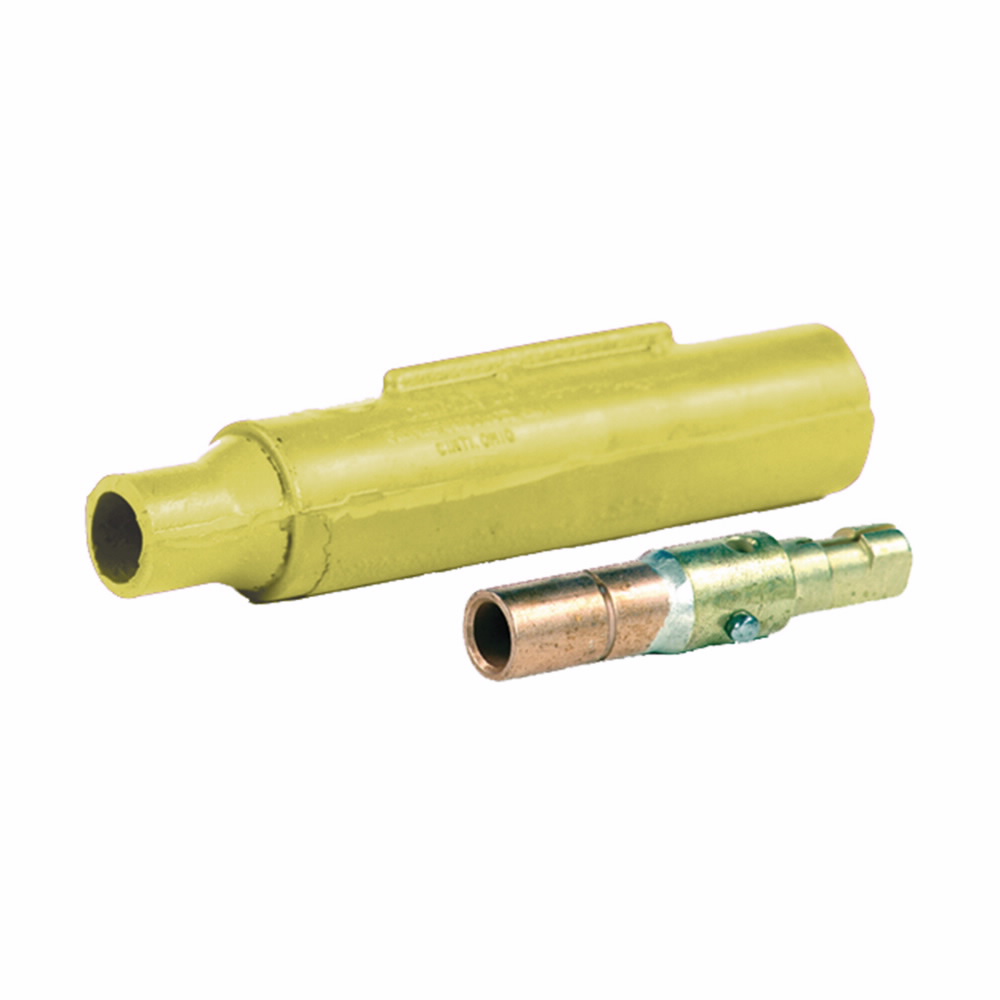

Crouse Hinds E1015-1 Vulcanized Male Plug
Part Number # E1015-1
SKU # 2343658
$146.85 / Each
Typical price:$193.84 / Each
Crouse Hinds E1015-1 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1015-1 |
| SKU #: | 2343658 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 0.88 in Dia x 4.13 in L |
| NEMA Rating: | 4, NEMA 4 |
| Series: | J Series E1015 |
| Specifications: | 1-Pole |
| Temperature Rating (Degrees F): | -40 to 180, -40 to 180 deg C |
| Type: | Vulcanized |
| Wire Size: | 8 to 4, 8 to 4 AWG |
| Color: | Black |
| Connection type: | Crimp |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | Synthetic Rubber |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275126719 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$146.85 / Each
Typical price:$193.84 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Vulcanized Male Plug, Series: J Series E1015, 600 VAC/VDC, 150 A, 8 to 4 AWG Wire, Crimp Connection, Brass Contact, Synthetic Rubber Housing Material, NEMA 4 NEMA Rating, Specifications: 1-Pole, -40 to 180 deg C, Black, 0.88 in Dia x 4.13 in L Dimensions
E1015-1 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Connecting Generators, Standby Power, Load Testing in Hospitals, Utilities and Heavy Industrial Environment ApplicationsE1015-1 Includes
A100087-1 Contact and A100092-1 InsulatorE1015-1 Item Features
- Vulcanizing permanently affixes plug insulator to cable for maximum protection against bare conductors, water, all kinds of weather, corrosion and other contaminants (requires vulcanizing kit/presses)
- Vulcanizing also reduces cable breakage by distributing flexing over a wide area for an effective strain relief system
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight neoprene insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
E1015-1 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2343658Part Number #E1015-1UNSPSC39121406UPC00662275126719
