Part Number # E1015-1607
SKU # 2310941
Image Disclaimers Message
Brand: Crouse Hinds
E1015-1607

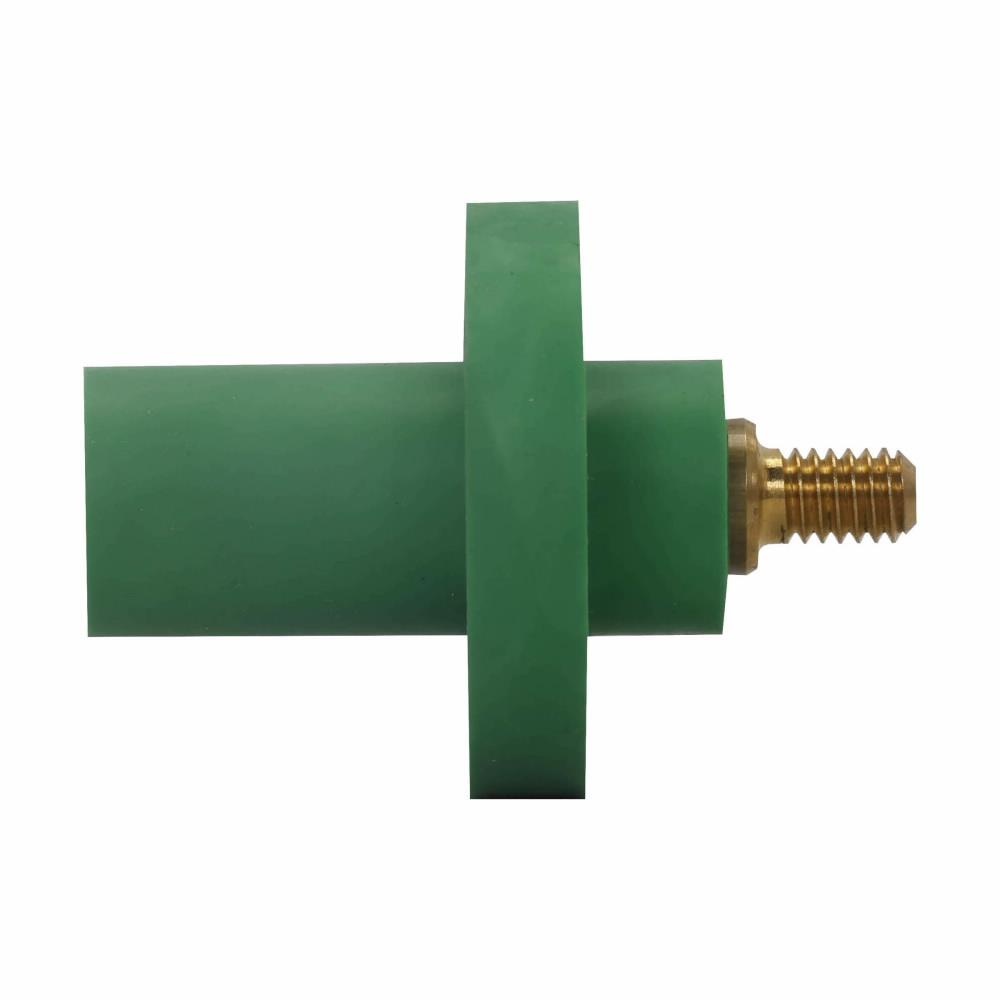

Crouse Hinds E1015-1607 Male Receptacle
Part Number # E1015-1607
SKU # 2310941
$83.55 / Each
Typical price:$110.28 / Each
Crouse Hinds E1015-1607 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1015-1607 |
| SKU #: | 2310941 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 1.88 in Dia x 2.6 in L |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1015 |
| Specifications: | 1-Contact, 3-Hole Evenly Spaced, 15 ft-lb Torque, 1.38 in Bolt Circle |
| Temperature Rating (Degrees F): | -40 to 105 |
| Type: | 1-Pole Insulated |
| Wire Size: | 8 to 4 |
| Color: | Brown |
| Connection type: | 5/16-18 Threaded Stud |
| Contact material: | Brass |
| Housing material: | Synthetic Rubber/TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275880758 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.55 / Each
Typical price:$110.28 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Male Receptacle, 1-Pole Insulated, Series: J Series E1015, 619 VAC/600 VDC, 150 A, Synthetic Rubber/TPE Housing Material, Panel Mounting, 1.88 in Dia x 2.6 in L Dimensions
E1015-1607 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Connecting Generators, Standby Power, Load Testing in Hospitals, Utilities and Heavy Industrial Environment ApplicationsE1015-1607 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Product body molded from colorfast material, color coded for easy phase identification
- Receptacles are watertight elastomeric, terminals are rubber
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1015-1607 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2310941Part Number #E1015-1607UNSPSC39121406UPC00662275880758
