Part Number # E1015-575
SKU # 2343649
E1015-575
Crouse Hinds E1015-575 Terminal
Part Number # E1015-575
SKU # 2343649
Crouse Hinds E1015-575 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1015-575 |
| SKU #: | 2343649 |
| Dimensions: | 1.38 in Dia x 1.88 in L |
| Series: | E1015 J Series, J Series E1015 |
| Type: | Angle, Angle Style |
| Wire Size: | 8 to 4, 8 to 4 AWG |
| Connection type: | Female |
| Housing material: | Synthetic Rubber |
| UNSPSC: | 39121406 |
| UPC: | 00662275127822 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

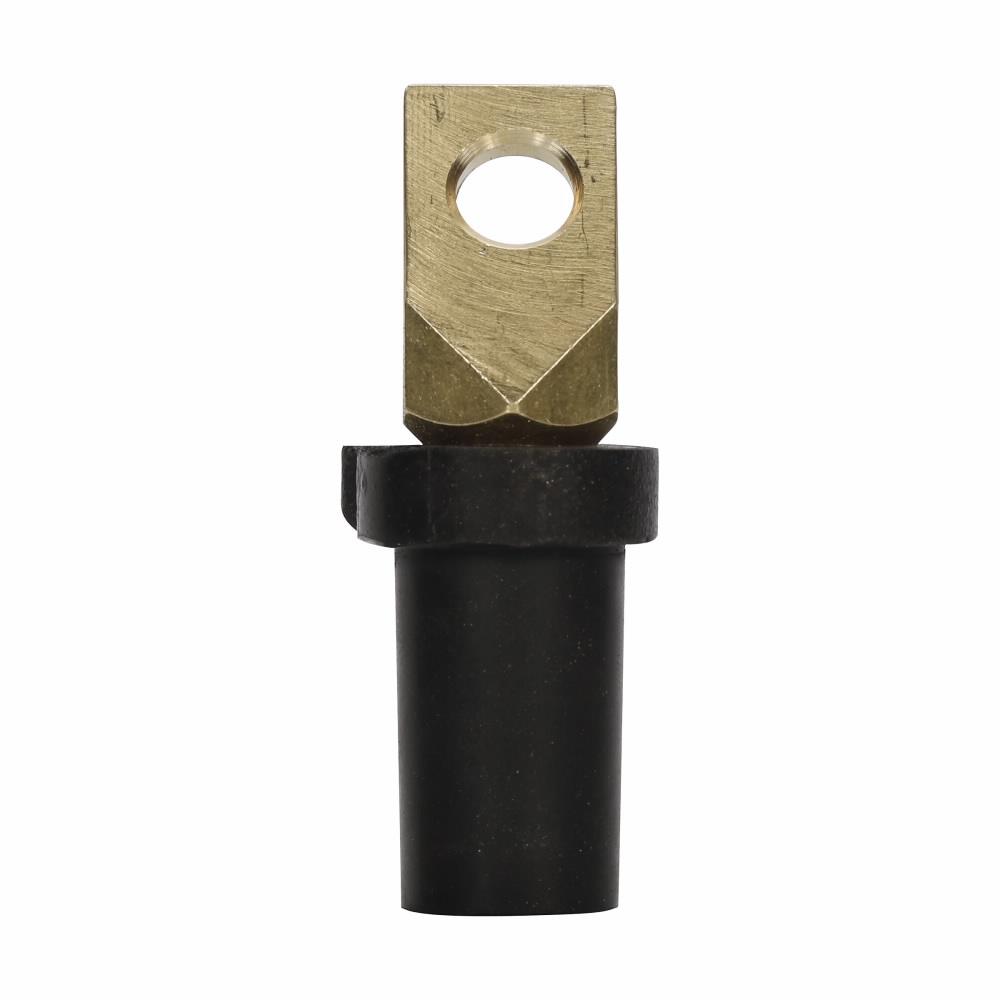

Crouse Hinds E1015-575 Terminal
Brand: Crouse Hinds
Part Number: E1015-575
EATON Crouse-Hinds Cam-Lok Terminal, Angle, Series: J Series E1015, 600 VAC/VDC, 150 A, 8 to 4 AWG Wire, Female Connection, Brass Contact, Synthetic Rubber Housing Material, NEMA 3R NEMA Rating, Panel Mounting, Specifications: 1-Pole, -40 to 105 deg C, Black, 1.38 in Dia x 1.88 in L Dimensions
Additional Description: CRHD-E1015-575 (N) E1015 F TERM ANGLE NO 8 TO NO 4 BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1015 terminal connector, Up to 150A continuous, #8-#4 AWG, Black, Female, Rubber, Angle, 600 Vac/dc
E1015-575 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Welding Equipment, Power Distribution Panels, Patch Panels and Heat TreatingE1015-575 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Product body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
E1015-575 Standards
CSA C22.2 1691-12|CSA C22.2 182.3 LR13963|UL 1691SKU #2343649Part Number #E1015-575UNSPSC39121406UPC00662275127822
Image provided may only be a representation of final product and may include optional equipment
