Crouse Hinds E1015-8314 Non-Vulcanized Male Plug
Part Number # E1015-8314
SKU # 2379197
Crouse Hinds E1015-8314 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1015-8314 |
| SKU #: | 2379197 |
| Dimensions: | 0.86 in Dia x 4.61 in L |
| Series: | J Series E1015 |
| Specifications: | 1-Contact |
| Wire Size: | 8 to 4 AWG |
| Housing material: | Neoprene/TPE |
| UNSPSC: | 39121406 |
| UPC: | 00662275863850 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1015-8314 Non-Vulcanized Male Plug
Brand: Crouse Hinds
Part Number: E1015-8314
EATON Crouse-Hinds Cam-Lok Non-Vulcanized Male Plug, 1-Pole, Series: J Series E1015, 600 VAC/VDC, 150 A, 8 to 4 AWG Wire, Setscrew Connection, Brass Contact, Neoprene/TPE Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Contact, -40 to 105 deg C, Brown, 0.86 in Dia x 4.61 in L Dimensions
Additional Description: CRHD-E1015-8314 (N) E1015 M P NV SSS NO 8 TO NO 4 BR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1015 plug, Up to 150A continuous, #8-#4 AWG, Brown, Set screw, Brass contacts, Male, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
E1015-8314 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power Generators and Motor ApplicationsE1015-8314 Includes
A100869-15 Insulator and A100864-1 ContactE1015-8314 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
E1015-8314 Standards
UL 498/E67181|CSA C22.2 182.3-M1987/LR13963SKU #2379197Part Number #E1015-8314UNSPSC39121406UPC00662275863850

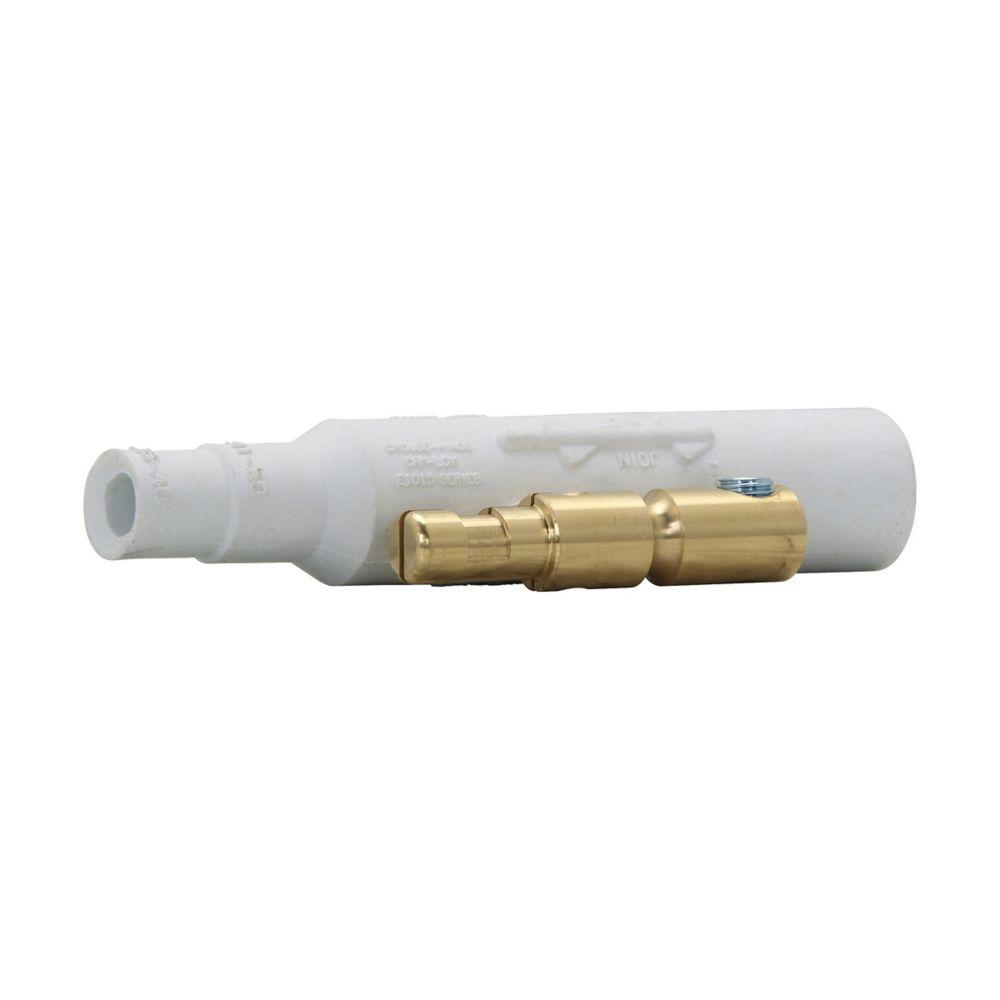

Image provided may only be a representation of final product and may include optional equipment
