Part Number # E1016-1600
SKU # 20602
E1016-1600

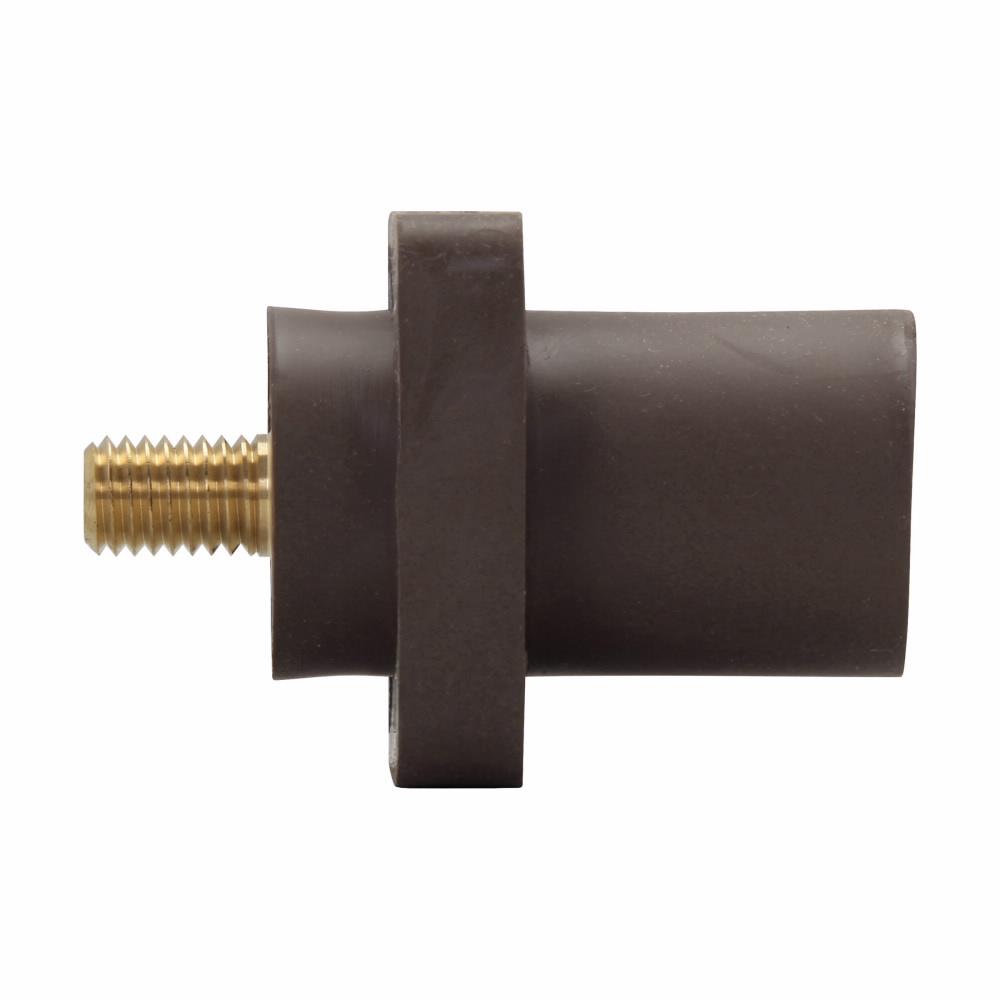

Crouse Hinds E1016-1600 Male Receptacle
Part Number # E1016-1600
SKU # 20602
Crouse Hinds E1016-1600 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-1600 |
| SKU #: | 20602 |
| Dimensions: | 3.31 in W |
| Series: | J Series E1016 |
| Specifications: | 1-Contact, 40 ft-lb Torque |
| Type: | 1-Pole Insulated |
| Wire Size: | 6 AWG to 250 kcmil |
| Connection type: | 3/4 in Threaded Stud |
| UNSPSC: | 39121406 |
| UPC: | 00662275128201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1016-1600 Male Receptacle
Brand: Crouse Hinds
Part Number: E1016-1600
Crouse-Hinds Cam-Lok Male Receptacle, 1-Pole Insulated, Series: J Series E1016, 600 VAC/VDC, 400 A, 6 AWG to 250 kcmil Wire, 3/4 in Threaded Stud Connection, Brass Contact, TPE Housing Material, NEMA 4 Rating, Panel Mounting, Specifications: 1-Contact, 40 ft-lb Torque, -40 to 105 deg C, Black, 3.31 in W Dimensions
Additional Description: CRHD-E1016-1600 (N) E1016 M R THRD STUD 3/4IN BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1016 insulated receptacle, Up to 400A continuous, #6 AWG-250 kcmil, Black, Male, Thermoplastic elastomer (TPE), 3/4", Threaded stud, 600 Vac/dc
E1016-1600 Application
Welding Equipment, Power Distribution Panels, Patch Panels and Heat Treating ApplicationsE1016-1600 Item Features
- Double cam principle provides a positive vibrationproof connection
- Self compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electro-mechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb per sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1016-1600 Standards
CSA C22.2 No. 182.3-M1987 File No. LR13963|UL 498|UL File No. E67181SKU #20602Part Number #E1016-1600UNSPSC39121406UPC00662275128201
Image provided may only be a representation of final product and may include optional equipment
