E1016-1632ST

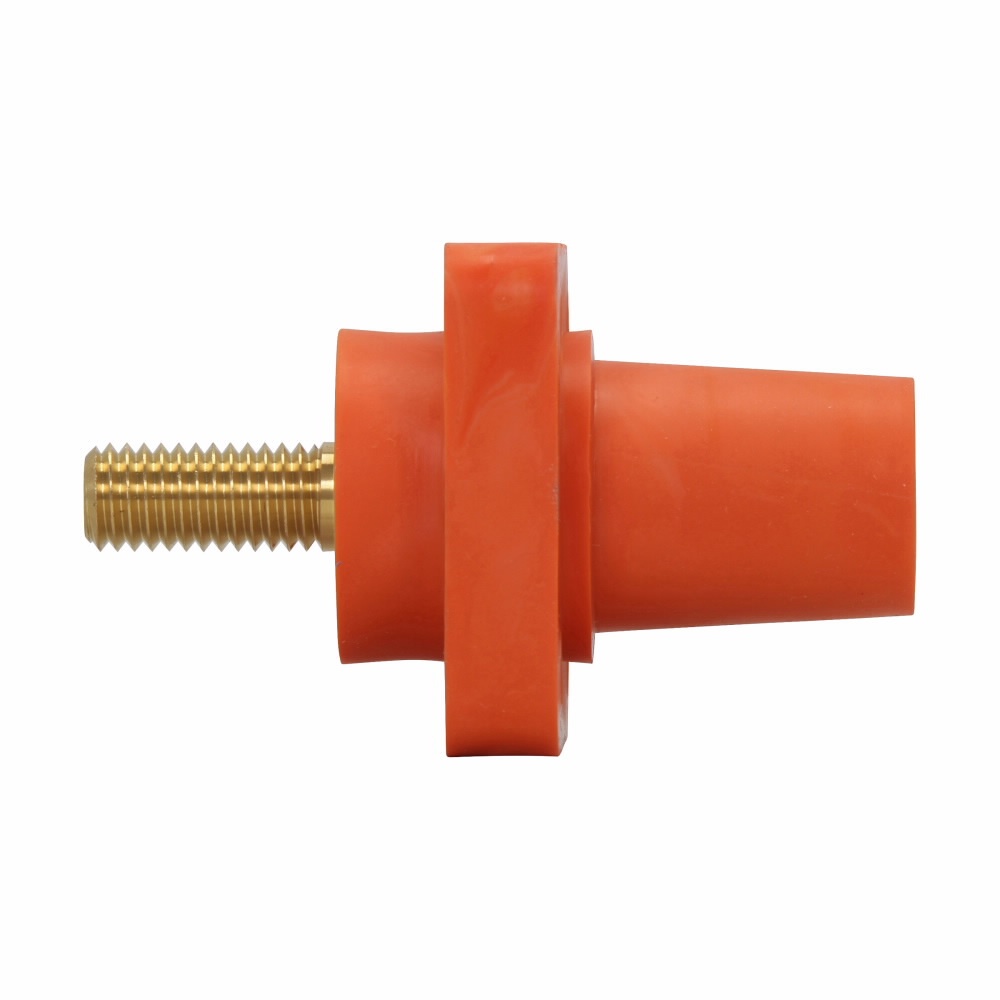

Crouse Hinds E1016-1632ST Female Receptacle
Part Number # E1016-1632ST
SKU # 2292194
$79.65 / Each
Typical price:$105.14 / Each
Crouse Hinds E1016-1632ST Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-1632ST |
| SKU #: | 2292194 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 3.69 in W |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1016 |
| Specifications: | 1-Contact |
| Temperature Rating (Degrees F): | -40 to 105 |
| Type: | 1-Pole Insulated |
| Wire Size: | 6 AWG to 250 kcmil |
| Connection type: | 1-1/8 in Threaded Stud |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275999221 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.65 / Each
Typical price:$105.14 / Each
Quantity:
- Crouse-Hinds Cam-Lok Female Receptacle, 1-Pole Insulated, Series: J Series E1016, 600 VAC/VDC, 400 A, TPE Housing Material, Panel Mounting, Yellow, 3.69 in W Dimensions
E1016-1632ST Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motors, Generators, Indoor/Outdoor Lighting Distribution Panels ApplicationsE1016-1632ST Item Features
- Double cam principle provides a positive vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1016-1632ST Standards
CSA C22.2 182.3-M1987 File No. LR13963|UL 498 File No. E67181SKU #2292194Part Number #E1016-1632STUNSPSC39121406UPC00662275999221
