E1016-1635ST

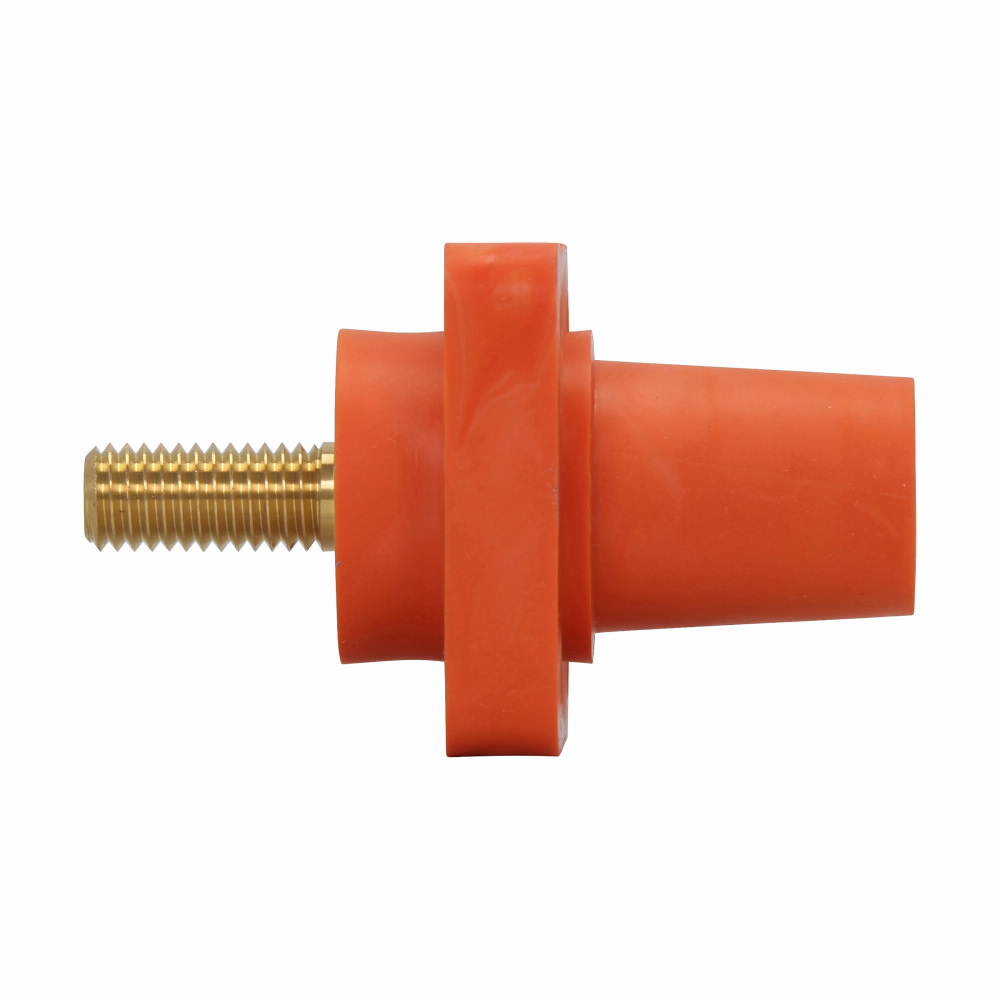

Crouse Hinds E1016-1635ST Cam-Lok Female Receptacle
Part Number # E1016-1635ST
SKU # 1984846
$79.65 / Each
Typical price:$105.14 / Each
Crouse Hinds E1016-1635ST Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-1635ST |
| SKU #: | 1984846 |
| Amperage Rating: | 400 A |
| Dimensions: | 3.69 in L x 2.25 in W x 2.25 in H |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1016 |
| Specifications: | 1-Contact |
| Temperature Rating (Degrees F): | -40 to 105 deg C |
| Type: | 1-Pole Insulated |
| Wire Size: | 6 AWG to 250 kcmil |
| Color: | Green |
| Connection type: | 1-1/8 in Threaded Stud |
| Contact material: | Brass |
| Housing material: | TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00066227512866 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.65 / Each
Typical price:$105.14 / Each
Quantity:
- Crouse-Hinds Cam-Lok Female Receptacle, 1-Pole Insulated, Series: J Series E1016, 600 V AC/DC, 400 A, 6 AWG to 250 kcmil Wire, 1-1/8 in Threaded Stud, Brass Contact, TPE Housing, NEMA 3R, Panel Mount, 1-Contact, -40 to 105 deg C, Green, 3.69 in L x 2.25 in W x 2.25 in H
E1016-1635ST Application
Quick Disconnect Power Systems, Indoor and Outdoor ApplicationsE1016-1635ST Item Features
- Double cam principle provides a positive, vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electro-mechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb per sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color-coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1016-1635ST Standards
CSA C22.80 C22.2 No. 182.3-M1987 File No. LR13963|UL 498 UL File No. E67181SKU #1984846Part Number #E1016-1635STUNSPSC39121406UPC00066227512866
