Brand: Crouse Hinds
E1016-1701

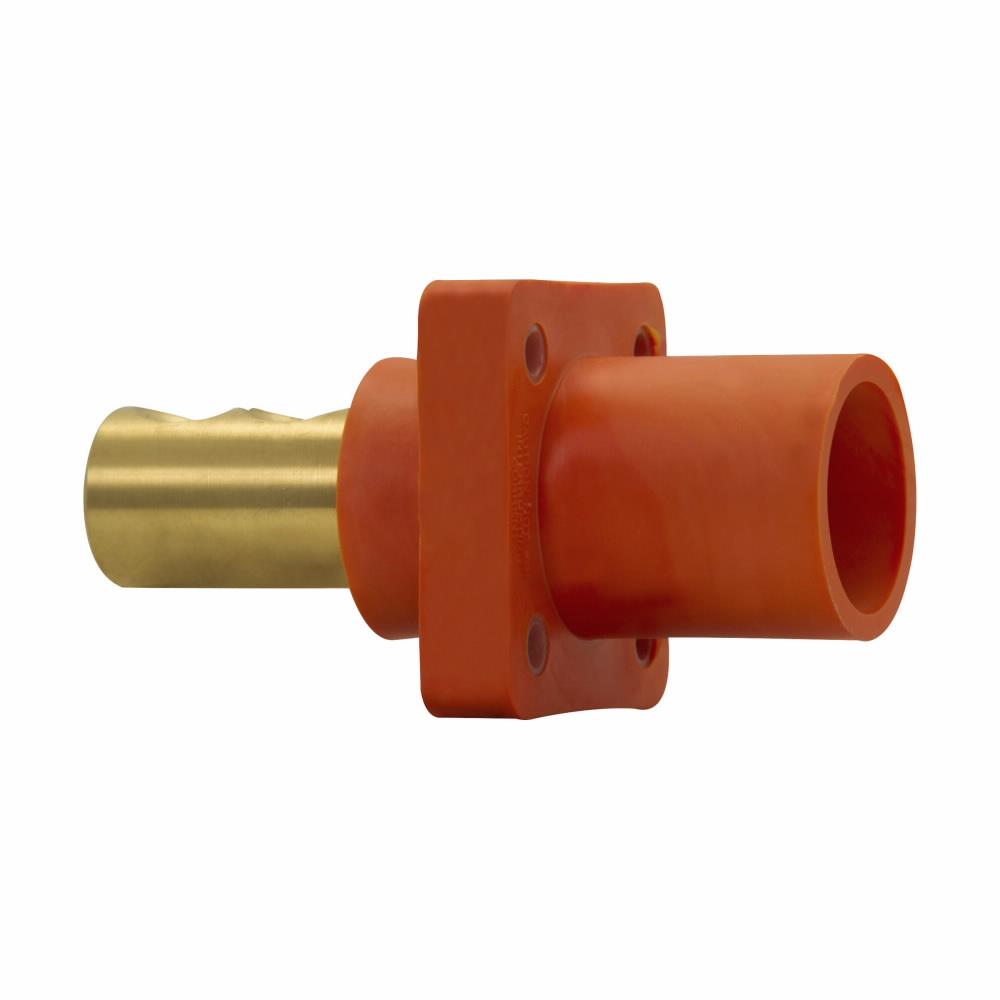

Crouse Hinds E1016-1701 Male Receptacle
Part Number # E1016-1701
SKU # 2268678
$100.68 / Each
Typical price:$132.90 / Each
Crouse Hinds E1016-1701 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-1701 |
| SKU #: | 2268678 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 4-1/4 in L x 2-1/4 in W x 2-1/4 in H |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1016 |
| Specifications: | 1-Contact |
| Temperature Rating (Degrees F): | -40 to 105 |
| Type: | 1-Pole Insulated |
| Wire Size: | 2 to 4/0 |
| Color: | Yellow |
| Connection type: | Double Set Screw |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275128843 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$100.68 / Each
Typical price:$132.90 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Male Receptacle, 1-Pole Insulated, Series: J Series E1016, 600 VAC/VDC, 400 A, TPE Housing Material, Panel Mounting, 4-1/4 in L x 2-1/4 in W x 2-1/4 in H Dimensions
E1016-1701 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems, Indoor and Outdoor ApplicationsE1016-1701 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1016-1701 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2268678Part Number #E1016-1701UNSPSC39121406UPC00662275128843
