Part Number # E1016-1701BB
SKU # 2450565

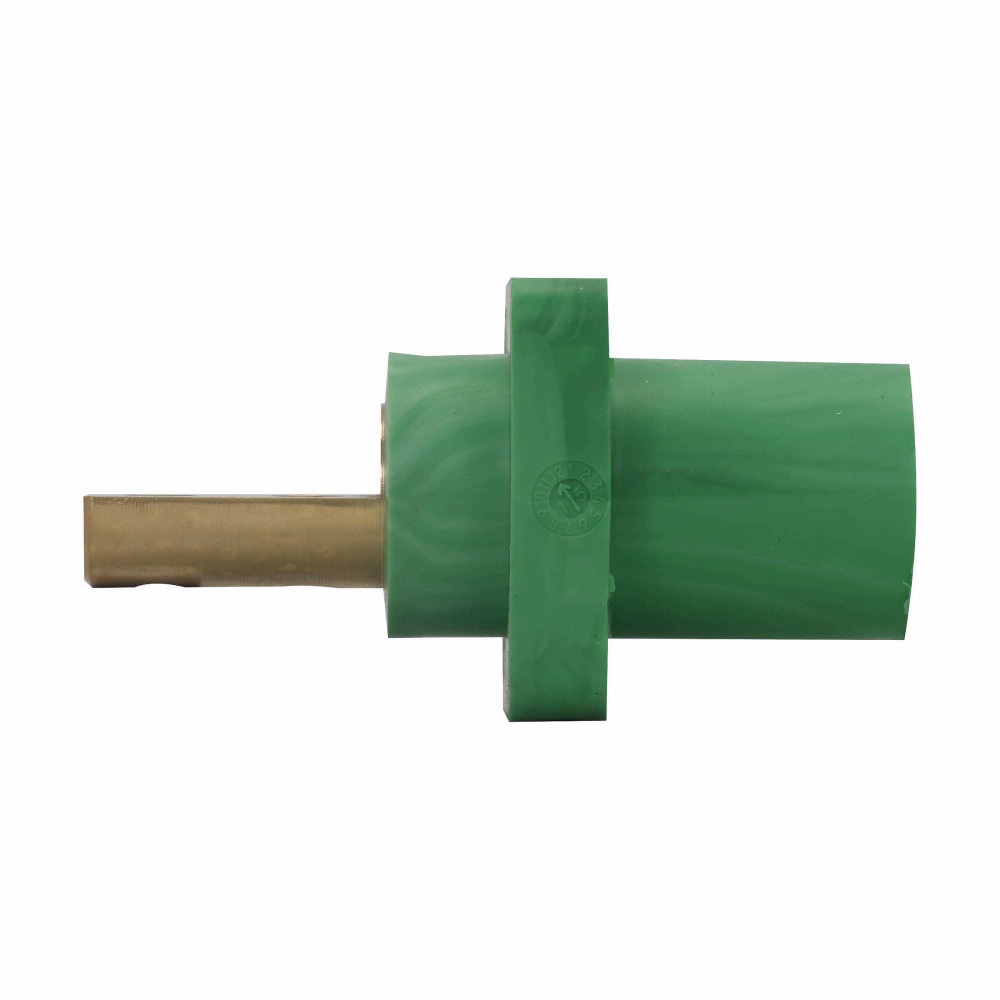

Image Disclaimers Message
E1016-1701BB
Crouse Hinds E1016-1701BB
Part Number # E1016-1701BB
SKU # 2450565
Crouse Hinds E1016-1701BB Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-1701BB |
| SKU #: | 2450565 |
| Amperage Rating: | 400 A |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1016 |
| Specifications: | 1-Pole |
| Temperature Rating (Degrees F): | -40 to 105 deg C |
| Type: | Insulated |
| Wire Size: | 4/0 to 2 AWG |
| Color: | Yellow |
| Connection type: | Double Hole Busbar |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00066227592545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1016-1701BB
Brand: Crouse Hinds
Part Number: E1016-1701BB
Crouse-Hinds Cam-Lok™ Male Receptacle, Insulated, Series: J Series E1016, 600 VAC/VDC, 400 A, 4/0 to 2 AWG Wire, Double Hole Busbar, Brass Contact, TPE Housing, NEMA 3R, Panel Mount, 1-Pole, -40 to 105 deg C, Yellow
Additional Description: CRHD-E1016-1701BB (N) RECEPTACLE MALE 600VAC/VDC 400A NEMA 3R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1016 insulated receptacle, Up to 400A continuous, #2-4/0 AWG, Yellow, Male, Thermoplastic elastomer (TPE), Double hole bus bar, 600 Vac/dc
E1016-1701BB Application
Welding Equipment, Power Distribution Panels, Patch Panels and Heat TreatingE1016-1701BB Item Features
- Double cam principle provides a positive, vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electro-mechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb per sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1016-1701BB Standards
BAA Compliant|CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2450565Part Number #E1016-1701BBUNSPSC39121406UPC00066227592545
