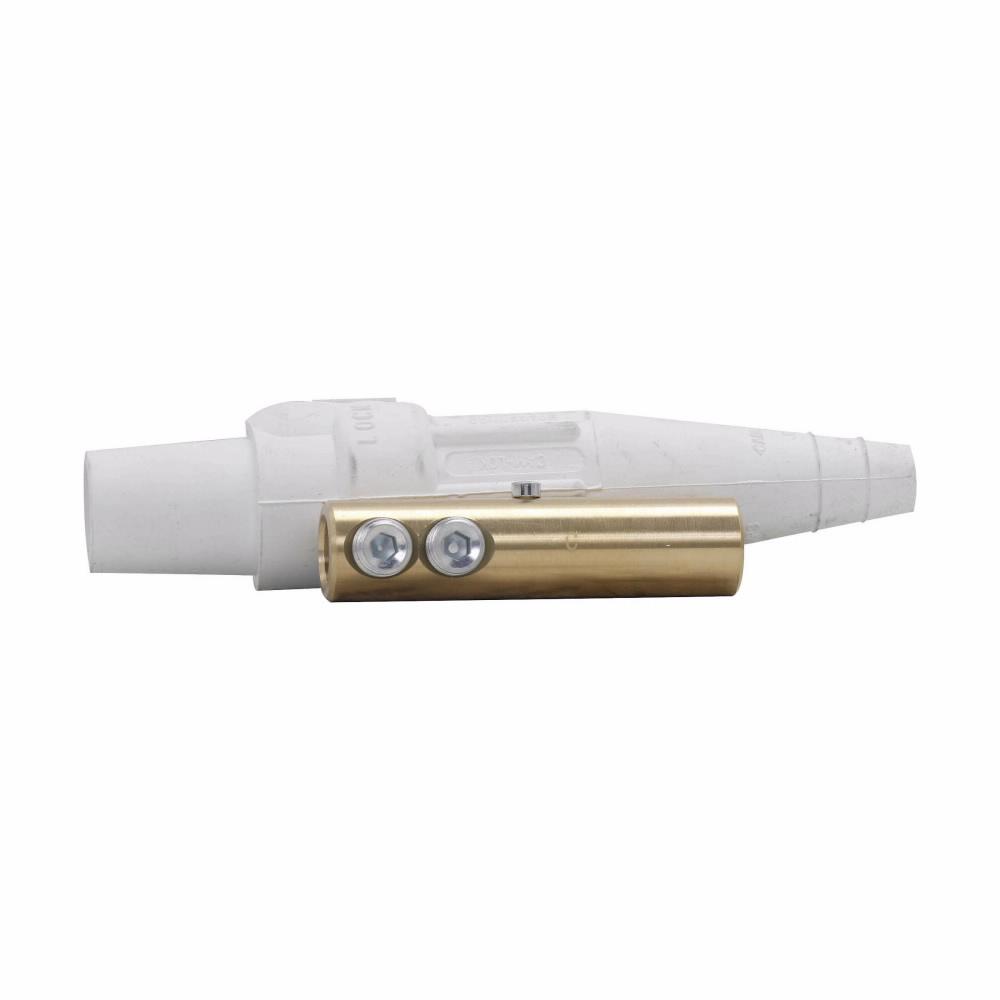

Crouse Hinds E1016-8375 Non-Vulcanized Female Plug
Part Number # E1016-8375
SKU # 312679
E1016-8375
Crouse Hinds E1016-8375 Non-Vulcanized Female Plug
Part Number # E1016-8375
SKU # 312679
Crouse Hinds E1016-8375 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1016-8375 |
| SKU #: | 312679 |
| UNSPSC: | 39121406 |
| UPC: | 00662275131799 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1016-8375 Non-Vulcanized Female Plug
Brand: Crouse Hinds
Part Number: E1016-8375
EATON Crouse-Hinds Cam-Lok Non-Vulcanized Female Plug, 1-Pole, Series: J Series E1016, 600 VAC/VDC, 300 A, 2 to 2/0 AWG Wire, Double Setscrew Connection, Brass Contact, TPE Housing Material, NEMA 3R NEMA Rating, -40 to 105 deg C, Black, 1.5 in Dia x 7.18 in L Dimensions
Additional Description: CRHD-E1016-8375 (N) E1016 F P NV DSS NO 2 TO 2/0 BK NON-CANCELLABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 300A continuous, #2-2/0 AWG, Black, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
E1016-8375 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Motors and GeneratorsE1016-8375 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to provide a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E1016-8375 Standards
CSA C22.2 #1691-12/182.3 LR13963|UL 1691SKU #312679Part Number #E1016-8375UNSPSC39121406UPC00662275131799
Image provided may only be a representation of final product and may include optional equipment
