Brand: Crouse Hinds
E1017-1625

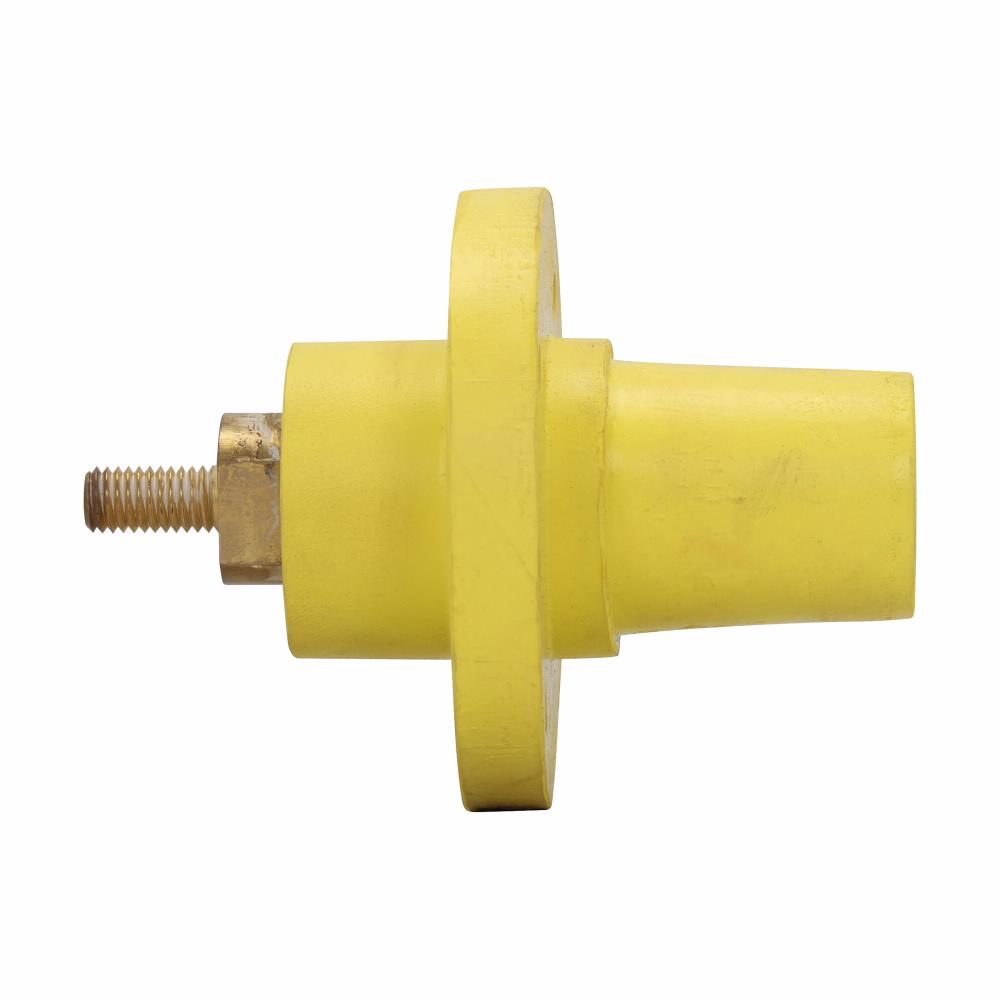

Crouse Hinds E1017-1625 Female Receptacle
Part Number # E1017-1625
SKU # 20659
$494.74 / Each
Typical price:$653.06 / Each
Crouse Hinds E1017-1625 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1017-1625 |
| SKU #: | 20659 |
| Amperage Rating: | 690, 690 A |
| Dimensions: | 5.88 in W |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1017 |
| Specifications: | 1-Contact, 40 ft-lb Torque |
| Temperature Rating (Degrees F): | -40 to 105 |
| Type: | 1-Pole 90 deg |
| Wire Size: | 350 to 750 |
| Color: | Black |
| Connection type: | 1/2-13 Threaded Stud |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | Rubber |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275132734 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$494.74 / Each
Typical price:$653.06 / Each
Quantity:
- Crouse-Hinds Cam-Lok Female Receptacle, 1-Pole 90 deg, Series: J Series E1017, 600 VAC/VDC, 690 A, Rubber Housing Material, Panel Mounting, Black, 5.88 in W Dimensions
E1017-1625 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Welding Equipment, Power Distribution Panels, Patch Panels and Heat Treating ApplicationsE1017-1625 Item Features
- Double cam principle provides a positive vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight rubber body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
- Accepts a wide-range of cable sizes
E1017-1625 Standards
CSA C22.2 182.3-M1987 File No. LR13963|UL 498 File No. E67181SKU #20659Part Number #E1017-1625UNSPSC39121406UPC00662275132734
