E1017-357

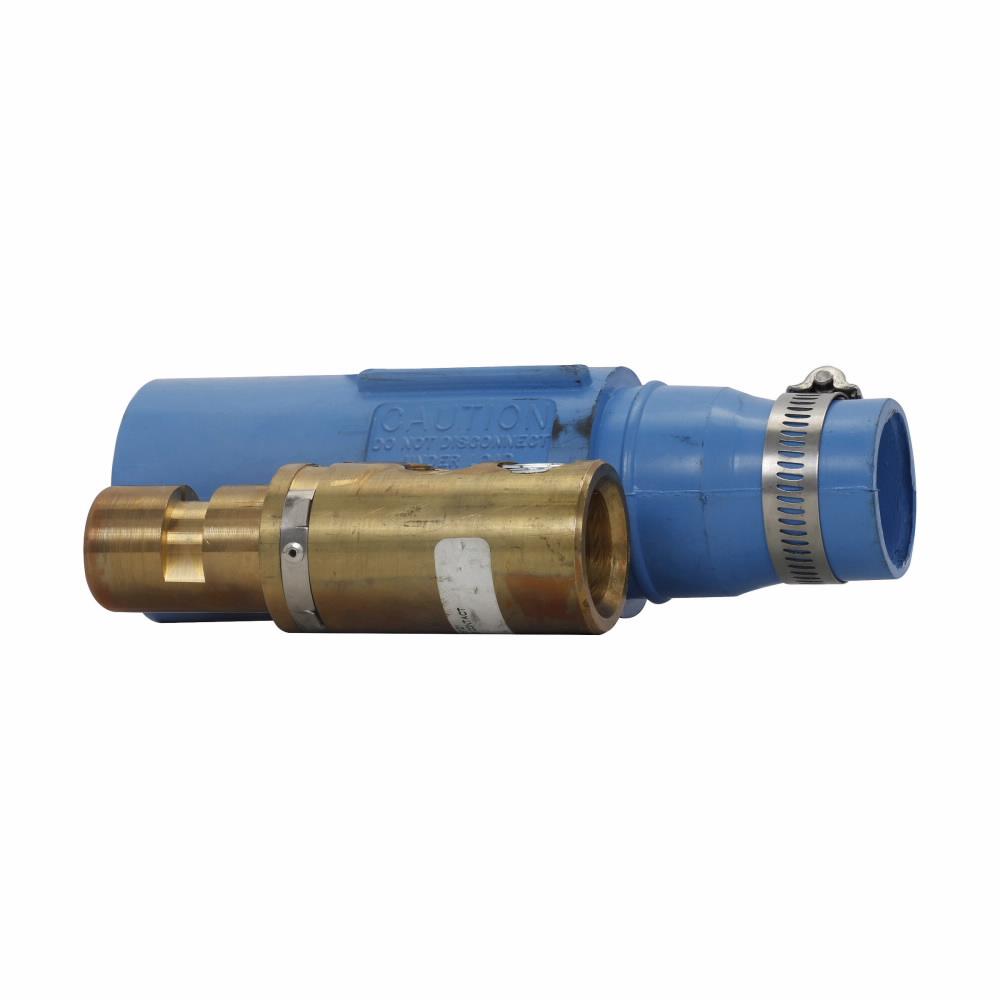

Crouse Hinds E1017-357 Cam-Lok Non-Vulcanized Male Plug
Part Number # E1017-357
SKU # 2424132
$398.52 / Each
Typical price:$526.04 / Each
Crouse Hinds E1017-357 Key Features
Brand: Crouse Hinds
Part Number # E1017-357
SKU #2424132
Amperage Rating: 545 A
Dimensions: 2.69 in Dia x 7 in L
NEMA Rating: NEMA 3R/4
Series: J Series E1017
Specifications: 1-Contact
Temperature Rating (Degrees F): -40 to 105 deg C
Type: 1-Pole
Wire Size: 350 to 500 kcmil
Color: Brown
Connection type: Double Setscrew
Contact material: Brass
Country of origin: US
Housing material: Neoprene Rubber
Manufacturer Name: Eaton
UNSPSC: 39121406
UPC: 00066227513302
$398.52 / Each
Typical price:$526.04 / Each
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Male Plug, 1-Pole, Series: J Series E1017, 600 VAC/VDC, 545 A, 350 to 500 kcmil Wire, Double Setscrew Connection, Brass Contact, Neoprene Rubber Housing Material, NEMA 3R/4 NEMA Rating, Specifications: 1-Contact, -40 to 105 deg C, Brown, 2.69 in Dia x 7 in L Dimensions
E1017-357 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power Generators and Motor ApplicationsE1017-357 Includes
A200056-42 Insulator and A200612-1 ContactE1017-357 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight rubber insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E1017-357 Standards
UL 498/E67181|CSA C22.2 182.3-M1987/LR13963SKU #2424132Part Number #E1017-357UNSPSC39121406UPC00066227513302
