E1017-375

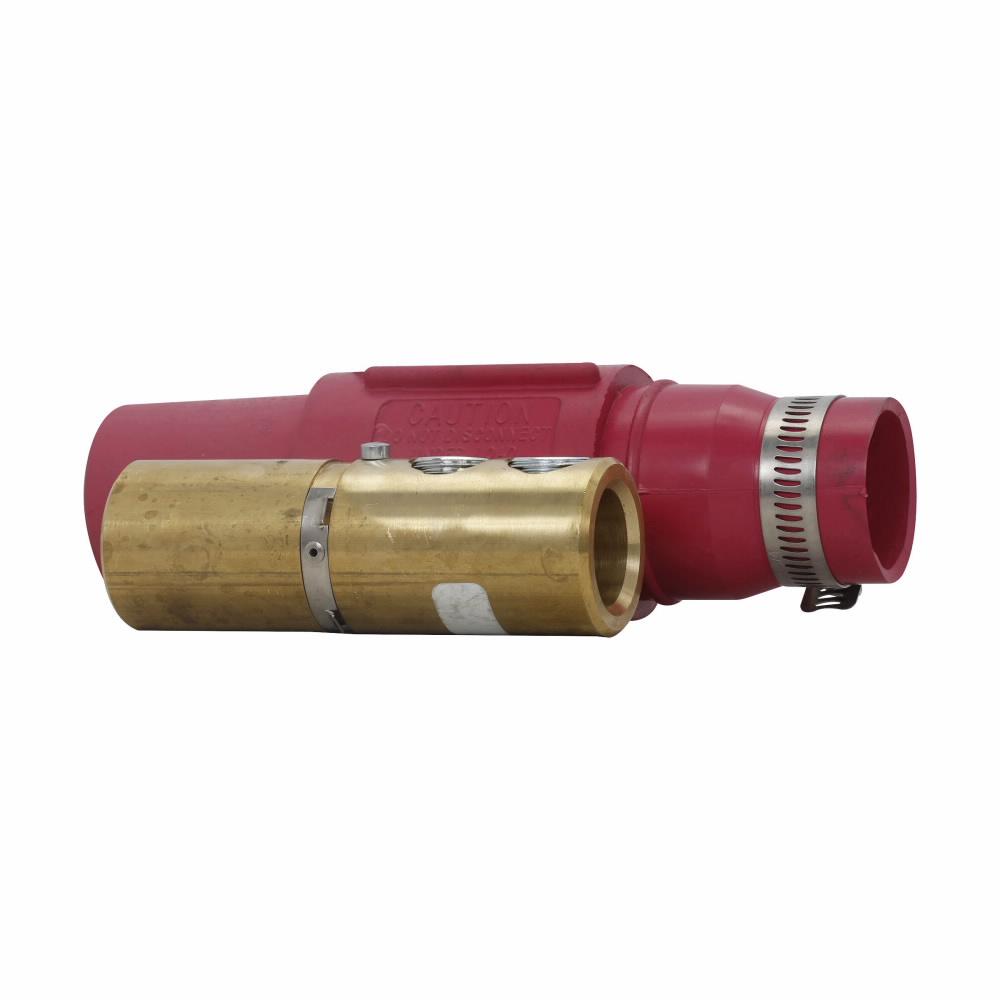

Crouse Hinds E1017-375 Non-Vulcanized Female Plug
Part Number # E1017-375
SKU # 1380714
$398.52 / Each
Typical price:$526.04 / Each
Crouse Hinds E1017-375 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1017-375 |
| SKU #: | 1380714 |
| Amperage Rating: | 545 A |
| Dimensions: | 2.69 in Dia x 7.38 in L |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1017 |
| Temperature Rating (Degrees F): | -40 to 105 deg C |
| Type: | 1-Pole |
| Wire Size: | 350 to 500 kcmil |
| Color: | Brown |
| Connection type: | Double Setscrew |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | Rubber |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275133045 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$398.52 / Each
Typical price:$526.04 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Female Plug, 1-Pole, Series: J Series E1017, 600 VAC/VDC, 545 A, 350 to 500 kcmil Wire, Double Setscrew Connection, Brass Contact, Rubber Housing Material, NEMA 3R NEMA Rating, -40 to 105 deg C, Brown, 2.69 in Dia x 7.38 in L Dimensions
E1017-375 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems Indoor, OutdoorE1017-375 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to provide a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E1017-375 Standards
CSA C22.2 #1691-12/182.3 LR13963|UL 1691SKU #1380714Part Number #E1017-375UNSPSC39121406UPC00662275133045
