Part Number # E1017-56
SKU # 2286652
E1017-56
Crouse Hinds E1017-56 Vulcanized Female Plug
Part Number # E1017-56
SKU # 2286652
Crouse Hinds E1017-56 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1017-56 |
| SKU #: | 2286652 |
| Amperage Rating: | 545, 545 A |
| Dimensions: | 2.69 in Dia x 7.38 in L |
| Series: | J Series E1017 |
| Type: | Vulcanized |
| Wire Size: | 500, 500 kcmil |
| Connection type: | Crimp |
| Housing material: | Rubber |
| UNSPSC: | 39121406 |
| UPC: | 00662275133182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1017-56 Vulcanized Female Plug
Brand: Crouse Hinds
Part Number: E1017-56
EATON Crouse-Hinds Cam-Lok Vulcanized Female Plug, Series: J Series E1017, 600 VAC/VDC, 545 A, 500 kcmil Wire, Crimp Connection, Brass Contact, Rubber Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, -40 to 105 deg C, Black, 2.69 in Dia x 7.38 in L Dimensions
Additional Description: CRHD-E1017-56 (N) E1017 F P VL CRMP 500MCM BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E1017 plug, Up to 545A continuous, 500 kcmil, Black, Crimp, Brass contacts, Female, Rubber, Vulcanized, 600 Vac/dc
E1017-56 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Motors and GeneratorsE1017-56 Includes
A200027-6 Contact and A200040-1 InsulatorE1017-56 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight rubber insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E1017-56 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2286652Part Number #E1017-56UNSPSC39121406UPC00662275133182

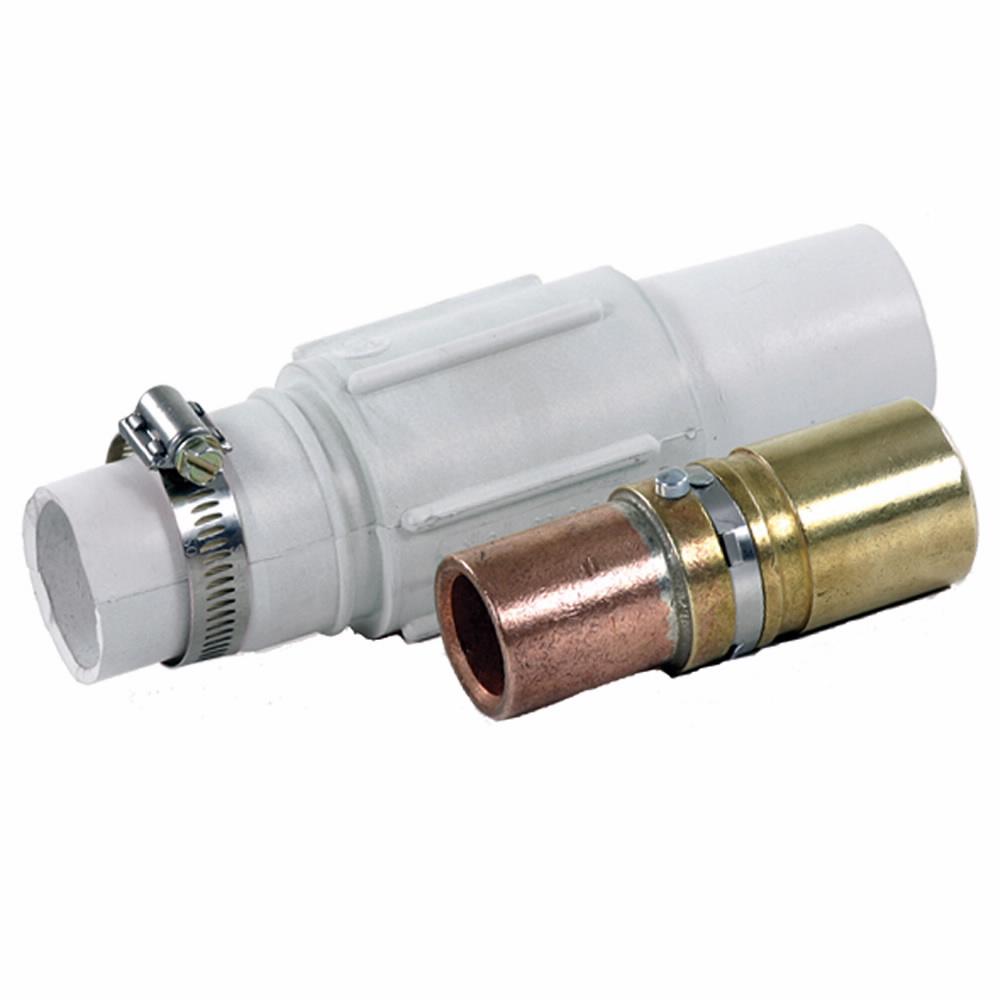

Image provided may only be a representation of final product and may include optional equipment
