Part Number # E1017-576
SKU # 2324249
Image Disclaimers Message
Brand: Crouse Hinds
E1017-576

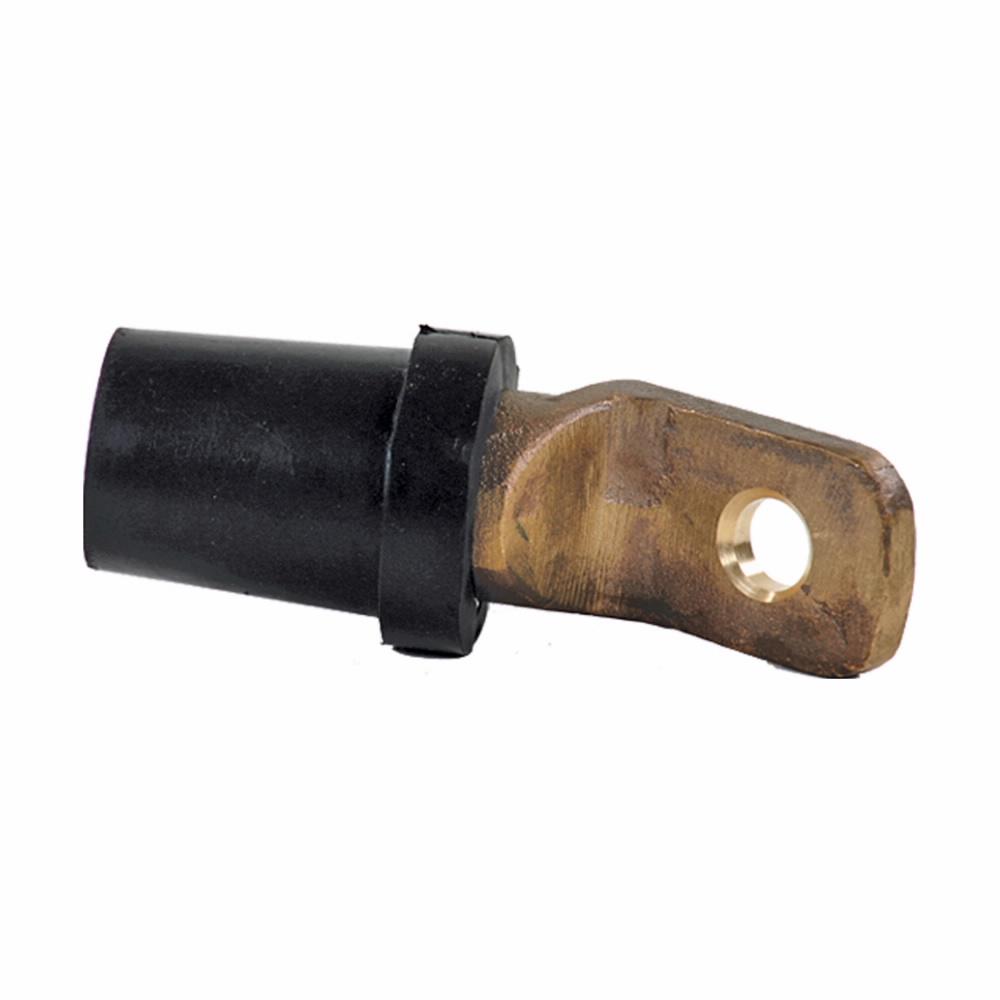

Crouse Hinds E1017-576 Terminal Connector
Part Number # E1017-576
SKU # 2324249
$494.74 / Each
Typical price:$653.06 / Each
Crouse Hinds E1017-576 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1017-576 |
| SKU #: | 2324249 |
| Amperage Rating: | 690, 690 A |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E1017 |
| Temperature Rating (Degrees F): | -40 to 105, -40 to 105 deg C |
| Type: | 1-Pole Angle, 1-Pole Angle Style |
| Wire Size: | 350 to 750, 350 to 750 kcmil |
| Color: | Yellow |
| Connection type: | Female |
| Contact material: | Brass |
| Housing material: | Rubber |
| Mounting type: | Recess, Recessed |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275957047 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$494.74 / Each
Typical price:$653.06 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Terminal Connector, 1-Pole Angle, Series: J Series E1017, 600 VAC/VDC, 690 A, 350 to 750 kcmil Wire, Female Connection, Brass Contact, Rubber Housing Material, NEMA 3R NEMA Rating, Recess Mounting, -40 to 105 deg C, Yellow
E1017-576 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Entertainment, Generators, Motors, Portable Power and Power Distribution ApplicationsE1017-576 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight rubber body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
E1017-576 Standards
UL 498/E67181|CSA C22.2 182.3-M1987|CSA LR13963SKU #2324249Part Number #E1017-576UNSPSC39121406UPC00662275957047
