Part Number # E1017-579
SKU # 2324258
E1017-579

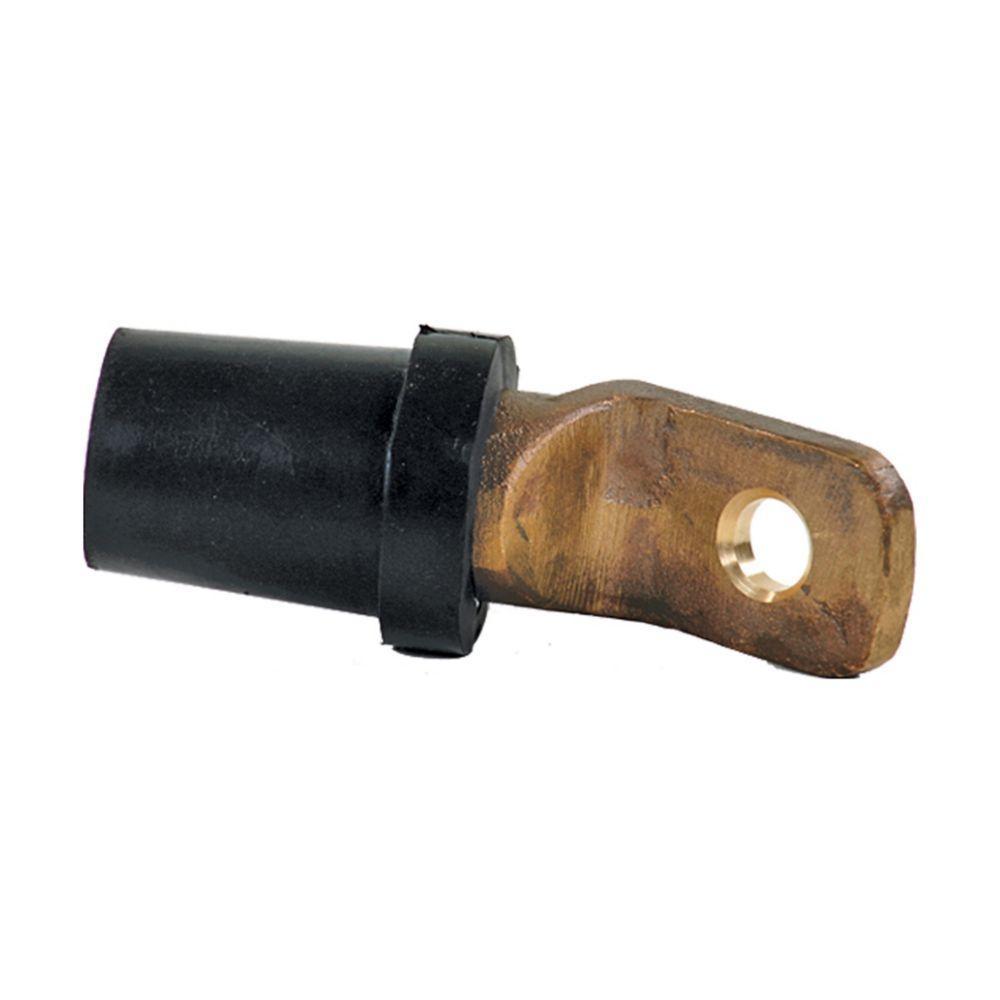

Crouse Hinds E1017-579 Terminal Connector
Part Number # E1017-579
SKU # 2324258
$524.42 / Each
Typical price:$692.24 / Each
Crouse Hinds E1017-579 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1017-579 |
| SKU #: | 2324258 |
| UNSPSC: | 39121406 |
| UPC: | 00662275957078 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$524.42 / Each
Typical price:$692.24 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Terminal Connector, 1-Pole Angle, Series: J Series E1017, 600 VAC/VDC, 690 A, 350 to 750 kcmil Wire, Female Connection, Brass Contact, Rubber Housing Material, NEMA 3R NEMA Rating, Recess Mounting, -40 to 105 deg C, Green
E1017-579 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Entertainment, Generators, Motors, Portable Power and Power Distribution ApplicationsE1017-579 Item Features
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight rubber body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
E1017-579 Standards
UL 498/E67181|CSA C22.2 182.3-M1987|CSA LR13963SKU #2324258Part Number #E1017-579UNSPSC39121406UPC00662275957078
Image provided may only be a representation of final product and may include optional equipment
