Part Number # E1018-1600S
SKU # 2267678

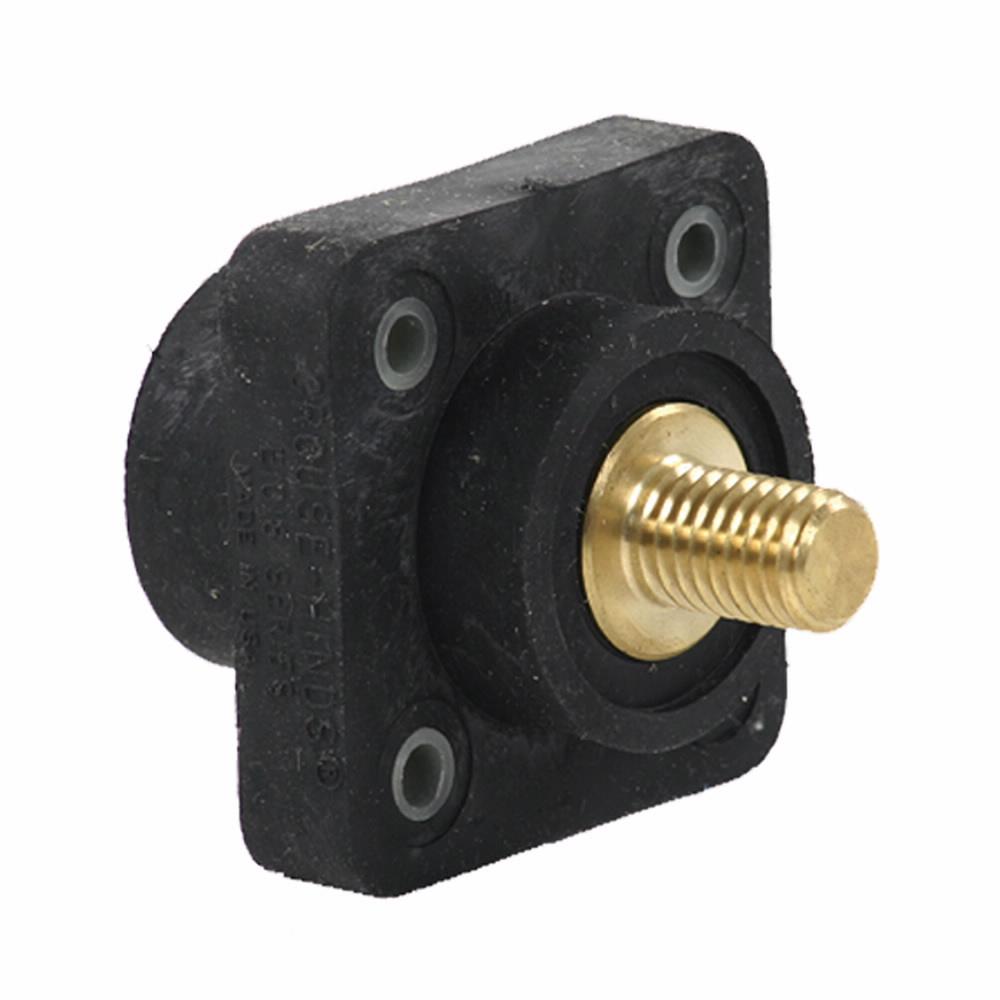

Image provided may only be a representation of
final product and may include optional equipment
E1018-1600S
Crouse Hinds E1018-1600S Male Receptacle
Part Number # E1018-1600S
SKU # 2267678
Crouse Hinds E1018-1600S Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E1018-1600S |
| SKU #: | 2267678 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 1.5 in Dia x 2.94 in L |
| NEMA Rating: | NEMA 3R |
| Series: | E1018, J Series E1018 |
| Specifications: | 1-Pole |
| Temperature Rating (Degrees F): | -40 to 105 |
| Type: | 1-Pole Insulated Standard, Insulated |
| Wire Size: | 4/0 to 2 |
| Connection type: | 1-1/8 in Threaded Stud |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275133397 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E1018-1600S Male Receptacle
Brand: Crouse Hinds
Part Number: E1018-1600S
Crouse-Hinds Cam-Lok Male Receptacle, 1-Pole Insulated Standard, Series: J Series E1018, 600 VAC/VDC, 400 A, TPE Housing Material, Panel Mounting, Black, 1.5 in Dia x 2.94 in L Dimensions
Additional Description: CRHD-E1018-1600S (N) E1018 M R THRD STUD 1 1/8IN BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok Standard Series E1018 insulated receptacle, Up to 400A continuous, #2-4/0 AWG, Black, Male, Thermoplastic elastomer (TPE), 1-1/8", Threaded stud, 600 Vac/dc
E1018-1600S Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Power Distribution, Motors, Generators and Entertainment ApplicationsE1018-1600S Item Features
- Double cam principle provides a positive vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric body molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
E1018-1600S Standards
CSA C22.2 182.3-M1987 File No. LR13963SKU #2267678Part Number #E1018-1600SUNSPSC39121406UPC00662275133397
