Part Number # EABL36
SKU # 2280845
EABL36
Crouse Hinds EABL36 Conduit Outlet Box
Part Number # EABL36
SKU # 2280845
Crouse Hinds EABL36 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EABL36 |
| SKU #: | 2280845 |
| Cover Opening Size: | 3, 3 in |
| Dimensions: | 3-3/4 in W |
| Series: | EAB |
| Suitable For Use With: | Rigid Conduits |
| Type: | Type T Dust-Ignitionproof Explosionproof Raintight Round Shape, Type T Dust-Ignitionproof Explosionproof Round Raintight |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Pad |
| UNSPSC: | 39121309 |
| UPC: | 00782274248202 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

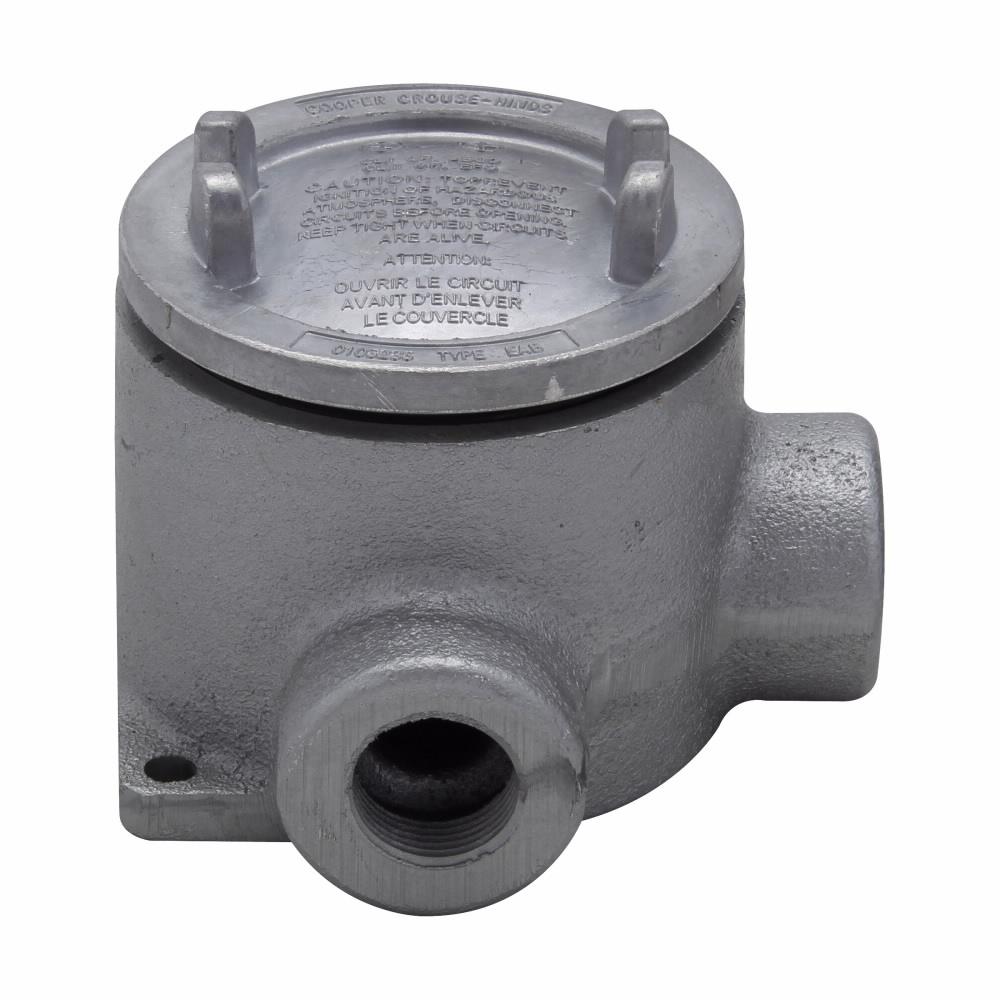

Crouse Hinds EABL36 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: EABL36
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type T Dust-Ignitionproof Explosionproof Round Raintight, Series: EAB, 1/2 in, 3 in Cover Opening Size, 18.5 cu-in Capacity, For Use With: Rigid Conduits, Pad Mount, Feraloy Iron Alloy, Electro-Galvanized, 3-3/4 in W
Additional Description: CRHD-EABL36 1 IRON CNDT OUTLET BX CVR
Catalog Description: Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, L shape, 1"
EABL36 Application
Industrial Facilities, Factories and Wet LocationsEABL36 Item Features
- Five different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Threaded cover openings
- Surface covers furnished with box
- Neoprene O-ring gasket and green ground screw are both standard
- Cover threads are 16 pitch
- #10 internal green ground screw
- Copper-free aluminum cover
- Provide protection against exterior explosion where acetylene, hydrogen and other hazardous gases are present
- Protect conductors in threaded rigid conduit
- Act as pull and splice boxes
- Interconnect lengths of conduit
- Change direction of conduit
- Provide access to conductors for maintenance and future system changes
EABL36 Standards
CSA C22.2|UL 886SKU #2280845Part Number #EABL36UNSPSC39121309UPC00782274248202
Image provided may only be a representation of final product and may include optional equipment
