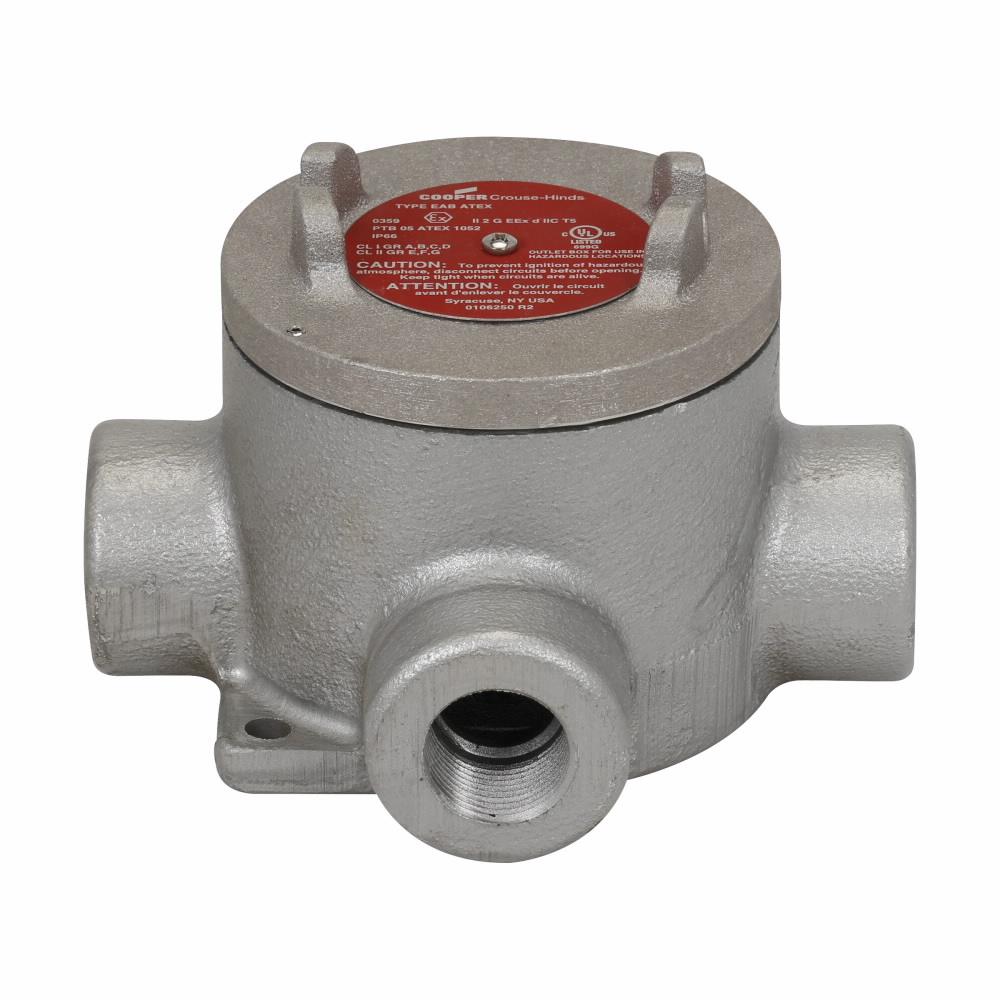

Crouse Hinds EABX16SAATEX Specialty Electrical Boxes
Part Number # EABX16SAATEX
SKU # 2430248
Crouse Hinds EABX16SAATEX Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EABX16SAATEX |
| SKU #: | 2430248 |
| Cover Opening Size: | 3 in |
| Dimensions: | 3-3/4 in W |
| Finish: | Natural |
| Series: | EABX |
| Size: | 3/4 in |
| Suitable For Use With: | Rigid Conduits |
| Type: | Type X Dust-Ignitionproof Explosionproof Round Raintight |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Mounting type: | Pad |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121309 |
| UPC: | 00066227604930 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EABX16SAATEX Specialty Electrical Boxes
Brand: Crouse Hinds
Part Number: EABX16SAATEX
EATON Crouse-Hinds Condulet® Conduit Outlet Box, Type X Dust-Ignitionproof Explosionproof Round Raintight, Series: EABX, 3/4 in, 3 in Cover Opening Size, For Use With: Rigid Conduits, Pad Mount, Copper-Free Aluminum, Natural, 3-3/4 in W
Additional Description: CRHD-EABX16 SA ATEX (N) 1/2 X AL ROUND BASE OUTLET CVR ATEX NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Condulet EAB ATEX conduit outlet box with cover, 3" cover opening diameter, Copper-free aluminum, X shape, 1/2"
EABX16SAATEX Application
Industrial Facilities, Factories and Wet LocationsEABX16SAATEX Item Features
- Five different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Threaded cover openings
- Surface covers furnished with box
- Neoprene O-ring gasket and green ground screw are both standard
- Cover threads are 16 pitch
- #10 internal green ground screw
- Copper-free aluminum cover
- Provide protection against exterior explosion where acetylene, hydrogen and other hazardous gases are present
- Protect conductors in threaded rigid conduit
- Act as pull and splice boxes
- Interconnect lengths of conduit
- Change direction of conduit
- Provide access to conductors for maintenance and future system changes
EABX16SAATEX Standards
NEC/CEC Class I, Div 1 & 2, Groups A, B, C, D|Class II, Div 1 & 2, Groups E, F, G, Class III|Class III|II 2 G EEx d IIC T5|PTB 05 ATEX 1052|UL 1203|cUL Listed to CSA C22.2 No.30|IP66SKU #2430248Part Number #EABX16SAATEXUNSPSC39121309UPC00066227604930
