EABX26

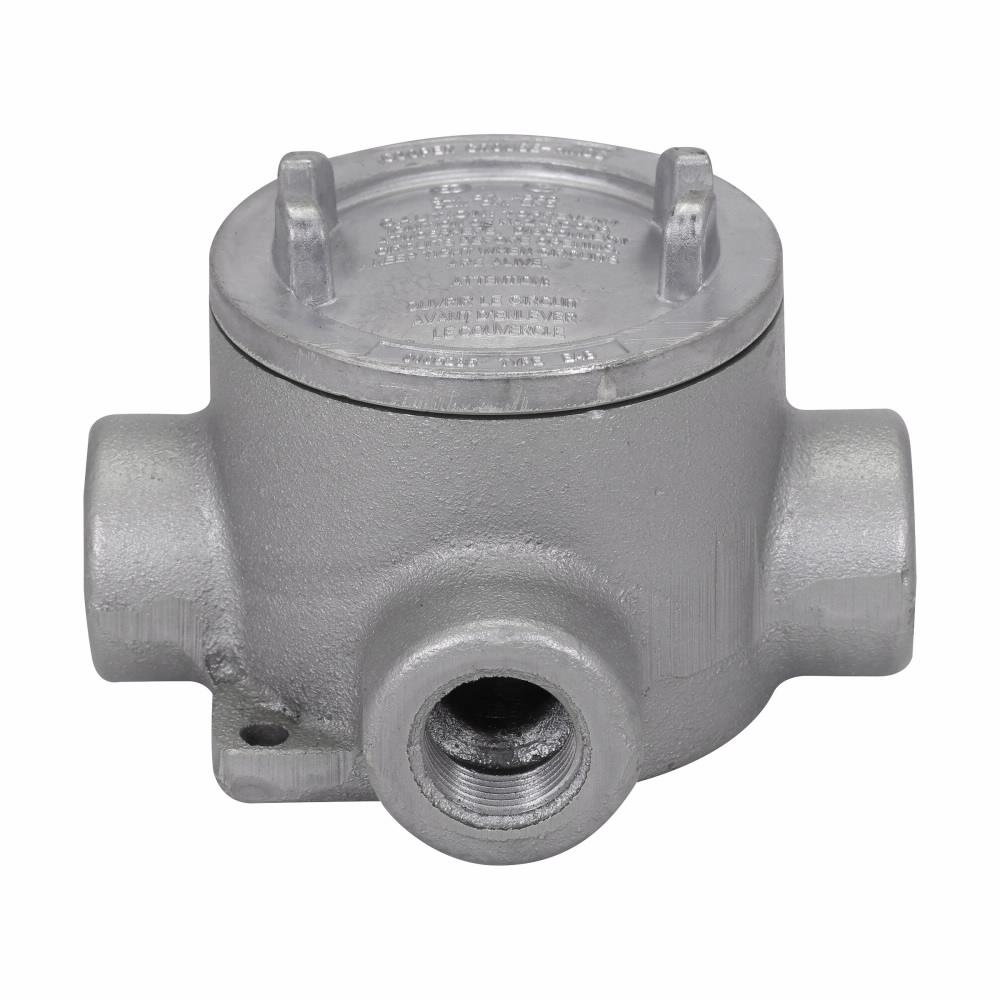

Crouse Hinds EABX26 Conduit Outlet Box
Part Number # EABX26
SKU # 2256166
$183.30 / Each
Typical price:$241.96 / Each
Crouse Hinds EABX26 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EABX26 |
| SKU #: | 2256166 |
| Capacity: | 20.5, 20.5 cu-in |
| Cover Opening Size: | 3, 3 in |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | EABX |
| Size: | 3/4, 3/4 in |
| Suitable For Use With: | Threaded Rigid Conduit |
| Type: | Shape X |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Pad |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121309 |
| UPC: | 00782274248707 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$183.30 / Each
Typical price:$241.96 / Each
Quantity:
Crouse Hinds EABX26 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: EABX26
EATON Crouse-Hinds Condulet Conduit Outlet Box, Shape X, Series: EABX, 3/4 in, 3 in Cover Opening Size, 20.5 cu-in Capacity, For Use With: Threaded Rigid Conduit, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-EABX26 3/4 X IRON GRP AB ROUND BASE OUTLET CVR
Catalog Description: Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, X shape, 3/4"
EABX26 Application
Industrial Facilities, Factories and Wet Location ApplicationsEABX26 Item Features
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Threaded cover openings
- Surface covers furnished with box
- Neoprene O-ring gasket and green ground screw are both standard
- Cover threads are 16 pitch
- #10 internal green ground screw
EABX26 Standards
NEC Compliant|CEC Certified|Class I, Div 1 2, Group A B C D, Class II, Div 1, Group E F G, Class II, Div 2, Group F G, Class III|UL 886/1203|CSA C22.2 No. 30SKU #2256166Part Number #EABX26UNSPSC39121309UPC00782274248707
