Part Number # EAJT26
SKU # 2448909
Image Disclaimers Message
EAJT26
Crouse Hinds EAJT26
Part Number # EAJT26
SKU # 2448909
$153.74 / Each
Typical price:$202.94 / Each
Crouse Hinds EAJT26 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EAJT26 |
| SKU #: | 2448909 |
| Capacity: | 20.5 cu-in |
| Cover Opening Size: | 3-3/16 in |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | EAJ |
| Size: | 3/4 in |
| Suitable For Use With: | Threaded Rigid Conduit |
| Type: | Shape T |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy |
| Mounting type: | Pad |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121309 |
| UPC: | 00078227494387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$153.74 / Each
Typical price:$202.94 / Each
Quantity:
Crouse Hinds EAJT26
Brand: Crouse Hinds
Part Number: EAJT26

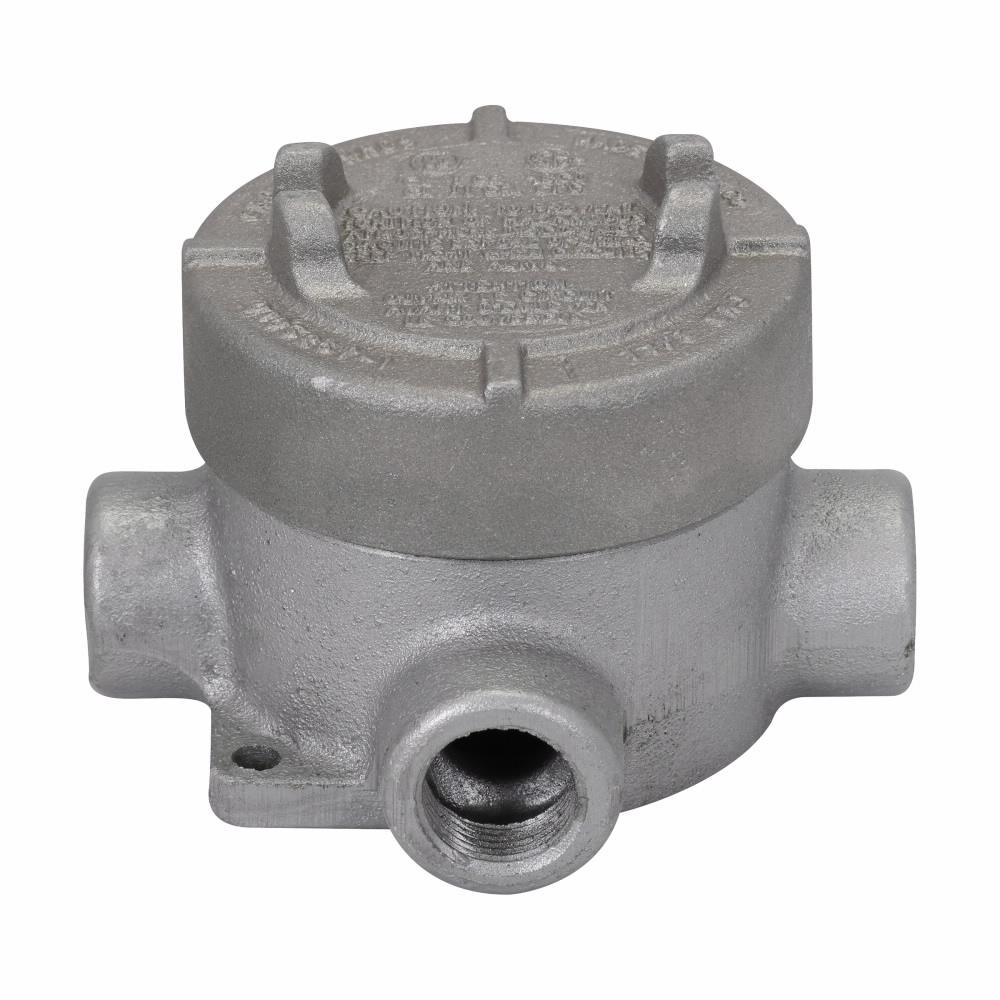

EATON Crouse-Hinds Condulet® Conduit Outlet Box, Shape T, Series: EAJ, 3/4 in, 3-3/16 in Cover Opening Size, 20.5 cu-in Capacity, For Use With: Threaded Rigid Conduit, Pad Mount, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-EAJT26 3/4 NPT T IRON ROUND BASE 3 3/16 CVR
Catalog Description: Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover, 3-3/16" cover opening diameter, Feraloy iron alloy, T shape, 3/4"
EAJT26 Application
Industrial Facilities, Factories and Wet Location ApplicationsEAJT26 Item Features
- Water shedding cover - suitable for wet locations when mounted in upright position
- External cover threads on body protecting conductors from damage during pulling
- No pinching of conductors during cover installation
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Internally threaded cover openings for additional wiring room
- Flat overlapping threaded covers furnished with boxes
- Weather-resistant finish
- #10 internal green ground screw standard in all boxes
EAJT26 Standards
NEC Compliant|CEC Certified|Class I, Div 1 2, Group A B C D|Class II, Div 1, Group E F G, Class II, Div 2, Group F G, Class III|UL 886/1203|CSA C22.2 No. 30SKU #2448909Part Number #EAJT26UNSPSC39121309UPC00078227494387
