EAJX16

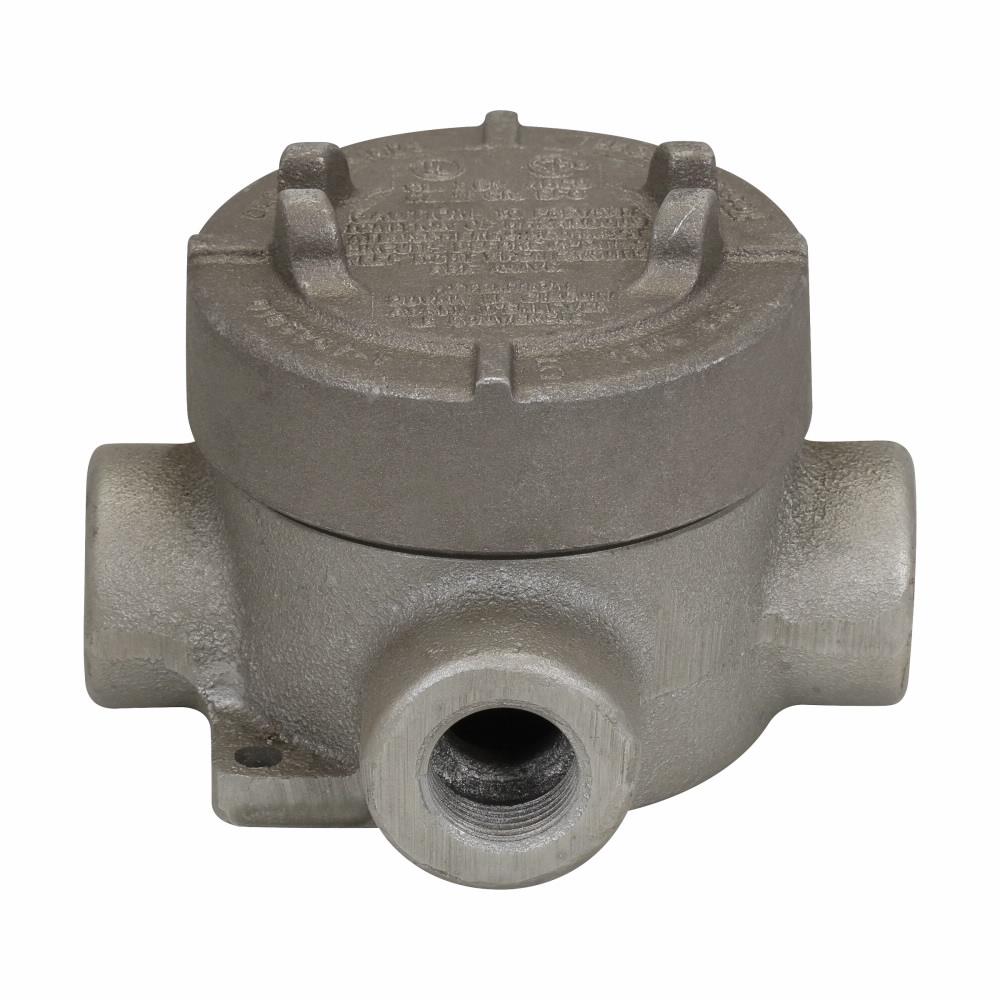

Crouse Hinds EAJX16 Conduit Outlet Box
Part Number # EAJX16
SKU # 2383732
$151.58 / Each
Typical price:$200.08 / Each
Crouse Hinds EAJX16 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EAJX16 |
| SKU #: | 2383732 |
| Capacity: | 20.5, 20.5 cu-in |
| Cover Opening Size: | 3-3/16, 3-3/16 in |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | EAJ |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | Threaded Rigid Conduit |
| Type: | Type X |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Pad |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121309 |
| UPC: | 00782274943893 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$151.58 / Each
Typical price:$200.08 / Each
Quantity:
Crouse Hinds EAJX16 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: EAJX16
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type X, Series: EAJ, 1/2 in, 3-3/16 in Cover Opening Size, 20.5 cu-in Capacity, For Use With: Threaded Rigid Conduit, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-EAJX16 1/2 NPT X IRON CL I GR ABCD ROUND BASE 3 3/16 COVER BASE 3 3/16 CVR
Catalog Description: Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover, 3-3/16" cover opening diameter, Feraloy iron alloy, X shape, 1/2"
EAJX16 Application
Industrial Facilities, Factories and Wet Location ApplicationsEAJX16 Item Features
- Water shedding cover - suitable for wet locations when mounted in upright position
- External cover threads on body protecting conductors from damage during pulling
- No pinching of conductors during cover installation
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Internally threaded cover openings for additional wiring room
- Flat overlapping threaded covers furnished with boxes
- Weather-resistant finish
- #10 internal green ground screw standard in all boxes
EAJX16 Standards
NEC Compliant|CEC Certified|Class I, Div 1 2, Group A B C D, Class II, Div 1, Group E F G, Class II, Div 2, Group F G, Class III|UL 886/1203|CSA C22.2 No. 30SKU #2383732Part Number #EAJX16UNSPSC39121309UPC00782274943893
