Part Number # EDS21274
SKU # 2441281
EDS21274
Crouse Hinds EDS21274
Part Number # EDS21274
SKU # 2441281
Crouse Hinds EDS21274 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDS21274 |
| SKU #: | 2441281 |
| Contact Configuration: | 8NO-4NC |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 3-1/16 in H |
| Finish: | Natural |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G |
| Number of Operators: | 1 |
| Operator Type: | Front Operated Button |
| Series: | EDS |
| Type: | 4-Circuit 3-Position 1-Gang Dead End Factory Sealed Heavy Duty |
| Connection type: | Thread |
| Country of origin: | MX |
| Material: | Feraloy Iron Alloy |
| Mounting type: | Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122217 |
| UPC: | 00782274764696 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EDS21274
Brand: Crouse Hinds
Part Number: EDS21274

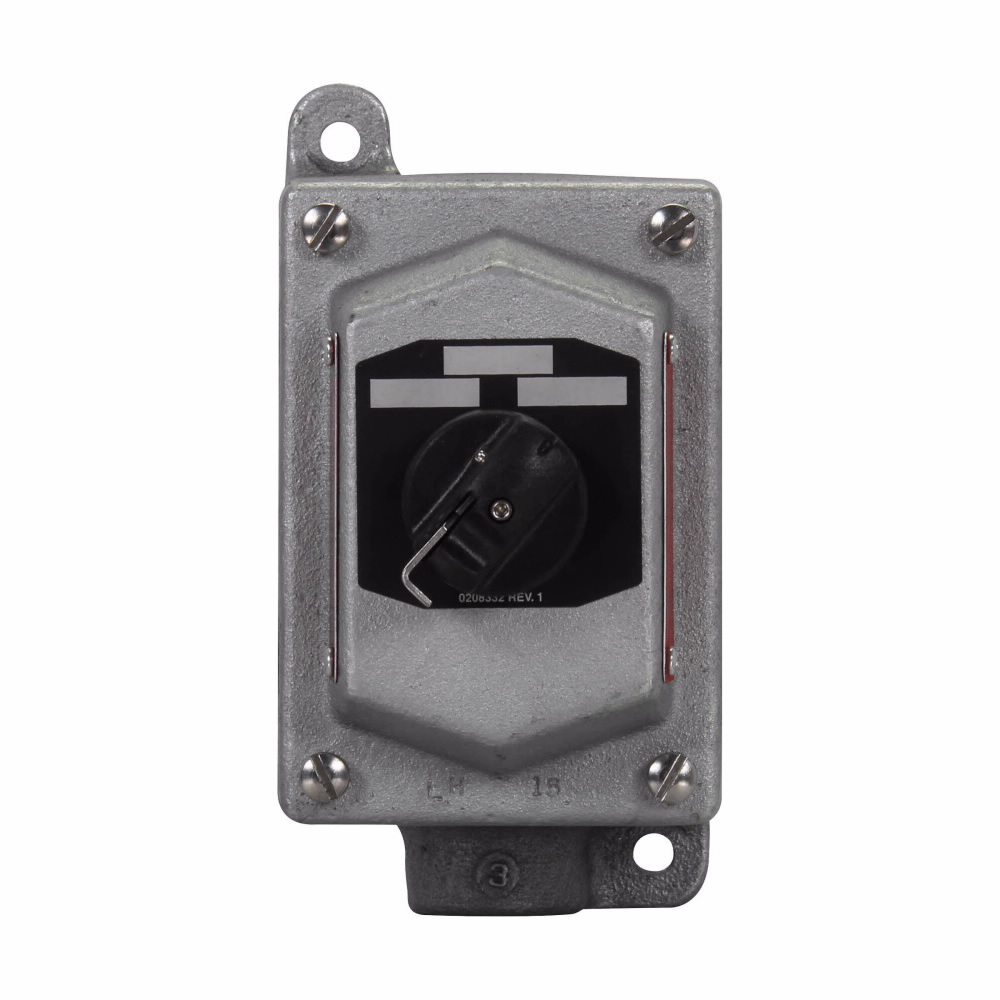

Crouse-Hinds FlexStation™ Selector Switch Control Station, 4-Circuit 3-Position 1-Gang Dead End Factory Sealed Heavy Duty, Series: EDS, 600 VAC, 1 Operators, 8NO-4NC Contact Configuration, Maintained Contact Mode, Front Operated Button Operator, Thread Connection, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy® Iron Alloy, Natural, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H Dimensions
Additional Description: CRHD-EDS21274 3/4 CST IRON 3 POS 4 CIRCUIT DIV 1 SELECTOR SWITCH
Catalog Description: Eaton Crouse-Hinds series EDS selector switch control station, With selector switch, With one 3/4" hub, Feraloy iron alloy, Three-position, four-circuit, 4, 1, Single-gang, 3, Dead end, 3/4"
EDS21274 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing, Wet Locations and General ApplicationsEDS21274 Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- When STOP is indicated, button is automatically red, when START is indicated, button is automatically green, otherwise, black buttons are standard
- 3/4 in hub
- Explosionproof, Dust ignitionproof and rain tight
EDS21274 Standards
CSA C22.2|Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III|UL 1203SKU #2441281Part Number #EDS21274UNSPSC39122217UPC00782274764696
Image provided may only be a representation of final product and may include optional equipment
