Part Number # EDS215
SKU # 2409993
EDS215
Crouse Hinds EDS215 Flexstation Pushbutton Control Station
Part Number # EDS215
SKU # 2409993
Crouse Hinds EDS215 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDS215 |
| SKU #: | 2409993 |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 2-11/16 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G |
| Operator Type: | Front Operated Button |
| Series: | EDS |
| Type: | 1-Gang Dead End Factory Sealed Heavy Duty |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| UNSPSC: | 39122216 |
| UPC: | 00782274763538 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EDS215 Flexstation Pushbutton Control Station
Brand: Crouse Hinds
Part Number: EDS215
Crouse-Hinds FlexStation Pushbutton Control Station, 1-Gang Dead End Factory Sealed Heavy Duty, Series: EDS, 600 VAC, 2 Operators, 1NC-1NO Contact Configuration, Front Operated Button Operator, Legend: STOP/START, Thread Connection, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 2-11/16 in H Dimensions
Additional Description: CRHD-EDS215 3/4 CST IRON 1 N.O. 1 N.C. DIV 1 START STOP PB
Catalog Description: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, 2 circuit, 2, Single-gang, 2, Dead end, 3/4", 600 Vac
EDS215 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing and Wet Location ApplicationsEDS215 Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- When stop is indicated, button is automatically red, when start is indicated, button is automatically green, otherwise, black buttons are standard
- Two circuit universal
- 3/4 in hub
- Explosionproof, Dust ignitionproof and rain tight
EDS215 Standards
CSA C22.2, Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|UL 1203SKU #2409993Part Number #EDS215UNSPSC39122216UPC00782274763538

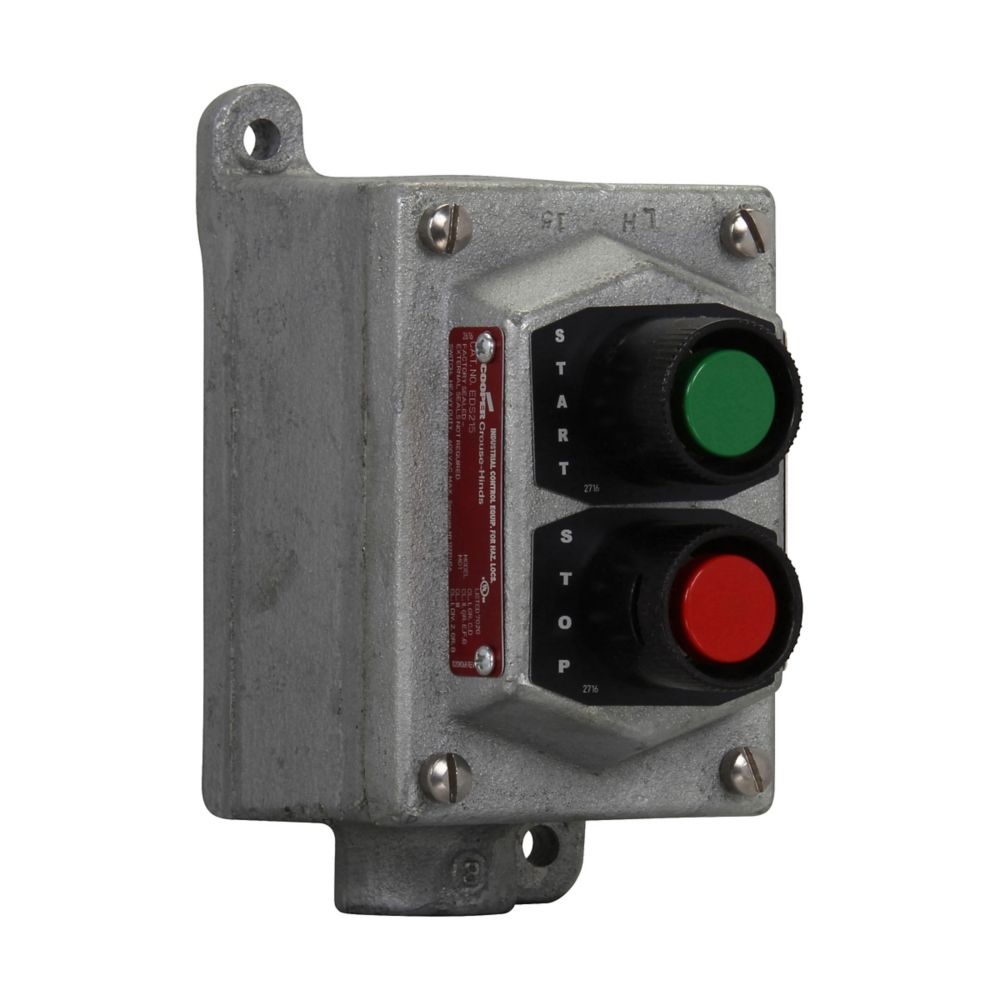

Image provided may only be a representation of final product and may include optional equipment
