Part Number # EDS2184S769EM-SP
SKU # 2153811
EDS2184S769EM-SP

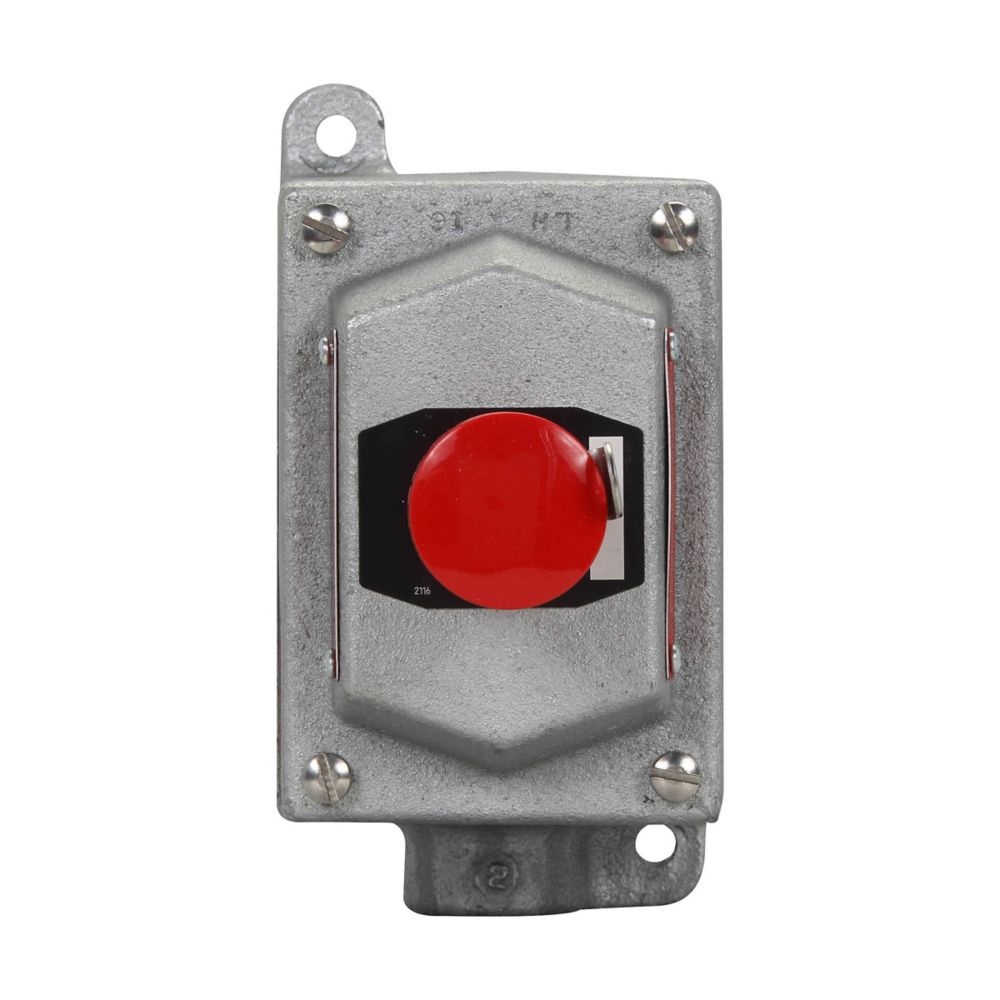

Crouse Hinds EDS2184S769EM-SP Pushbutton Control Station
Part Number # EDS2184S769EM-SP
SKU # 2153811
Crouse Hinds EDS2184S769EM-SP Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDS2184S769EM-SP |
| SKU #: | 2153811 |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 3-1/16 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| NEMA Rating: | 3/7BCD/9EFG, NEMA 3/7BCD/9EFG |
| Operator Type: | Front Operated Button |
| Series: | EDS |
| Type: | 1-Gang Dead End Factory Sealed Heavy Duty |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| UNSPSC: | 39121326 |
| UPC: | 00782274046099 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EDS2184S769EM-SP Pushbutton Control Station
Brand: Crouse Hinds
Part Number: EDS2184S769EM-SP
Crouse-Hinds FlexStation Pushbutton Control Station, 1-Gang Dead End Factory Sealed Heavy Duty, Series: EDS, 600 VAC, 2 Operators, 1NC-1NO Contact Configuration, Maintained Contact Mode, Front Operated Button Operator, Legend: Emergency Stop, Thread Connection, 3/7BCD/9EFG NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H Dimensions
Additional Description: CRHD-EDS2184-S769-EM-SP (N) EDS FS PUSHBUTTONS STATIONS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Emergency, Stop, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Maintained contact mushroom head, Dead end, 3/4", 600 Vac
EDS2184S769EM-SP Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing and Wet Location ApplicationsEDS2184S769EM-SP Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- Maintained red emergency "STOP" button with lockout front operated mushroom button breaks normally closed and makes normally open contacts (push to stop), lockout standard
- Two circuit universal
- 3/4 in hub
- Explosionproof, dust-ignitionproof and raintight
- Maintained contact mushroom head
EDS2184S769EM-SP Standards
CSA C22.2, Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|UL 1203SKU #2153811Part Number #EDS2184S769EM-SPUNSPSC39121326UPC00782274046099
Image provided may only be a representation of final product and may include optional equipment
