Brand: Crouse Hinds
EDSC11274

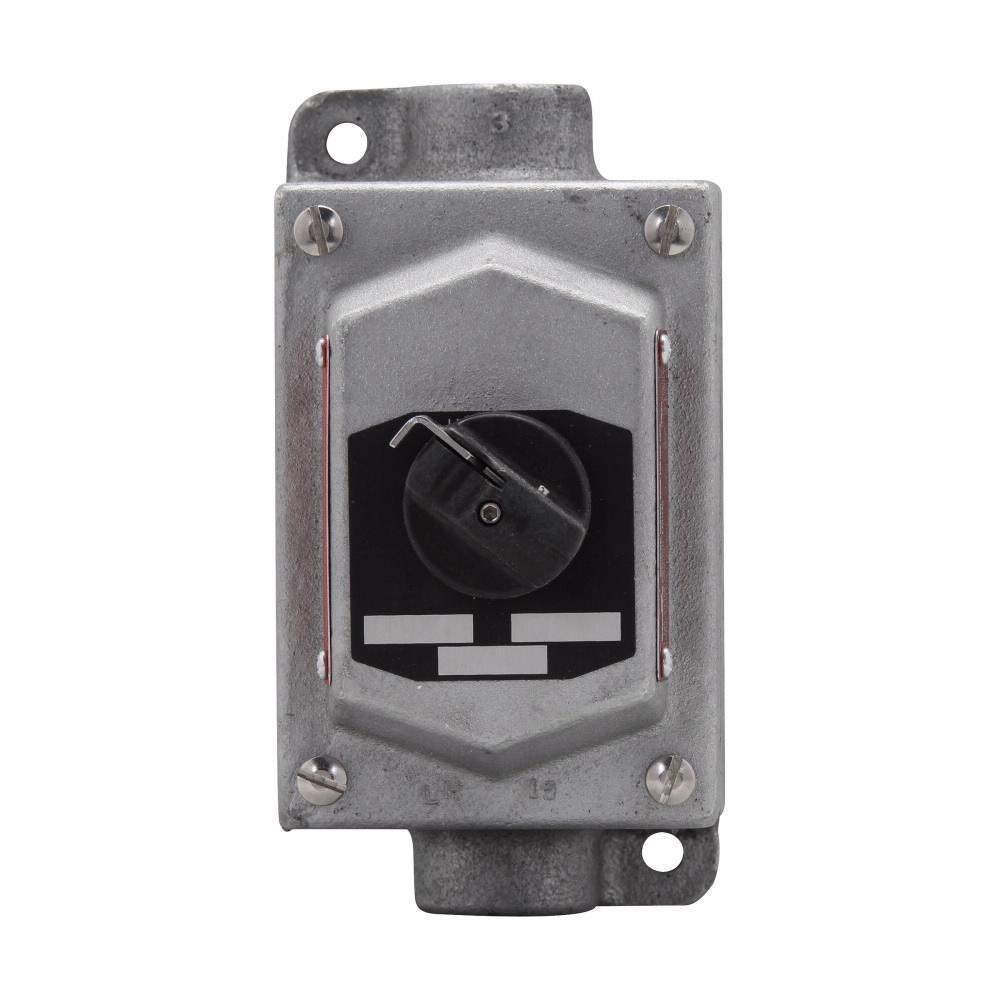

Crouse Hinds EDSC11274 Selector Switch Control Station
Part Number # EDSC11274
SKU # 2277677
$679.44 / Each
Typical price:$896.86 / Each
Crouse Hinds EDSC11274 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDSC11274 |
| SKU #: | 2277677 |
| Actuator: | Lever |
| Contact Configuration: | 8NO-4NC, 8NO/4NC |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 3-1/16 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G, NEMA 3/7B/7C/7D/9E/9F/9G |
| Series: | EDS |
| Type: | 1-Gang Factory Sealed Heavy Duty Through Feed, 1-Gang Factory Sealed Heavy Duty Through-Feed |
| Country of origin: | MX |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122217 |
| UPC: | 00782274766348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$679.44 / Each
Typical price:$896.86 / Each
Quantity:
- Crouse-Hinds FlexStation Selector Switch Control Station, 1-Gang Factory Sealed Heavy Duty Through-Feed, Series: EDS, 600 VAC, 8NO-4NC Contact Configuration, Maintained Contact Mode, Lever Actuator, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H Dimensions
EDSC11274 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Industrial Facilities and Factories Facility, Power Distribution and Control Application ApplicationsEDSC11274 Item Features
- Factory sealed enclosures are used to prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure, in conjunction with magnetic starters or contactors for remote control of motors
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- Explosionproof, dust-ignitionproof and raintight
- 1/2 in hub
- Three position, four-circuit
- ED12 replacement contact blocks
EDSC11274 Standards
Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|UL/cUL Listed|CE Certified|CSA Certified|CSA C22.2|UL 1203SKU #2277677Part Number #EDSC11274UNSPSC39122217UPC00782274766348
