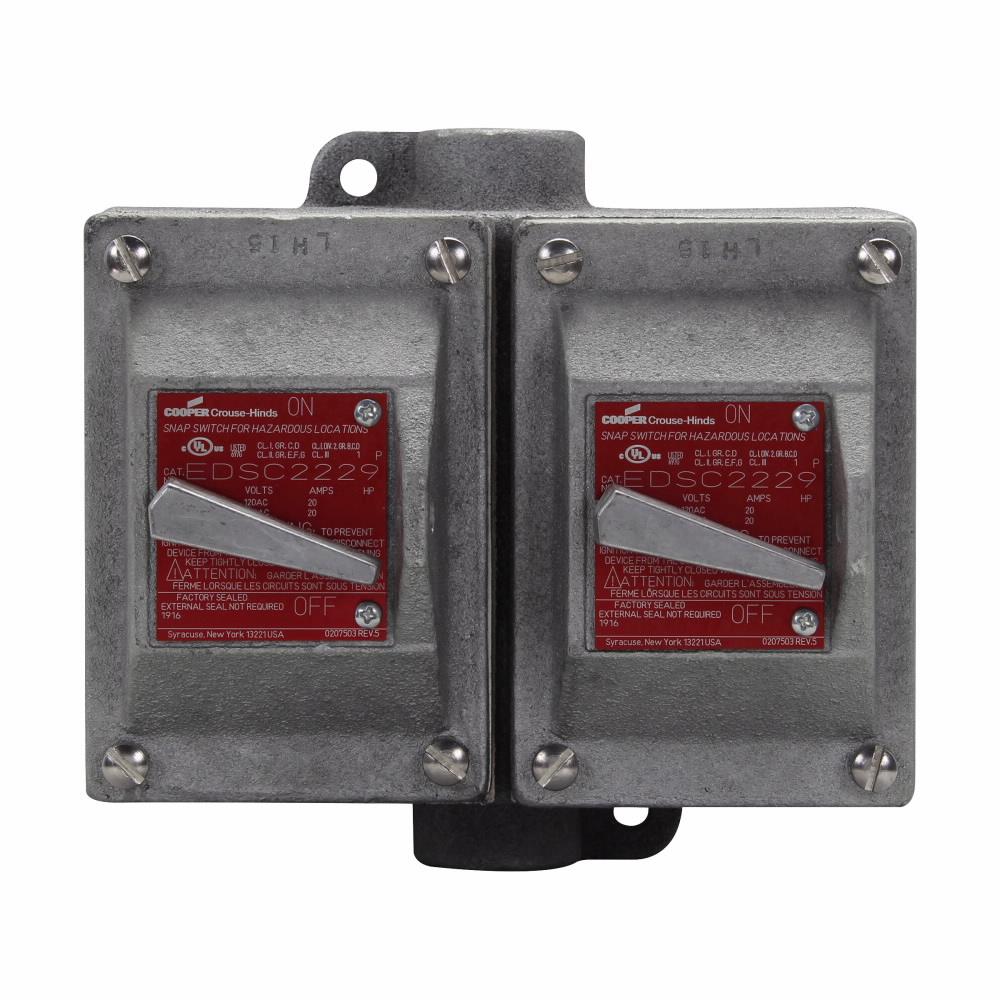

Crouse Hinds EDSC228 Flexstation Snap Switch Control Station
Part Number # EDSC228
SKU # 2436706

EDSC228
Crouse Hinds EDSC228 Flexstation Snap Switch Control Station
Part Number # EDSC228
SKU # 2436706
Crouse Hinds EDSC228 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDSC228 |
| SKU #: | 2436706 |
| Dimensions: | 5-3/32 in L x 7-3/16 in W x 3-1/16 in H |
| NEMA Rating: | NEMA 3/7B/7C/7D/9E/9F/9G |
| Type: | 2-Gang Factory Sealed Through-Feed |
| UNSPSC: | 39122209 |
| UPC: | 00782274765310 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Crouse Hinds EDSC228 Flexstation Snap Switch Control Station
Brand: Crouse Hinds
Part Number: EDSC228
Crouse-Hinds FlexStation Snap Switch Control Station, 2-Gang Factory Sealed Through-Feed, Series: EDS, 120/277 VAC, 20 A, 2 Pole, Front Operator, Handle Actuator, Thread Connection, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 5-3/32 in L x 7-3/16 in W x 3-1/16 in H Dimensions
Additional Description: CRHD-EDSC228 (N) 3/4 THRU CST IRON 2 POS 20A 2 GNG DIV 1 SNAP SWITCH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With two 3/4" hubs, Feraloy iron alloy, 2, Two-gang, Two-pole, 120-277V, Factory sealed, Through feed, Two-pole, 3/4", 120-277 Vac
EDSC228 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Industrial Facilities and Factories Facility, Power Distribution and Control Application ApplicationsEDSC228 Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- Dust ignitionproof, raintight
- To prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure
- In conjunction with magnetic starters or contactors for remote control of motors
- For manual starting of small AC/DC motors
- To provide manual starting and stopping and motor running protection (with heater)
- 3/4 in hub
- On/off standard marking for 1-pole and 2-pole units
EDSC228 Standards
Class I, Division 1/2, Group C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|CSA Certified|UL Listed|CSA C22.2|UL 1203SKU #2436706Part Number #EDSC228UNSPSC39122209UPC00782274765310
Image provided may only be a representation of final product and may include optional equipment
