Part Number # EDSC315
SKU # 2348330
Image Disclaimers Message
Brand: Crouse Hinds
EDSC315

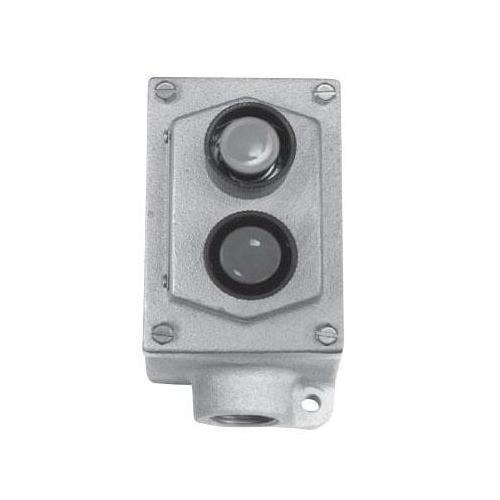

Crouse Hinds EDSC315 Pushbutton Control Station
Part Number # EDSC315
SKU # 2348330
$725.36 / Each
Typical price:$957.48 / Each
Crouse Hinds EDSC315 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDSC315 |
| SKU #: | 2348330 |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 3-1/16 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| Legend: | START/STOP, STOP/START |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G, NEMA 3/7B/7C/7D/9E/9F/9G |
| Operator Type: | Front |
| Series: | EDS |
| Type: | 1-Gang Factory Sealed Heavy Duty Through Feed, 1-Gang Factory Sealed Heavy Duty Through-Feed |
| Country of origin: | MX |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122216 |
| UPC: | 00782274765327 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$725.36 / Each
Typical price:$957.48 / Each
Quantity:
- Crouse-Hinds FlexStation Pushbutton Control Station, 1-Gang Factory Sealed Heavy Duty Through-Feed, Series: EDS, 600 VAC, Front Operator, Legend: STOP/START, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H Dimensions
EDSC315 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Industrial Facilities and Factories Facility, Power Distribution and Control Application ApplicationsEDSC315 Item Features
- Factory sealed enclosures are used to prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure, in conjunction with magnetic starters or contactors for remote control of motors
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- When stop is indicated, button is automatically red, when start is indicated, button is automatically green, otherwise, black buttons are standard
- Explosionproof, dust ignitionproof, raintight
- 1 in hub
- Two circuit start-stop
- Fully assembled
- For use with EDS/EFS series control stations
EDSC315 Standards
Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|cCSAus Certified|CSA C22.2|UL 1203SKU #2348330Part Number #EDSC315UNSPSC39122216UPC00782274765327
