Crouse Hinds EDSCM21 Modular Control Device Box
Part Number # EDSCM21
SKU # 2381634

EDSCM21
Crouse Hinds EDSCM21 Modular Control Device Box
Part Number # EDSCM21
SKU # 2381634
Crouse Hinds EDSCM21 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDSCM21 |
| SKU #: | 2381634 |
| Dimensions: | 3-1/2 in W x 3-5/16 in D x 7-9/16 in H |
| Series: | EDSCM |
| Suitable For Use With: | DSD Device Cover |
| Type: | 1-Gang Feed-Through |
| UNSPSC: | 39122209 |
| UPC: | 00782274178400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Crouse Hinds EDSCM21 Modular Control Device Box
Brand: Crouse Hinds
Part Number: EDSCM21

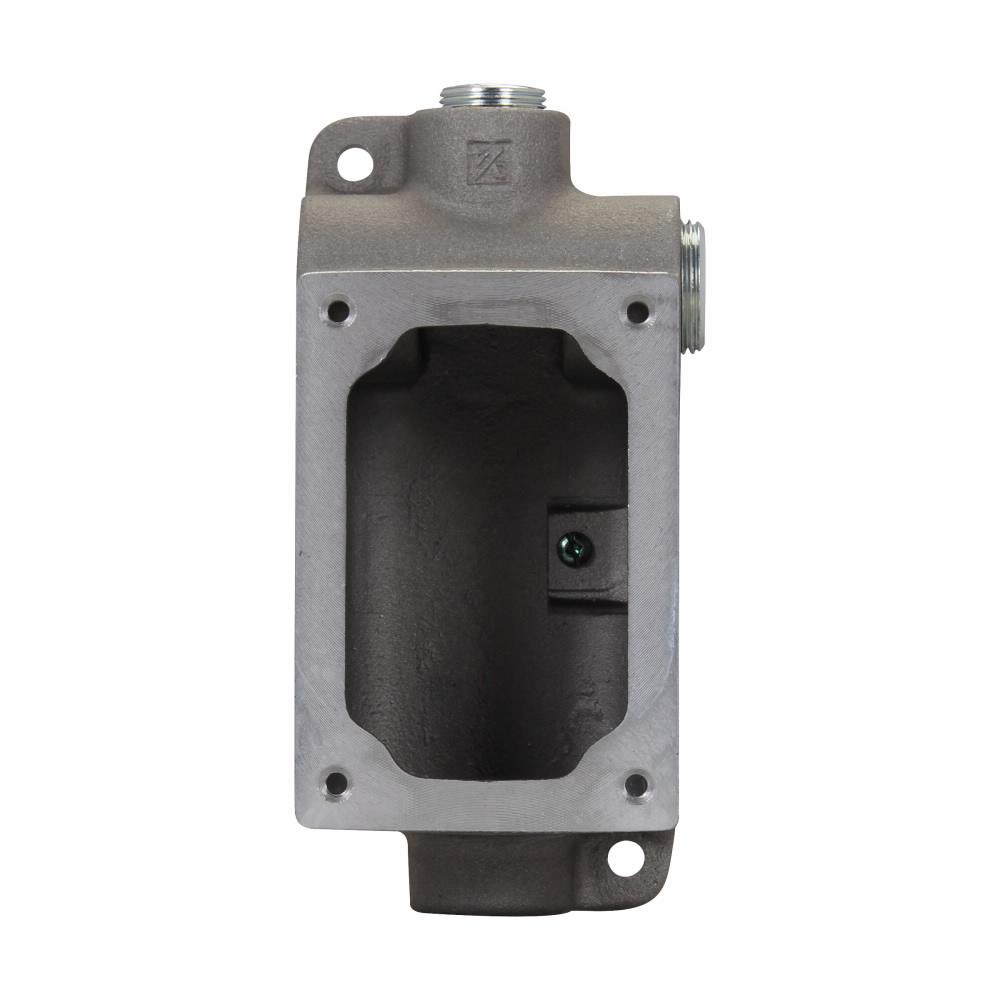

Crouse-Hinds FlexStation Modular Control Device Box, 1-Gang Feed-Through, Series: EDSCM, For Use With: DSD Device Cover, NEMA 3/7BCD/9EFG NEMA Rating, Aluminum, Natural, 3-1/2 in W x 3-5/16 in D x 7-9/16 in H Dimensions
Additional Description: CRHD-EDSCM21 EDSCM SINGLE GANG ALUM BACK BOX
Catalog Description: Eaton Crouse-Hinds series EDSCM modular control device body, With two 3/4" hubs and two 1" hubs, Copper-free aluminum, Single-gang, Through feed, 3/4", DSD device cover sub-assemblies
EDSCM21 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, For use with EDS series control station ApplicationsEDSCM21 Item Features
- Conjunction with magnetic starters or contactors for remote control and monitoring motors
- Manual starting and stopping of small AC or DC motors
- Controlling and supplying energy to portable electrical devices such as motor-generator sets, compressors, conveyors, portable tools and more
- Reduce installation costs, a multi-gang device assembly can be installed in less time than several single gang units
- Seals not required between gangs
- Improved appearance, no exposed conduit runs between devices
- Lightweight, fifteen-gang aluminum device body can be installed by one person
- Mounting feet are provided on the top and bottom of every gang to facilitate installation
- Two and three gang tandem bodies have 1-1/4 in through feed inward horizontal hubs and 1 in or 2 in vertical through feed hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- Single gang device bodies have 1 in through feed inward horizontal hubs and 3/4 in through feed vertical hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- All hubs are taper tapped and have integral bushings
- Close nipples, which are used to join two or more device bodies together, are furnished with EDSCM 21, 32, 33, 62 and 63 units
- Any combination of bodies can be joined together horizontally
- Explosionproof, dust-ignitionproof and raintight
- 3/4 in through feed hub
EDSCM21 Standards
UL 1203|CSA C22.2 No. 30|EEMAC Certified|Class I, Division 1/2, Group C/D|Class I, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Group F/G, Class IIISKU #2381634Part Number #EDSCM21UNSPSC39122209UPC00782274178400
Image provided may only be a representation of final product and may include optional equipment
