Part Number # EDSCM33
SKU # 2275176
Image Disclaimers Message
EDSCM33

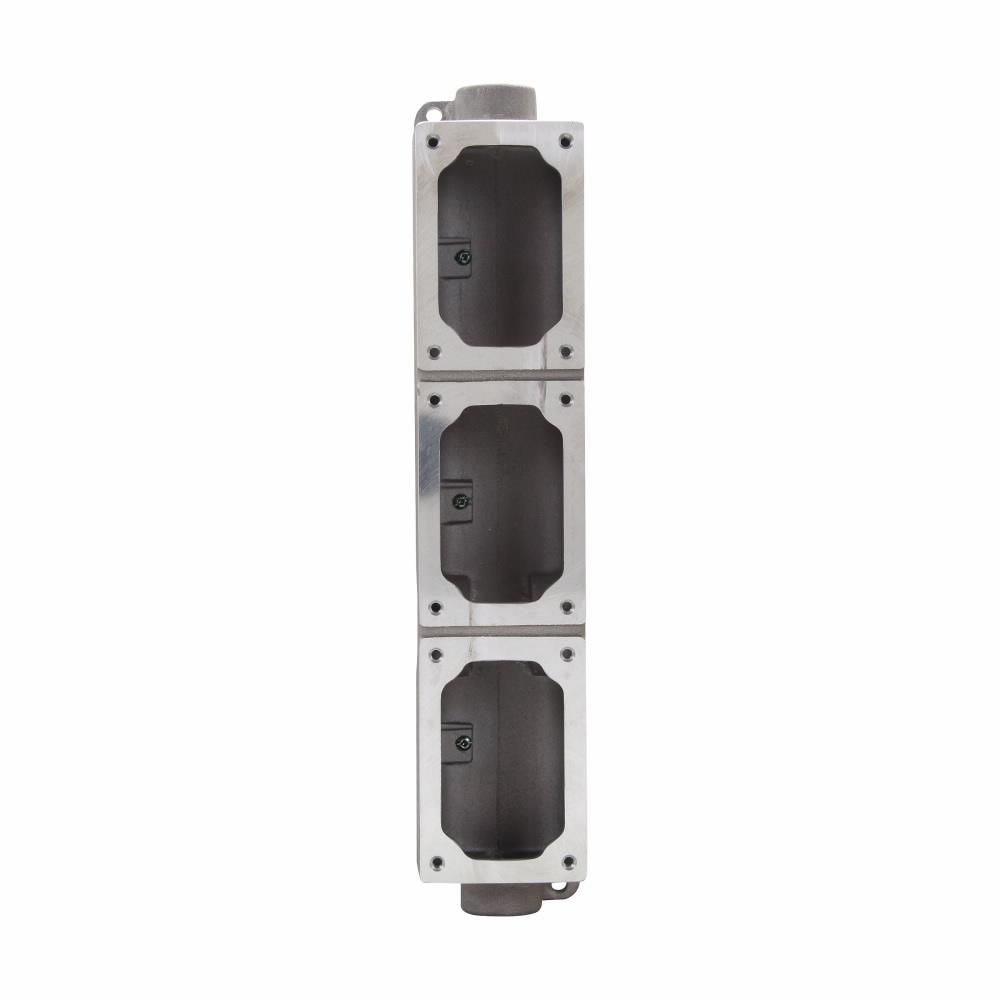

Crouse Hinds EDSCM33 Modular Control Device Box
Part Number # EDSCM33
SKU # 2275176
$610.65 / Each
Typical price:$806.06 / Each
Crouse Hinds EDSCM33 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EDSCM33 |
| SKU #: | 2275176 |
| Dimensions: | 17-23/32 in H x 3-1/2 in W x 3-5/16 in D, 3-1/2 in W x 3-5/16 in D x 17-23/32 in H |
| Finish: | Natural |
| NEMA Rating: | NEMA 3/7BCD/9EFG |
| Series: | EDSCM |
| Suitable For Use With: | DSD Device Cover |
| Type: | 3-Gang Tandem Feed-Through |
| Country of origin: | MX |
| Material: | Aluminum, Copper Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122209 |
| UPC: | 00782274780948 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$610.65 / Each
Typical price:$806.06 / Each
Quantity:
- Crouse-Hinds FlexStation Modular Control Device Box, 3-Gang Tandem Feed-Through, Series: EDSCM, For Use With: DSD Device Cover, NEMA 3/7BCD/9EFG NEMA Rating, Aluminum, Natural, 3-1/2 in W x 3-5/16 in D x 17-23/32 in H Dimensions
EDSCM33 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, For use with EDS series control station ApplicationsEDSCM33 Item Features
- Conjunction with magnetic starters or contactors for remote control and monitoring motors
- Manual starting and stopping of small AC or DC motors
- Controlling and supplying energy to portable electrical devices such as motor-generator sets, compressors, conveyors, portable tools and more
- Reduce installation costs, a multi-gang device assembly can be installed in less time than several single gang units
- Seals not required between gangs
- Improved appearance, no exposed conduit runs between devices
- Lightweight, fifteen-gang aluminum device body can be installed by one person
- Mounting feet are provided on the top and bottom of every gang to facilitate installation
- Two and three gang tandem bodies have 1-1/4 in through feed inward horizontal hubs and 1 in or 2 in vertical through feed hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- Single gang device bodies have 1 in through feed inward horizontal hubs and 3/4 in through feed vertical hubs, pipe plugs are installed in one horizontal hub and both vertical hubs
- All hubs are taper tapped and have integral bushings
- Close nipples, which are used to join two or more device bodies together, are furnished with EDSCM 21, 32, 33, 62 and 63 units
- Any combination of bodies can be joined together horizontally
- Explosionproof, dust-ignitionproof and raintight
- 1 in through feed hub
EDSCM33 Standards
UL 1203|CSA C22.2 No. 30|EEMAC Certified|Class I, Division 1/2, Group C/D|Class I, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Group F/G, Class IIISKU #2275176Part Number #EDSCM33UNSPSC39122209UPC00782274780948
