Brand: Crouse Hinds
EFS21271

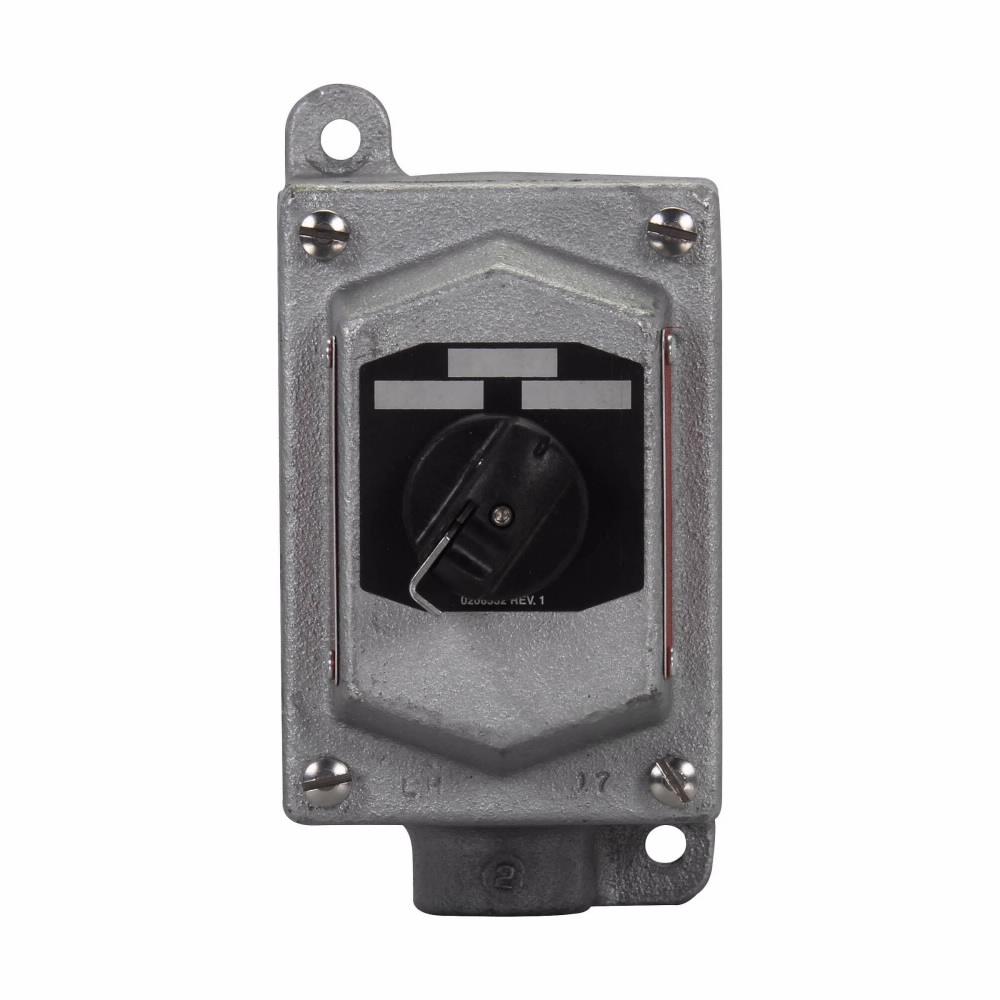

Crouse Hinds EFS21271 Selector Switch Control Station
Part Number # EFS21271
SKU # 2332273
$602.00 / Each
Typical price:$794.64 / Each
Crouse Hinds EFS21271 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EFS21271 |
| SKU #: | 2332273 |
| Actuator: | Lever |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 2-1/2 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G, NEMA 3/7B/7C/7D/9E/9F/9G |
| Number of Operators: | 1 |
| Series: | EFS |
| Type: | 1-Gang Dead End Factory Sealed Heavy Duty |
| Connection type: | Screw |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122217 |
| UPC: | 00782274288109 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$602.00 / Each
Typical price:$794.64 / Each
Quantity:
- Crouse-Hinds Selector Switch Control Station, 1-Gang Dead End Factory Sealed Heavy Duty, Series: EFS, 600 VAC, 1 Operator, 2NO-2NC Contact Configuration, Maintained Contact Mode, Lever Actuator, Screw Connection, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 2-1/2 in H Dimensions
EFS21271 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Industrial Facilities and Factories Facility, Power Distribution and Control Application ApplicationsEFS21271 Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- Explosionproof, dust ignitionproof, raintight
- 3/4 in hub
- Two position, two circuit
EFS21271 Standards
Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|UL 508|UL File No. E131568|CSA C22.2 No. 14|CSA File No. LR68551|CE EN60947-5-1|CE EN60947-5-5|FDA 3-A|UL 1203SKU #2332273Part Number #EFS21271UNSPSC39122217UPC00782274288109
