Brand: Crouse Hinds
EFSC2184

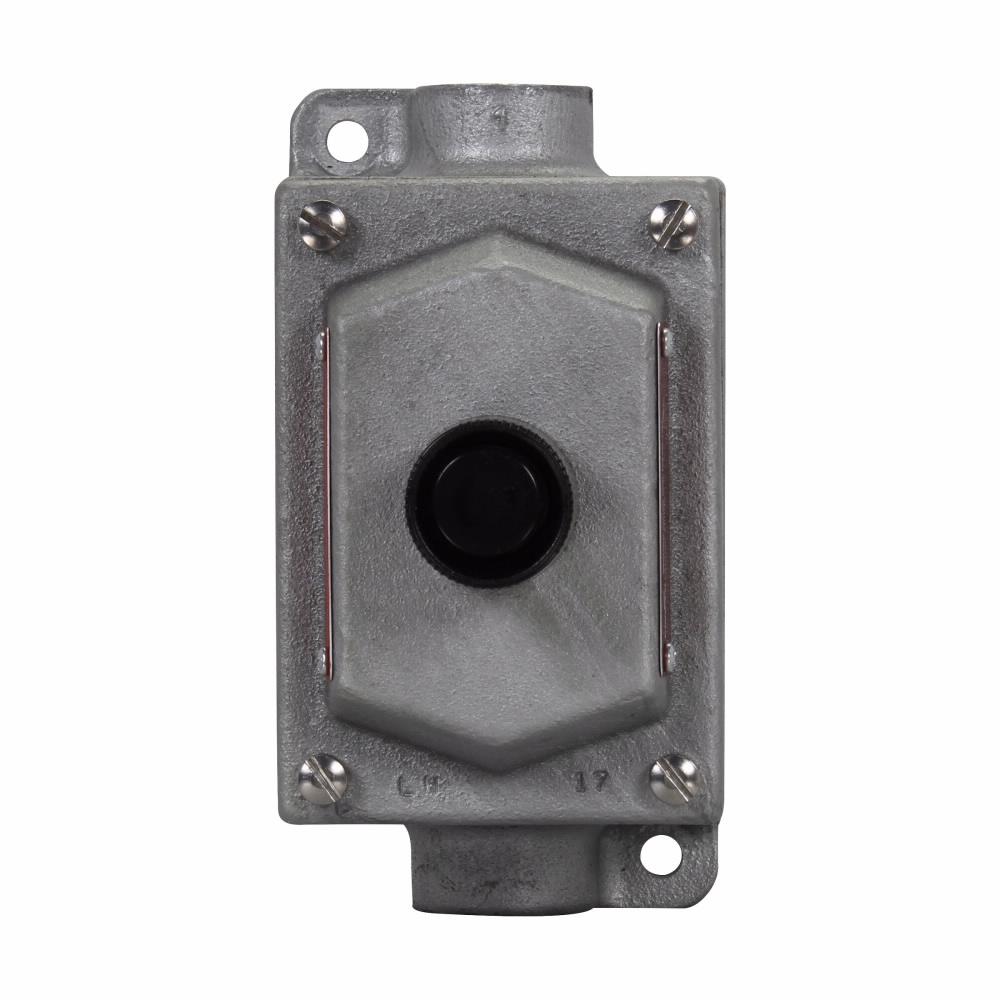

Crouse Hinds EFSC2184 Pushbutton Control Station
Part Number # EFSC2184
SKU # 2290811
$606.41 / Each
Typical price:$800.46 / Each
Crouse Hinds EFSC2184 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EFSC2184 |
| SKU #: | 2290811 |
| Dimensions: | 5-7/8 in L x 3-1/2 in W x 2-1/2 in H |
| Finish: | Electro-Galvanized/Aluminum Acrylic Painted |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G, NEMA 3/7BCD/9EFG |
| Number of Operators: | 1 |
| Operator Type: | Front Operated Button |
| Series: | EFS |
| Type: | 1-Gang Factory Sealed Feed-Through Heavy Duty |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122216 |
| UPC: | 00782274294209 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$606.41 / Each
Typical price:$800.46 / Each
Quantity:
- Crouse-Hinds FlexStation Pushbutton Control Station, 1-Gang Factory Sealed Feed-Through Heavy Duty, Series: EFS, 600 VAC, 1 Operator, Front Operated Button Operator, Thread Connection, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-7/8 in L x 3-1/2 in W x 2-1/2 in H Dimensions
EFSC2184 Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing and Wet Location ApplicationsEFSC2184 Item Features
- Reduce installation problem
- Eliminate external seals
- Lower installation cost
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushing
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journaled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- When stop is indicated, button is automatically red, when start is indicated, button is automatically green, otherwise, black buttons are standard
- One circuit universal
- 3/4 in hub
- Explosionproof, Dust ignitionproof and rain tight
EFSC2184 Standards
Class I, Division 1/2, Group B/C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III|UL 1203|CSA C22.2SKU #2290811Part Number #EFSC2184UNSPSC39122216UPC00782274294209
