Brand: Crouse Hinds
EIDAF3060

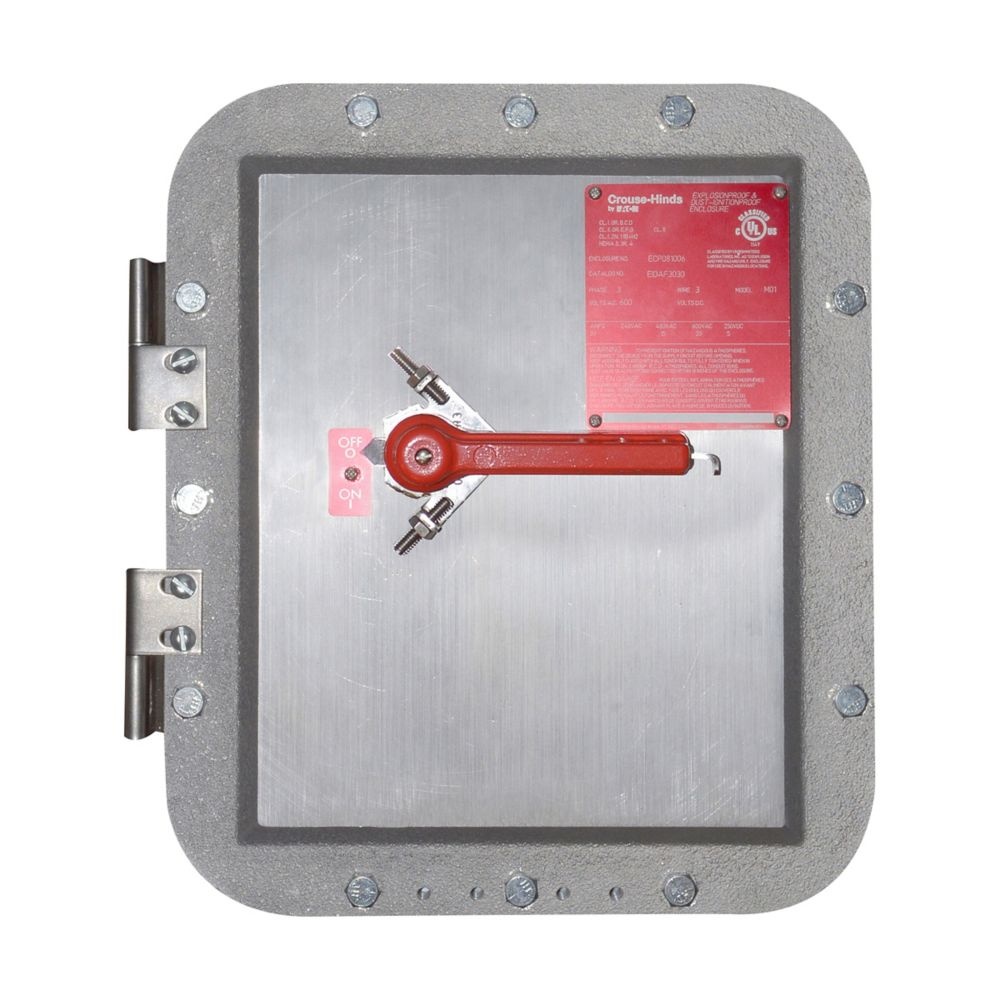

Crouse Hinds EIDAF3060 Disconnect Switch
Part Number # EIDAF3060
SKU # 2290121
$5459.95 / Each
Typical price:$7207.14 / Each
Crouse Hinds EIDAF3060 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EIDAF3060 |
| SKU #: | 2290121 |
| Actuator Type: | Rotary Handle |
| Amperage Rating: | 60 A |
| Dimensions: | 14.67 in L x 12.67 in W x 10.02 in H |
| Enclosure Type: | NEMA 3/3R/4/4X/7BCD/9EFG, NEMA 3/3R/4/7/9 |
| Finish: | Natural |
| Horsepower: | 30 hp at 480 VAC, 50 hp at 600 VAC, 10 hp at 250 VDC |
| Series: | EID |
| Type: | Explosion proof Fused, Explosionproof Fused |
| Country of origin: | DO |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00662276473492 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5459.95 / Each
Typical price:$7207.14 / Each
Quantity:
- EATON Crouse-Hinds Disconnect Switch, Explosionproof Fused, Series: EID, 240 to 600 VAC/250 VDC, 60 A, 30 hp at 480 VAC, 50 hp at 600 VAC, 10 hp at 250 VDC, Rotary Handle Actuator, NEMA 3/3R/4/7/9 Enclosure, 14.67 in L x 12.67 in W x 10.02 in H, Copper-Free Aluminum, Natural
EIDAF3060 Application
Industry Facilities, Factories, Power Distribution and Control, Hazardous Environments ApplicationsEIDAF3060 Item Features
- Allows for field installation of switch while maintaining product certification
- NEMA 4X breather and drain provides a moisture control solution in hose down applications
- Small, compact footprint less mounting space required
- Large red painted aluminum rotary handle operator mounted on cover assembly provides rugged, reliable performance in the field and allows for the position of the switch to be easily identified from a distance
- Internal fused switches are rated up to 200 kA short circuit rating at 600 VAC, providing increased protection
- Neoprene cover gasket provides NEMA 4 ingress protection
- Detachable/adjustable mounting feet provide flexible mounting alternatives for ease of installation, no need to replace the entire enclosure if a mounting foot is broken
- Stainless steel hinges easy internal access for wiring and maintenance
- (2) 1/2 in NPT conduit entries, one on top and one on bottom for field addition of breather and/or drain or for use with auxiliary contacts, holes come plugged with EATON Crouse-Hinds PLG explosion proof plug as standard
- Provides lockout/tagout capability which complies with OSHA requirements, allowing for locking in the ON or OFF position for standard maintenance checks
- Complies with National Electric Code article 312 wire bending requirements for maximum wire gauge allows for easy and safe installation and reliable operation of the product
EIDAF3060 Standards
Class I, Div 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Class II, Div 1, Groups E, F, G, Class III|UL 1203|cUL Listed|CSA C22.2 File No. 30|NEC Compliant|CEC CertifiedSKU #2290121Part Number #EIDAF3060UNSPSC39122233UPC00662276473492
