ENR22202

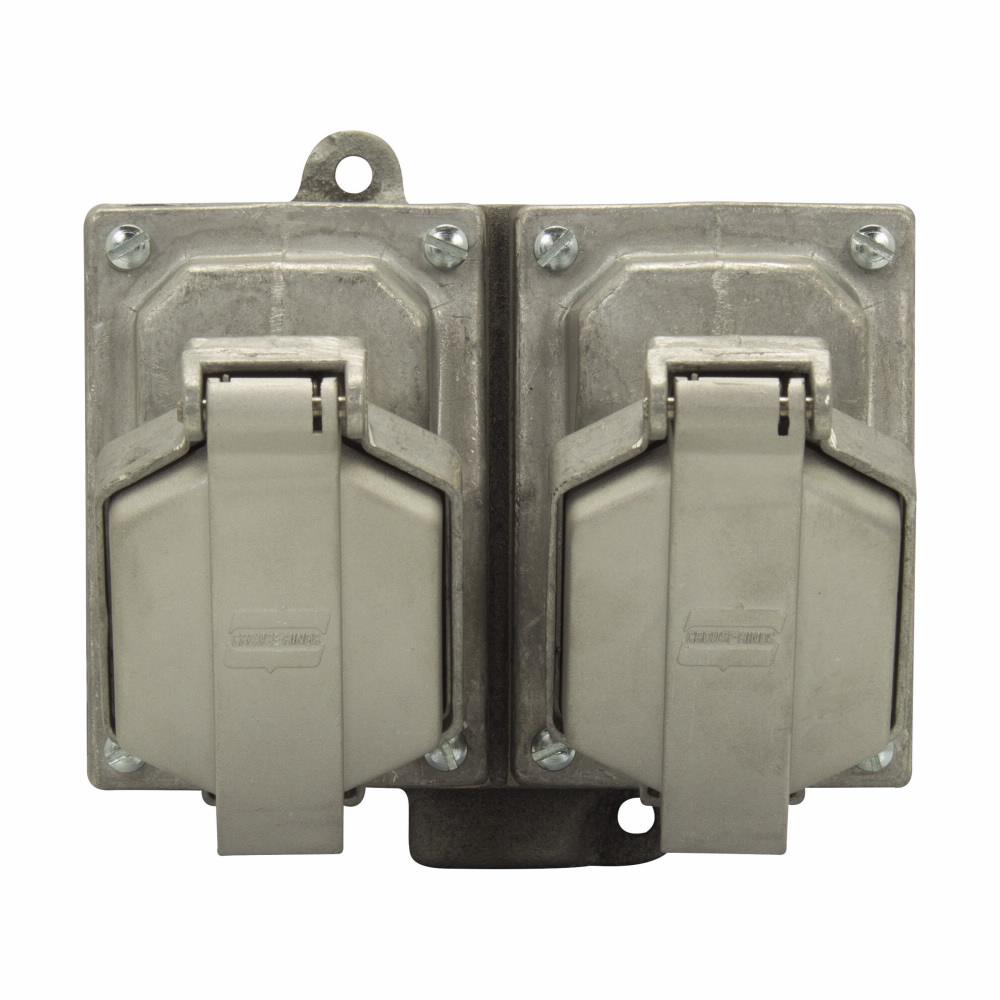

Crouse Hinds ENR22202 Receptacle Assembly
Part Number # ENR22202
SKU # 2239460
$2055.20 / Each
Typical price:$2712.86 / Each
Crouse Hinds ENR22202 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | ENR22202 |
| SKU #: | 2239460 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 7-9/16 in L x 8 in W x 6-23/32 in H |
| Frequency Rating: | 50 to 400 |
| NEMA Rating: | NEMA 3/7B/7C/7D/9F/7G/12 |
| Series: | ENR Value |
| Type: | 2-Gang Dead End Dust-Ignitionproof Explosionproof Raintight Interlocked, 2-Gang Dead End Explosionproof/Dust Ignitionproof Interlocked Raintight |
| Country of origin: | US |
| Material: | Die Cast Copper Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274311043 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2055.20 / Each
Typical price:$2712.86 / Each
Quantity:
- Crouse-Hinds Ark Gard Receptacle Assembly, 2-Gang Dead End Dust-Ignitionproof Explosionproof Raintight Interlocked, Series: ENR Value, 250 VAC, 20 A, 7-9/16 in L x 8 in W x 6-23/32 in H Dimensions
ENR22202 Application
For portable electrical equipment such as compressors, tools, lighting systems, similar devices, also used in areas made hazardous by the presence of flammable vapors and gases or combustible dusts, damp, wet, dirty and corrosive location, industrial facilities, factories facility, power distribution and control applicationsENR22202 Includes
3/4 in HubENR22202 Item Features
- Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints
- These threads are specially coated to guarantee freedom of movement, which ensures ON/OFF action, no additional seals are required
- One piece molded gasket seals cover plate and ENP plug when plug is inserted, providing full environmental protection at the receptacle face
- Top hinged cover design with 45 deg downward angle provides superior protection in damp, wet and dirty locations
- Field assembly is accomplished with standard tools
- Use standard EDS back boxes
ENR22202 Standards
UL Listed for Wet Locations|Class I, Division 1/2, Group B/C/D, Class II, Division 1/2, Group F/G, Class III|UL 1010|CSA CertifiedENR22202 Warranty
LimitedSKU #2239460Part Number #ENR22202UNSPSC39121406UPC00782274311043
