Part Number # ENRC22201
SKU # 165083
Image Disclaimers Message
ENRC22201

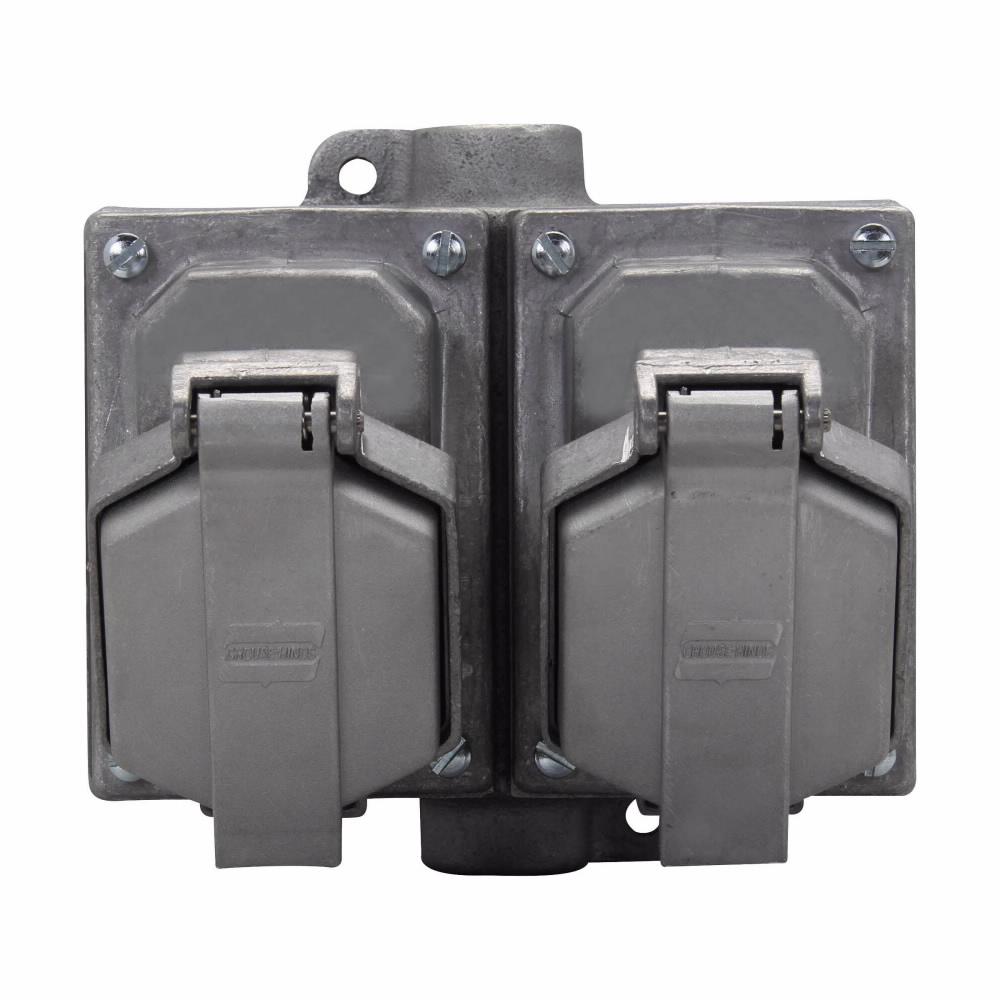

Crouse Hinds ENRC22201 Receptacle Assembly
Part Number # ENRC22201
SKU # 165083
$2075.67 / Each
Typical price:$2739.88 / Each
Crouse Hinds ENRC22201 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | ENRC22201 |
| SKU #: | 165083 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 7-9/16 in L x 8 in W x 6-23/32 in H |
| Frequency Rating: | 50 to 400 |
| NEMA Rating: | NEMA 3/7B/7C/7D/9E/9F/7G/12 |
| Series: | ENR Value |
| Type: | 2-Gang Dust-Ignitionproof Explosionproof Raintight Feed Through Interlocked, 2-Gang Explosionproof/Dust Ignitionproof Feed-Through Interlocked Raintight |
| Country of origin: | US |
| Material: | Die Cast Copper Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274311210 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2075.67 / Each
Typical price:$2739.88 / Each
Quantity:
- Crouse-Hinds Ark Gard Receptacle Assembly, 2-Gang Dust-Ignitionproof Explosionproof Raintight Feed Through Interlocked, Series: ENR Value, 125 VAC, 20 A, 7-9/16 in L x 8 in W x 6-23/32 in H Dimensions
ENRC22201 Application
For portable electrical equipment such as compressors, tools, lighting systems, similar devices, also used in areas made hazardous by the presence of flammable vapors and gases or combustible dusts, damp, wet, dirty and corrosive location, refineries, chemical plants, LNG facilities, wastewater treatment facilities, drilling and exploration, industrial facilities, factories facility, power distribution and control applicationsENRC22201 Includes
3/4 in HubENRC22201 Item Features
- Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints
- These threads are specially coated to guarantee freedom of movement, which ensures ON/OFF action, no additional seals are required
- One piece molded gasket seals cover plate and ENP plug when plug is inserted, providing full environmental protection at the receptacle face
- Top hinged cover design with 45 deg downward angle provides superior protection in damp, wet and dirty locations
- Field assembly is accomplished with standard tools
- Use standard EDS back boxes
ENRC22201 Standards
ANSI Specified|UL 1010|NEC Certified|CEC Certified|Class I, Division 1/2, Group B/C/D, Class II, Division 1/2, Group G, Class III|UL 943/1203|CSA C22.2ENRC22201 Warranty
LimitedSKU #165083Part Number #ENRC22201UNSPSC39121406UPC00782274311210
