Part Number # EPC6042042WT2003
SKU # 2451878
Image Disclaimers Message
EPC6042042WT2003
Crouse Hinds EPC6042042WT2003
Part Number # EPC6042042WT2003
SKU # 2451878
Crouse Hinds EPC6042042WT2003 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EPC6042042WT2003 |
| SKU #: | 2451878 |
| Amperage Rating: | 200 A |
| Dimensions: | 18 in W x 27 in D x 36 in H |
| NEMA Rating: | NEMA 3/12/7CD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | EPC |
| Type: | Dust-Ignitionproof Grounding Style 2 Explosionproof Raintight |
| Country of origin: | DO |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274025353 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EPC6042042WT2003
Brand: Crouse Hinds
Part Number: EPC6042042WT2003

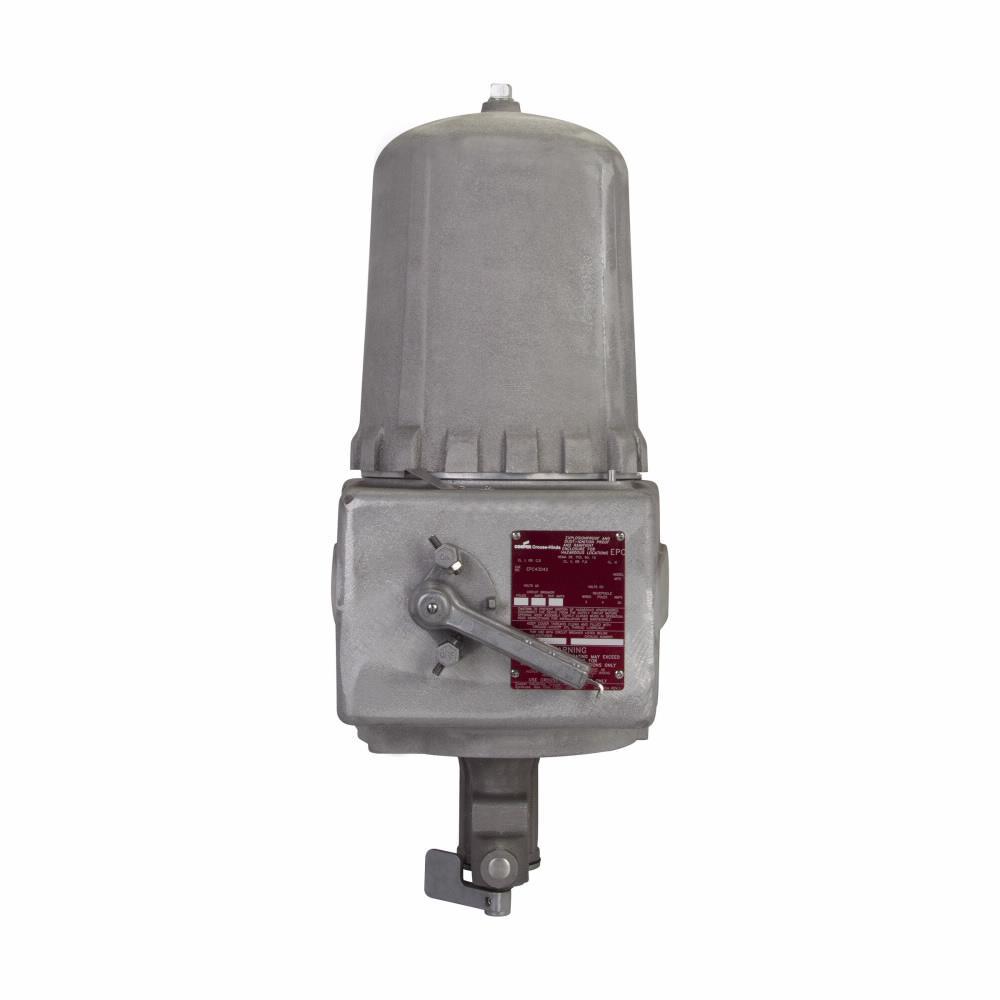

Crouse-Hinds Arktite® Interlocked Receptacle, Dust-Ignitionproof Grounding Style 2 Explosionproof Raintight, Series: EPC, 600 VAC, 250 VDC, 200 A, 4 Pole, 3 Wires, NEMA 3/12/7CD/9FG NEMA Rating, Copper-Free Aluminum, Natural, 18 in W x 27 in D x 36 in H Dimensions
Additional Description: CRHD-EPC604 2042 WT200 3 (N) EPC 200 AMP-INTERLOCK RECP & P NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Arktite EPC interlocked receptacle, 200A, 200A circuit breaker, 3-wire, 4-pole, With breaker, 225A frame, Style 2, Cutler-Hammer, Copper-free alum, Spring door, 3", Interchangeable thermal trip, 600 Vac/250 Vdc
EPC6042042WT2003 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Indoor, Outdoor, Damp, Wet and Corrosive Location ApplicationsEPC6042042WT2003 Item Features
- Mechanical interlock mechanism for dead front construction
- Receptacles are mechanically interlocked with circuit breakers to provide disconnect means, short circuit protection and thermal time delay overload protection
- A spring door receptacle, located at bottom of 30, 60 and 100 a units and at front of 200 a units, is mechanically interlocked with the circuit breaker operating mechanism for maximum safety
- Plug and receptacle contacts cannot be made or broken under load
- The circuit breaker cannot be closed until the plug is fully inserted and the plug cannot be withdrawn unless the breaker is open
- Operating handles can be padlocked in either on or off positions
- Breakers are trip-free of the handles and will open under short circuit or overload even if the handle is locked in the on position
- Quick installation and leveling is provided by the three-point mounting arrangement which has one keyhole slot at top and two open slots at bottom
- Bodies have four taper tapped conduit hubs with integral bushings, two are located at top and two directly below
- 3 in hub
EPC6042042WT2003 Standards
NEC Certified|ANSI Specified|UL Listed|CEC CertifiedSKU #2451878Part Number #EPC6042042WT2003UNSPSC39121406UPC00782274025353
