Part Number # EYD2SA
SKU # 2435838
Image Disclaimers Message
EYD2SA
Crouse Hinds EYD2SA
Part Number # EYD2SA
SKU # 2435838
$176.24 / Each
Typical price:$232.64 / Each
Crouse Hinds EYD2SA Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EYD2SA |
| SKU #: | 2435838 |
| Dimensions: | 3-11/16 in L x 1-1/2 in W |
| Finish: | Natural |
| Series: | EYD |
| Size: | 3/4 in FNPT |
| Suitable For Use With: | Vertical Position Conduit System |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274275628 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$176.24 / Each
Typical price:$232.64 / Each
Quantity:
Crouse Hinds EYD2SA
Brand: Crouse Hinds
Part Number: EYD2SA

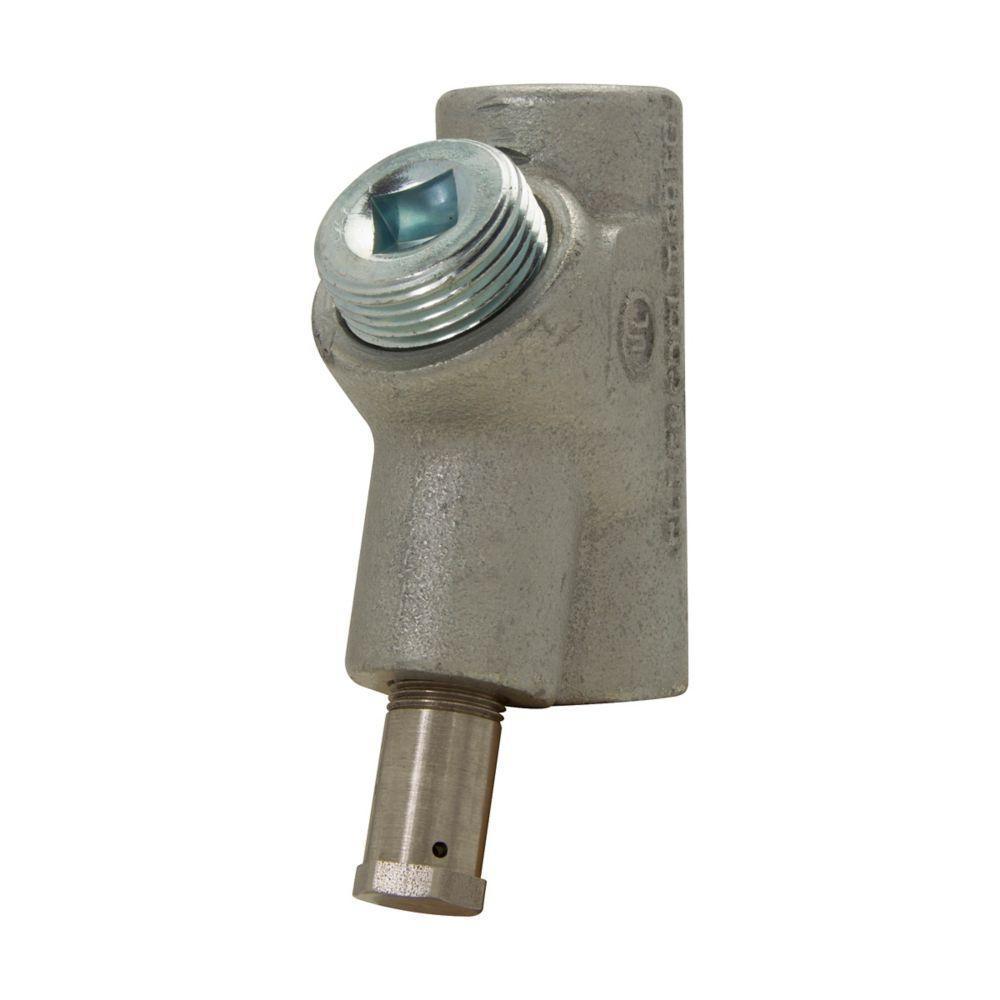

EATON Crouse-Hinds Condulet® Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: EYD, 3/4 in FNPT, For Use With: Vertical Position Conduit System, Surface Mount, Copper-Free Aluminum, Natural, 3-11/16 in L x 1-1/2 in W
Additional Description: CRHD-EYD2 SA 3/4 NPT THRU FEMALE ALUM DRAIN SEAL
Catalog Description: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Female, Copper-free aluminum, Vertical only, 3/4"
EYD2SA Application
Industry Facilities and Factories ApplicationsEYD2SA Item Features
- Drain to provide continuous, automatic drainage of condensate
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Prevent pre-compression or pressure piling
- Drain sealing fittings are installed in vertical conduit runs and at low points in conduit systems to prevent accumulation of condensate above seal
- Stainless steel drain, steel removable nipples, Feraloy iron alloy and/or steel small closure plug, copper-free aluminum or ductile iron closure for drain
- 1-29/32 in turning radius
EYD2SA Standards
CSA C22.2|Class I, Div 1, 2, Groups B, C, D Class II, Div 1, Groups E, F, G Class II, Div 2, Groups F, G Class III|UL 1203|UL 886SKU #2435838Part Number #EYD2SAUNSPSC39131708UPC00782274275628
