Part Number # EYD416
SKU # 2313628
EYD416

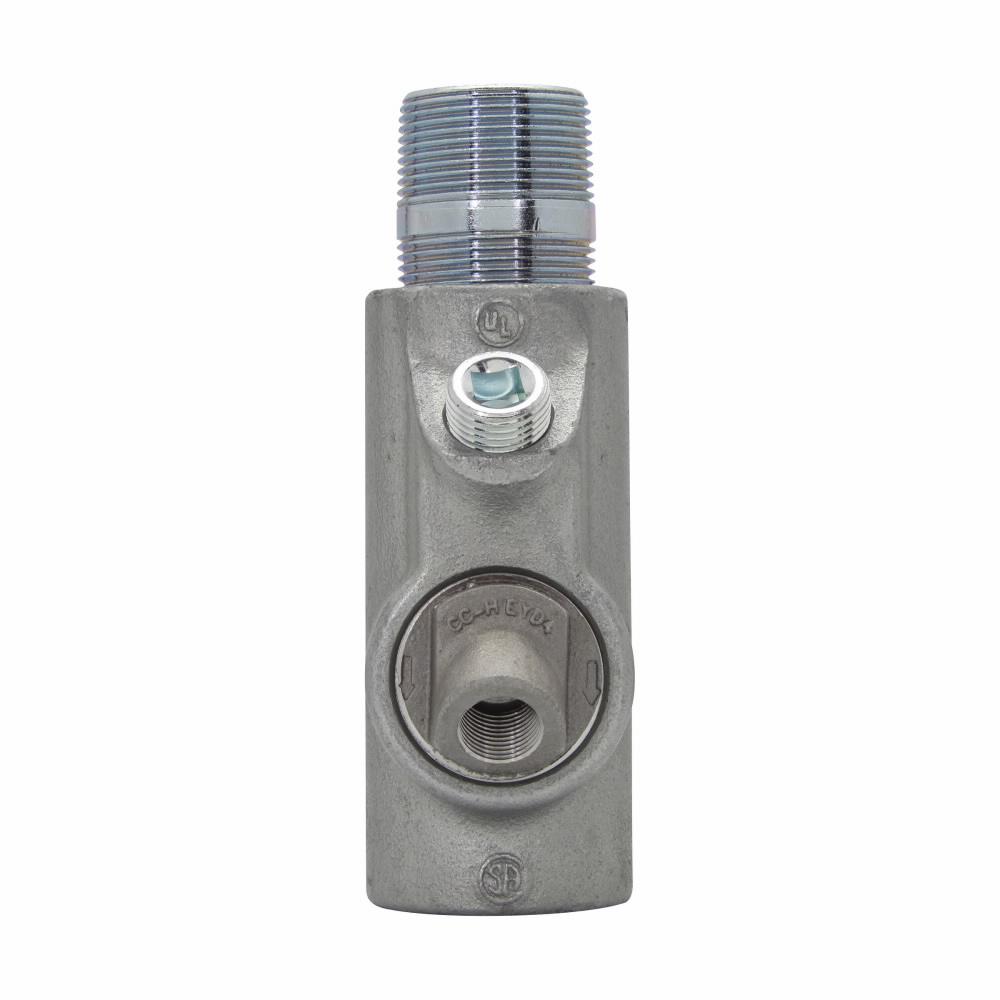

Crouse Hinds EYD416 Conduit Sealing Fitting
Part Number # EYD416
SKU # 2313628
Crouse Hinds EYD416 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EYD416 |
| SKU #: | 2313628 |
| Dimensions: | 2-3/16 in W x 5-1/16 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized, Electro-Galvanized |
| Series: | EYD |
| Size: | 1-1/4 in MNPT x 1-1/4 in FNPT, 1-1/4 in NPT |
| Suitable For Use With: | Vertical Position Conduit System |
| Type: | Dust-Ignitionproof Explosionproof, Dust-Ignitionproof Explosionproof Male/Female Hub |
| Country of origin: | US |
| Material: | Ductile Iron/Feraloy Iron Alloy, Ductile Iron/Feraloy® Iron Alloy, Feraloy® Iron Alloy/Ductile Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274365190 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EYD416 Conduit Sealing Fitting
Brand: Crouse Hinds
Part Number: EYD416
EATON Crouse-Hinds Condulet Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: EYD, 1-1/4 in MNPT x 1-1/4 in FNPT, For Use With: Vertical Position Conduit System, Surface Mount, Ductile Iron/Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 2-3/16 in W x 5-1/16 in H
Additional Description: CRHD-EYD416 (N) 1 1/4 SEALING FITTING WITH DRAIN CST IRON DRAIN SEAL NON-CANCELABLE, NON-RETURNABLE CST IRO
Catalog Description: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Male and female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 1-1/4"
EYD416 Application
Industry Facilities and Factories ApplicationsEYD416 Item Features
- Drain to provide continuous, automatic drainage of condensate
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Prevent pre-compression or pressure piling
- Drain sealing fittings are installed in vertical conduit runs and at low points in conduit systems to prevent accumulation of condensate above seal
- Stainless steel drain, steel removable nipples, Feraloy iron alloy and/or steel small closure plug, copper-free aluminum or ductile iron closure for drain
- 1-27/32 in turning radius with cover removed
EYD416 Standards
CSA C22.2|Class I, Div 1, 2, Groups B, C, D Class II, Div 1, Groups E, F, G Class II, Div 2, Groups F, G Class III|UL 1203|UL 886SKU #2313628Part Number #EYD416UNSPSC39131708UPC00782274365190
Image provided may only be a representation of final product and may include optional equipment
