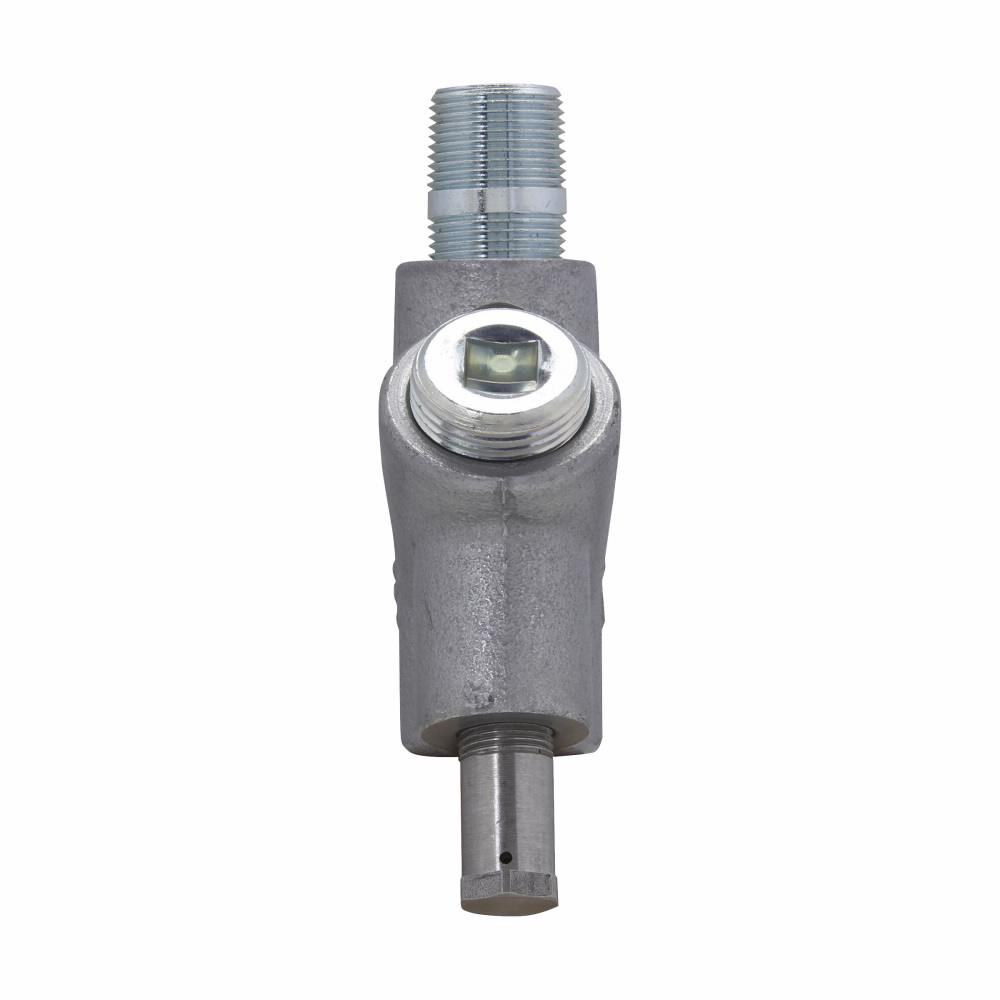

Crouse Hinds EYD86 Conduit Sealing Fitting
Part Number # EYD86
SKU # 2200134
Crouse Hinds EYD86 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EYD86 |
| SKU #: | 2200134 |
| Dimensions: | 4-1/4 in W x 8-1/2 in H, 8-1/2 in H x 4-1/4 in W |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized, Electro-Galvanized/Aluminum Acrylic Painted |
| Series: | EYD |
| Size: | 3, 3 in MNPT x 3 in FNPT |
| Suitable For Use With: | Conduit System |
| Material: | Ductile Iron/Feraloy Iron Alloy, Ductile Iron/Feraloy® Iron Alloy |
| Mounting type: | Vertical |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274376707 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EYD86 Conduit Sealing Fitting
Brand: Crouse Hinds
Part Number: EYD86
EATON Crouse-Hinds Condulet Conduit Sealing Fitting, Series: EYD, 3 in MNPT x 3 in FNPT, For Use With: Conduit System, Vertical Mount, Ductile Iron/Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 4-1/4 in W x 8-1/2 in H
Additional Description: CRHD-EYD86 3 NPT THRU MALE/FEMALE CST IRON DRAIN SEAL
Catalog Description: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Male and female, Feraloy iron alloy and/or ductile iron, Vertical only, 3"
EYD86 Application
For restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems, industry facilities and factories applicationsEYD86 Item Features
- Drain to provide continuous, automatic drainage of condensate
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
EYD86 Standards
Class I, Div 1 2, Group C D|Class II, Div 1 2, Group E F G, Class III|UL 886/1203|CSA C22.2SKU #2200134Part Number #EYD86UNSPSC39131708UPC00782274376707
