Part Number # EYS29
SKU # 2231012

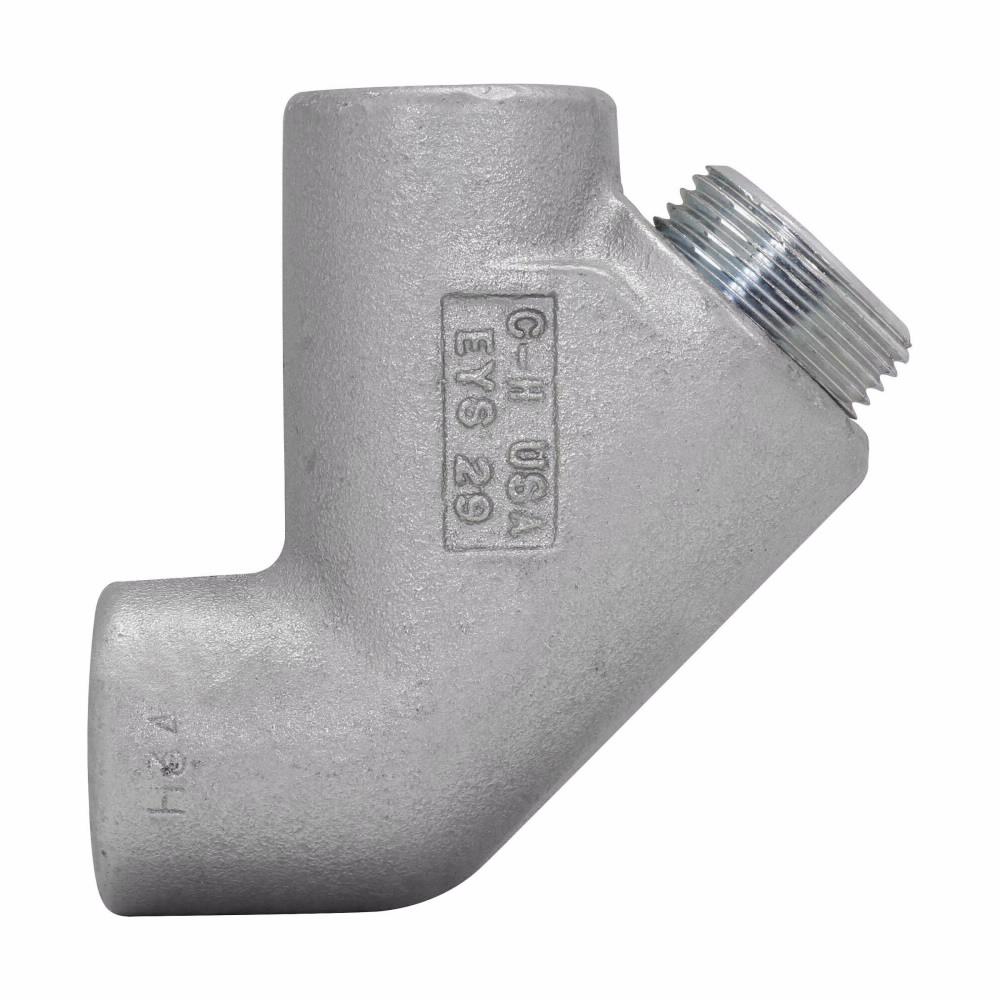

Image provided may only be a representation of
final product and may include optional equipment
EYS29
Crouse Hinds EYS29 Conduit Sealing Fitting
Part Number # EYS29
SKU # 2231012
Crouse Hinds EYS29 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EYS29 |
| SKU #: | 2231012 |
| Dimensions: | 1-3/4 in W x 3-11/16 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | EYS |
| Size: | 3/4 in FNPT |
| Suitable For Use With: | Conduit System |
| Type: | Vertical |
| Material: | Ductile Iron/Feraloy Iron Alloy, Ductile Iron/Feraloy® Iron Alloy |
| Mounting type: | Vertical |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274378800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EYS29 Conduit Sealing Fitting
Brand: Crouse Hinds
Part Number: EYS29
Crouse-Hinds Conduit Sealing Fitting, Vertical, Series: EYS, 3/4 in FNPT Size, For Use With: Conduit System, Vertical Mounting, Ductile Iron/Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 1-3/4 in W x 3-11/16 in H Dimensions
Additional Description: CRHD-EYS29 3/4 ELBOW SEAL VERTICAL POSITION
Catalog Description: Eaton Crouse-Hinds series EYS conduit sealing fitting, Feraloy iron alloy and/or ductile iron, Vertical only, 3/4", Elbow seal
EYS29 Application
For restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems, industry facilities and factories applicationsEYS29 Item Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
EYS29 Standards
NEC Certified|CEC Certified|Class I, Division 1/2, Group C/D, Class II, Division 1/2, Group E/F/G, Class III|UL 886/1203|CSA C22.2SKU #2231012Part Number #EYS29UNSPSC39131708UPC00782274378800
