EYS8SA
Crouse Hinds EYS8SA
Part Number # EYS8SA
SKU # 2455223
Crouse Hinds EYS8SA Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | EYS8SA |
| SKU #: | 2455223 |
| Dimensions: | 8-1/6 in L x 4-1/4 in W |
| Series: | EYS |
| Suitable For Use With: | Vertical/Horizontal Positions Conduit System |
| Type: | Dust-Ignitionproof Explosionproof |
| UNSPSC: | 39131708 |
| UPC: | 00782274275796 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds EYS8SA
Brand: Crouse Hinds
Part Number: EYS8SA

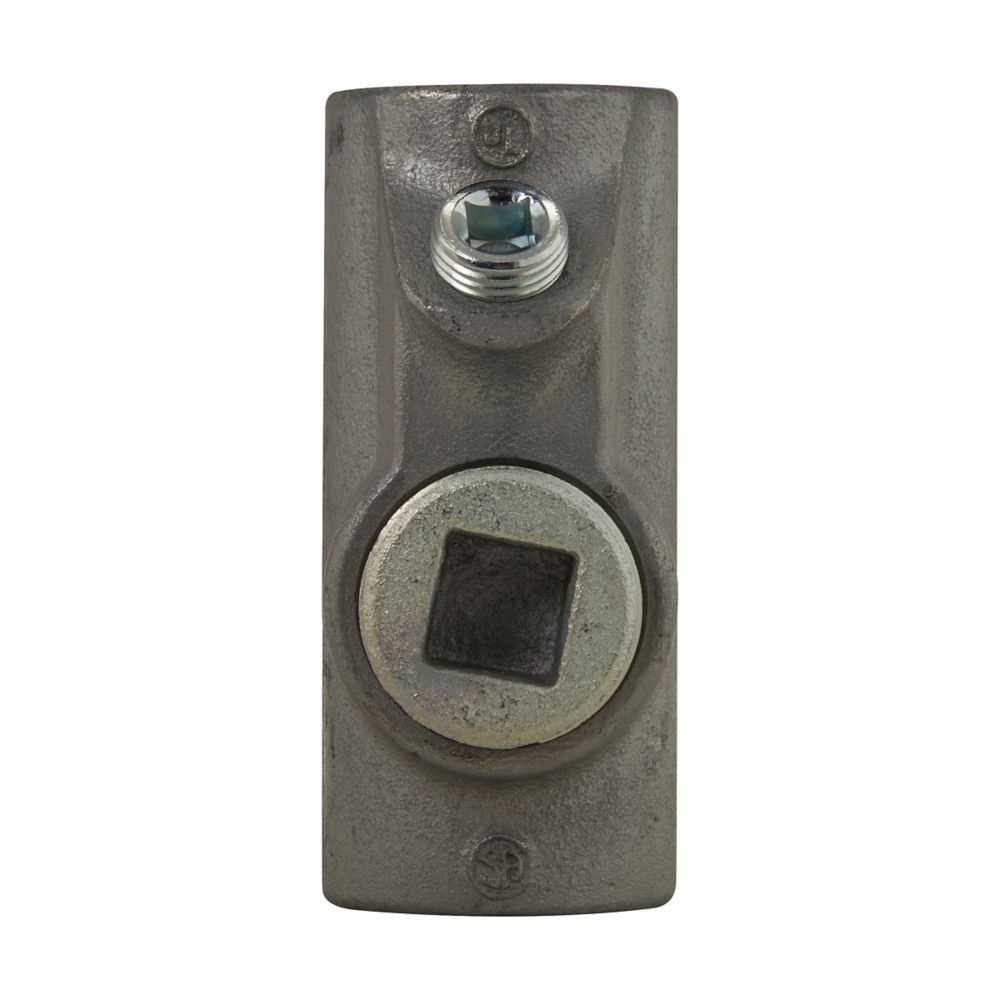

EATON Crouse-Hinds Condulet Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: EYS, 3 in FNPT, For Use With: Vertical/Horizontal Positions Conduit System, Surface Mount, Copper-Free Aluminum, Natural, 8-1/6 in L x 4-1/4 in W
Additional Description: CRHD-EYS8 SA (N) 3 NPT THRU FEMALE ALUM VERT/HORZ SEAL FTG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series EYS conduit sealing fitting, Female, Copper-free aluminum, Vertical or horizontal, 3"
EYS8SA Application
Industry Facilities and Factories ApplicationsEYS8SA Item Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Limit pre-compression or pressure piling in conduit systems
- Feraloy iron alloy and/or steel plugs, steel removable nipples
- 3-5/16 in turning radius
EYS8SA Standards
CSA C22.2|Class I, Div 1, 2, Groups B, C, D Class II, Div 1, Groups E, F, G Class II, Div 2, Groups F, G Class III|UL 1203|UL 886SKU #2455223Part Number #EYS8SAUNSPSC39131708UPC00782274275796
Image provided may only be a representation of final product and may include optional equipment
