Crouse Hinds GHG5154407L3001 Ceag Pin And Sleeve Receptacle
Part Number # GHG5154407L3001
SKU # 2391494
GHG5154407L3001
Crouse Hinds GHG5154407L3001 Ceag Pin And Sleeve Receptacle
Part Number # GHG5154407L3001
SKU # 2391494
Crouse Hinds GHG5154407L3001 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GHG5154407L3001 |
| SKU #: | 2391494 |
| Amperage Rating: | 100 A |
| Dimensions: | 21.1 in L x 8.9 in W |
| Enclosure: | NEMA 4X/12/IP66 |
| Frequency Rating: | 400 Hz |
| Number of Wires: | 3 |
| Type: | 3-Phase Hazardous Heavy Duty Interlock Wall Socket |
| Material: | Nylon 12 |
| UNSPSC: | 39121406 |
| UPC: | 00050217436475 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds GHG5154407L3001 Ceag Pin And Sleeve Receptacle
Brand: Crouse Hinds
Part Number: GHG5154407L3001
CEAG Pin and Sleeve Receptacle, 3-Phase Hazardous Heavy Duty Interlock Wall Socket, 480 VAC, 100 A, 400 Hz, 4 Poles, 3 Wires, NEMA 4X/12/IP66 Enclosure, -20 to 40 deg C, Nylon 12, 21.1 in L x 8.9 in W
Additional Description: CRHD-GHG5154407L3001 (N) NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 100A, Three-wire, four-pole, Nylon, 1-1/2", 3 phase 480 Vac
GHG5154407L3001 Application
Chemical Plants, Mining, Drilling, Steel/Grain/Flour Mills, Pharmaceuticals and Portable PowerGHG5154407L3001 Item Features
- Color coded receptacle cover and plug
- Rain shedding watertight profile
- Fiber-reinforced nylon type 12 impact and corrosion resistant enclosure and plug
- Dual bottom entries in NPT or metric thread for cable or conduit
- Molded in place mounting feet
- Nickel plated brass contacts offer long-life corrosion protection
- Compression lugs provide reliable mechanical wire termination
- Locking finger seats into web pockets securing back cap in place even under heavy usage and vibration
- Simple "insert plug and twist" design to activate internal switch
- Self-cleaning multi-lam contacts provide reliable power connection
- Compact size, easy to handle and install
- OSHA lockout/tagout
- Dual bottom entry zone 1 Myers hubs
- Full wiring access, saves time and money
GHG5154407L3001 Standards
IEC 309|Class I/Zone 1/2/Division 2/Group A/B/C/D/Class II Division 1 Group E/F/G|GOST-R|EEx ed IIC T6|AEx de IIC T6|PTB 99 ATEx 1039|CE Certified|VDE Certified|CSA 2089057SKU #2391494Part Number #GHG5154407L3001UNSPSC39121406UPC00050217436475

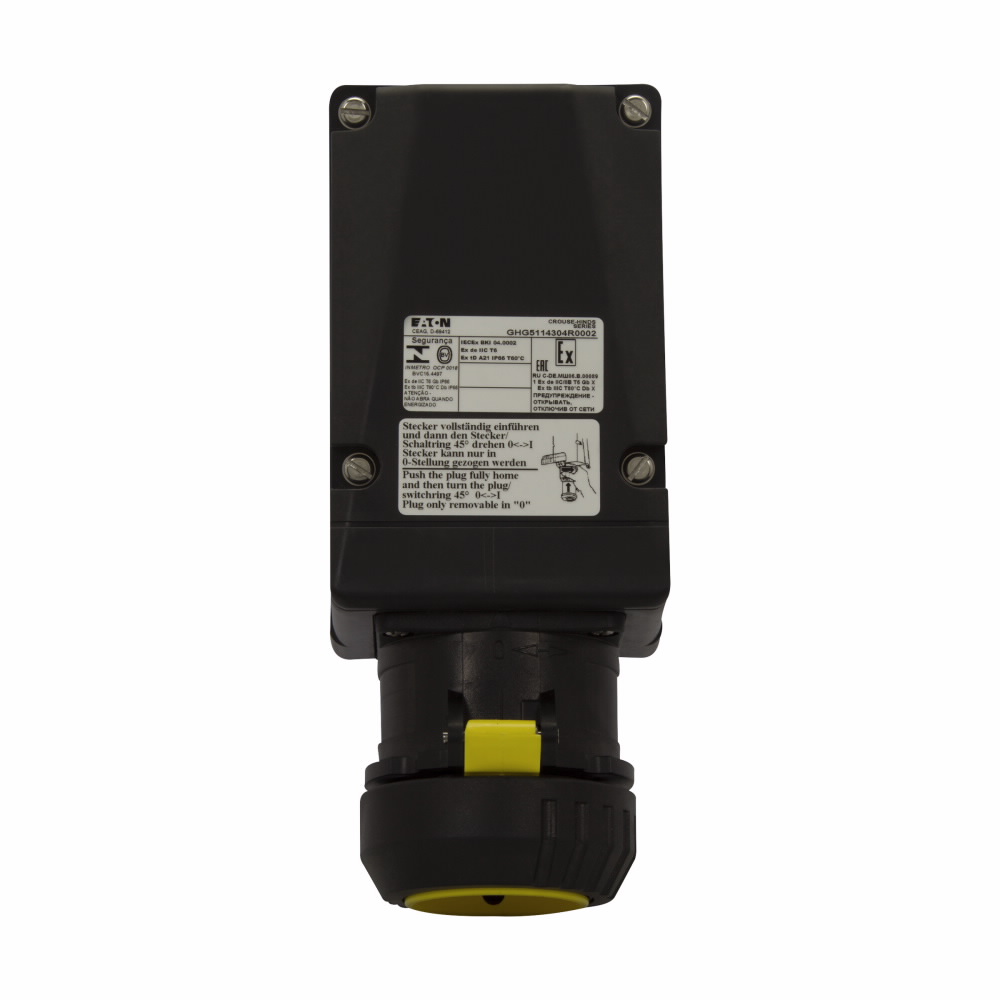

Image provided may only be a representation of final product and may include optional equipment
