Part Number # GUA14
SKU # 2337837
Image Disclaimers Message
GUA14

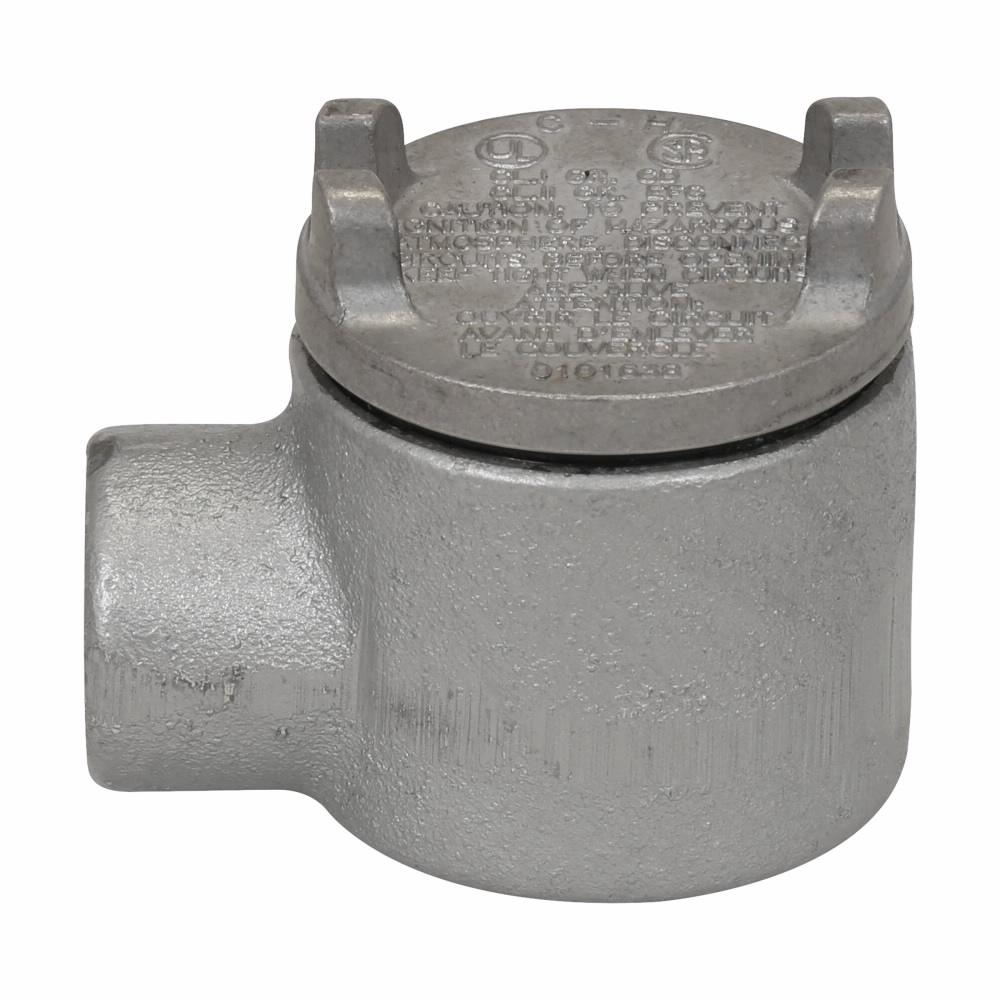

Crouse Hinds GUA14 Conduit Outlet Box
Part Number # GUA14
SKU # 2337837
$214.60 / 2Each
Typical price:$283.28 / Each
Crouse Hinds GUA14 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GUA14 |
| SKU #: | 2337837 |
| Capacity: | 5, 5 cu-in |
| Cover Opening Size: | 2, 2 in |
| Dimensions: | 2-1/2 in W |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | GUA |
| Size: | 1/2 in |
| Suitable For Use With: | Rigid Conduit, Rigid Conduits |
| Type: | Dust-Ignitionproof Explosionproof Raintight, Explosionproof/Dust Ignitionproof Raintight |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Pad |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121308 |
| UPC: | 00782274460208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$214.60 / 2Each
Typical price:$283.28 / Each
Quantity:
Crouse Hinds GUA14 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: GUA14
EATON Crouse-Hinds Condulet Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GUA, 1/2 in, 2 in Cover Opening Size, 5 cu-in Capacity, For Use With: Rigid Conduits, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 2-1/2 in W
Additional Description: CRHD-GUA14 1/2 DEAD END CST IRON DIV 1 RND BASE OUTLET W/ 2"" COV OUTLET 2" CVR
Catalog Description: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 2" cover opening diameter, Feraloy iron alloy, 1/2"
GUA14 Application
Used to Protect conductors in threaded rigid conduit, act as pull and splice boxes, connect lengths of conduit, change conduit direction, provide access to conductors for maintenance and future system changes, act as mounting outlets for fixtures, act as sealing fittings and wet locations, industry facilities and factories applicationsGUA14 Item Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Four standard mounting pads except for boxes with bottom hubs
- Threaded cover openings
- Ten different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
- Cover threads are 12 pitch
GUA14 Standards
UL 886|UL 1203|CSA C22.2 File No. 30|ANSI C33.27|NEC Compliant|CEC Class I Div 1 and 2, Group B, C, D|Class II, Div 1, Group E, F, G, Class II, Div 2, Group F, G, Class IIISKU #2337837Part Number #GUA14UNSPSC39121308UPC00782274460208
