Brand: Crouse Hinds

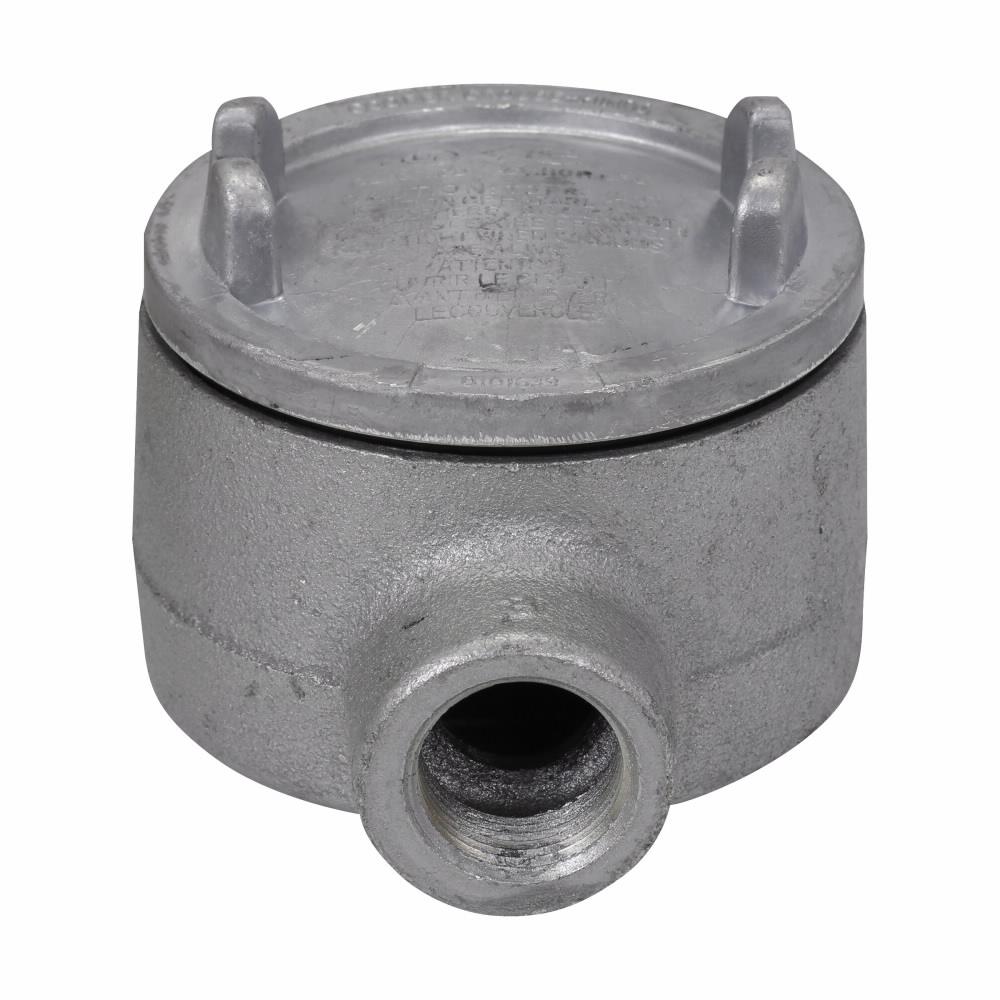

Crouse Hinds GUAB47 Conduit Outlet Box
Part Number # GUAB47
SKU # 10603

Brand: Crouse Hinds
GUAB47
Crouse Hinds GUAB47 Conduit Outlet Box
Part Number # GUAB47
SKU # 10603
$282.53 / Each
Typical price:$372.94 / Each
Crouse Hinds GUAB47 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GUAB47 |
| SKU #: | 10603 |
| Cover Opening Size: | 3-5/8 in |
| Dimensions: | 4-1/4 in W x 2-3/4 in D x 4-1/4 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | GUA |
| Type: | Type CB Dust-Ignitionproof Explosionproof Raintight |
| Material: | Feraloy Iron Alloy |
| Mounting type: | Pad |
| UNSPSC: | 39121308 |
| UPC: | 00782274461601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$282.53 / Each
Typical price:$372.94 / Each
Quantity:
- EATON Crouse-Hinds Condulet Conduit Outlet Box, Type CB Dust-Ignitionproof Explosionproof Raintight, Series: GUA, 1-1/4 in, 3-5/8 in Cover Opening Size, 27.5 cu-in Capacity, For Use With: Rigid Conduits, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 4-1/4 in W x 2-3/4 in D x 4-1/4 in H
GUAB47 Application
Industrial Facilities, Factories and Wet LocationsGUAB47 Item Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Threaded cover openings
- Ten different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
- Cover threads are 12 pitch standard, 16 pitch ON select aluminum shapes and sizes
- Act as pull and splice boxes
- Connect lengths of conduit
- Change direction of conduit
- Provide access to conductors for maintenance and future system changes
- Act as mounting outlets for fixtures
- Act as sealing fittings
- (1) side, (1) down cable entrys
GUAB47 Standards
CSA C22.2|UL 886|Class I, Div 1, 2, Group C, D, Class II, Div 1, Groups E, F, G, Class II, Div 2, Groups F, G, Class IIISKU #10603Part Number #GUAB47UNSPSC39121308UPC00782274461601
Image provided may only be a representation of final product and may include optional equipment
