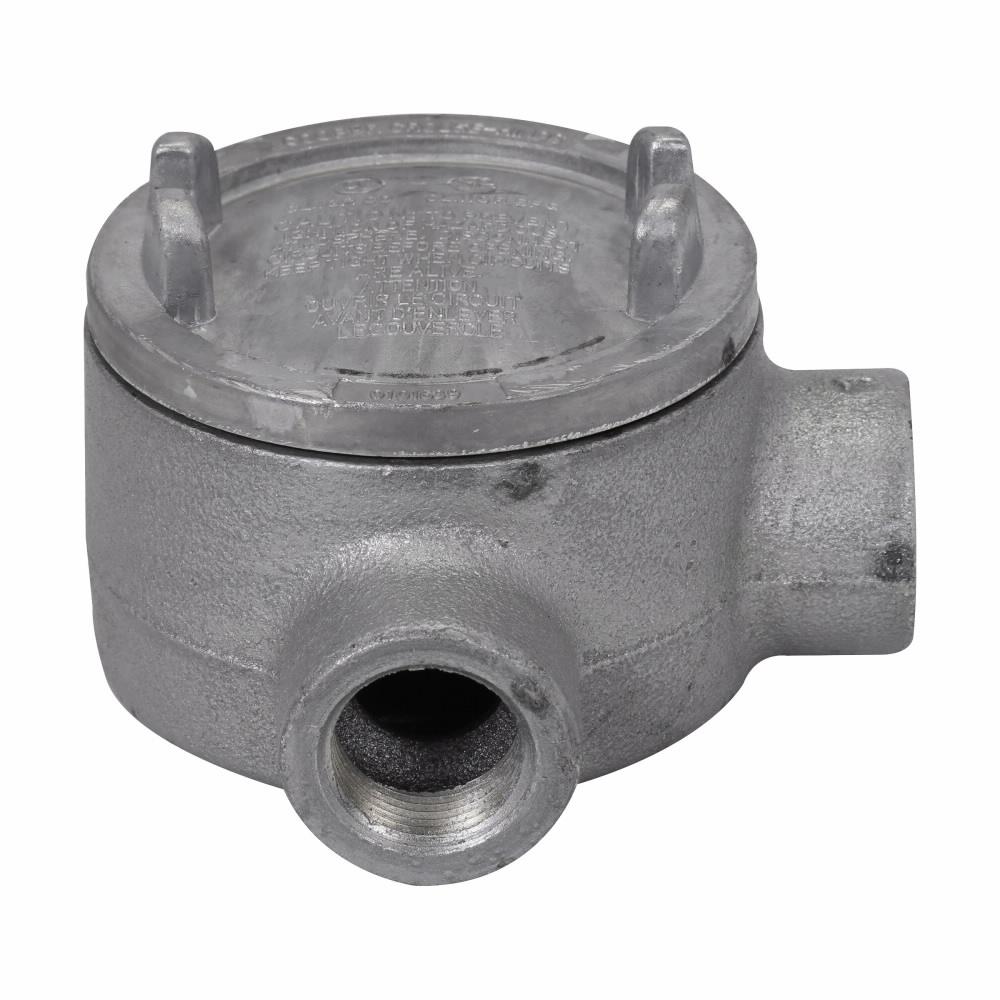

Crouse Hinds GUAL26 Conduit Outlet Box
Part Number # GUAL26
SKU # 10616

GUAL26
Crouse Hinds GUAL26 Conduit Outlet Box
Part Number # GUAL26
SKU # 10616
Crouse Hinds GUAL26 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GUAL26 |
| SKU #: | 10616 |
| Dimensions: | 3-1/2 in W x 1-7/8 in D x 3-1/2 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | GUA |
| Type: | Type L Dust-Ignitionproof Explosionproof Raintight |
| Material: | Feraloy Iron Alloy |
| Mounting type: | Pad |
| UNSPSC: | 39121308 |
| UPC: | 00782274465005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Crouse Hinds GUAL26 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: GUAL26
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type L Dust-Ignitionproof Explosionproof Raintight, Series: GUA, 3/4 in, 3 in Cover Opening Size, 13.5 cu-in Capacity, For Use With: Rigid Conduits, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 3-1/2 in W x 1-7/8 in D x 3-1/2 in H
Additional Description: CRHD-GUAL26 3/4 LR CST IRON DIV 1 RND BASE OUTLET W/ 3"" COV OUTLET 3" CVR OUTLET W/ 3"" COV
Catalog Description: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, L shape, 3/4"
GUAL26 Application
Industrial Facilities, Factories and Wet LocationsGUAL26 Item Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Threaded cover openings
- Ten different hub arrangements
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
- Cover threads are 12 pitch standard, 16 pitch ON select aluminum shapes and sizes
- Act as pull and splice boxes
- Connect lengths of conduit
- Change direction of conduit
- Provide access to conductors for maintenance and future system changes
- Act as mounting outlets for fixtures
- Act as sealing fittings
- (2) side cable entrys
GUAL26 Standards
CSA C22.2|UL 886|Class I, Div 1, 2, Group C, D, Class II, Div 1, Groups E, F, G, Class II, Div 2, Groups F, G, Class IIISKU #10616Part Number #GUAL26UNSPSC39121308UPC00782274465005
Image provided may only be a representation of final product and may include optional equipment
