GUAN26

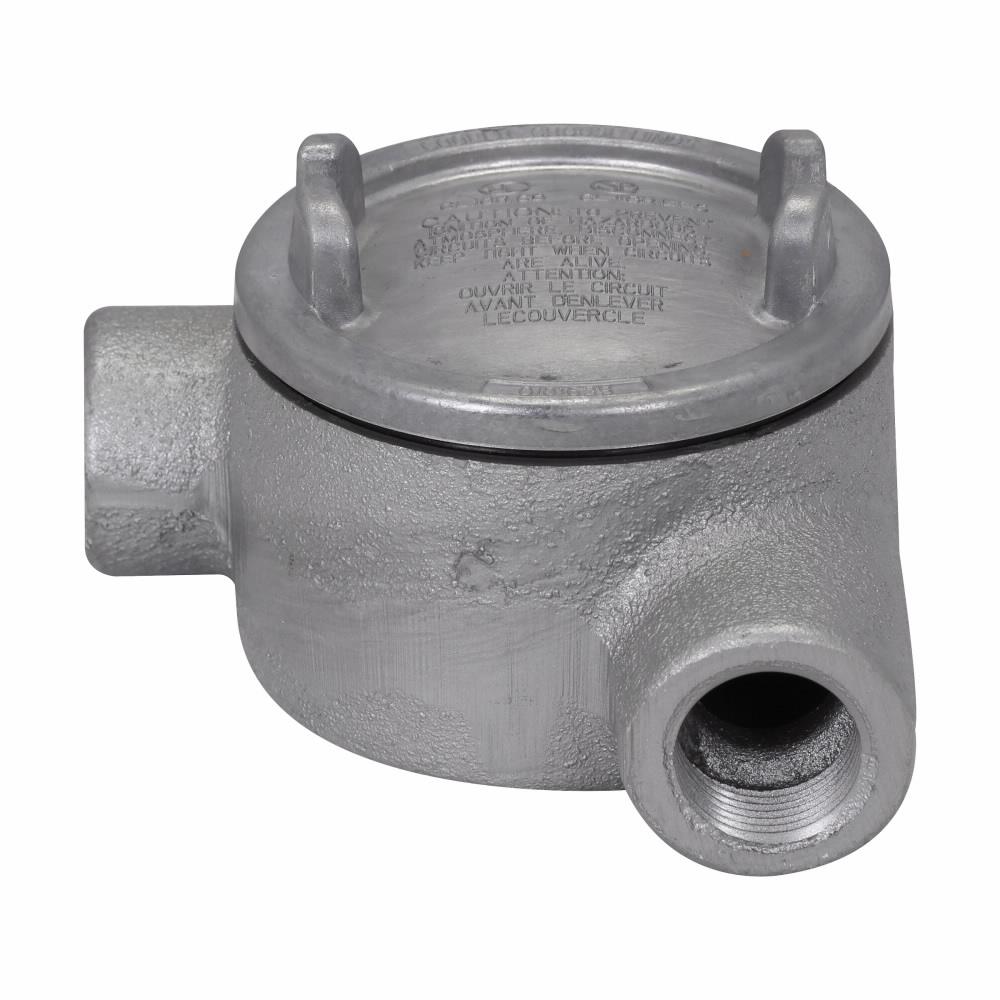

Crouse Hinds GUAN26 Condulet Conduit Outlet Box
Part Number # GUAN26
SKU # 2394066
$145.15 / Each
Typical price:$191.60 / Each
Crouse Hinds GUAN26 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GUAN26 |
| SKU #: | 2394066 |
| Capacity: | 13.5 cu-in |
| Cover Opening Size: | 3 in |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | GUA |
| Size: | 3/4 in |
| Suitable For Use With: | Threaded Rigid Conduit |
| Type: | Type L Shape N |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121308 |
| UPC: | 00782274466507 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.15 / Each
Typical price:$191.60 / Each
Quantity:
Crouse Hinds GUAN26 Condulet Conduit Outlet Box
Brand: Crouse Hinds
Part Number: GUAN26
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type L Shape N, Series: GUA, 3/4 in, 3 in Cover Opening Size, 13.5 cu-in Capacity, For Use With: Threaded Rigid Conduit, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-GUAN26 3/4 LL CST IRON DIV 1 RND BASE OUTLET W/ 3"" COV RIGID/IMC
Catalog Description: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, N shape, 3/4"
GUAN26 Application
Industrial Facilities, Factories and Wet Location ApplicationsGUAN26 Item Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Four standard mounting pads except for boxes with bottom hubs
- Threaded cover openings
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
GUAN26 Standards
NEC Compliant|CEC Certified|Class I, Div 1 2, Group B C D Class II, Div 1, Group E F G, Class II, Div 2, Group F G, Class III|UL 886/1203|ANSI C33.27|CSA C22.2 No. 30|NEMA/EEMAC 3/4SKU #2394066Part Number #GUAN26UNSPSC39121308UPC00782274466507
