Part Number # GUAW14
SKU # 2234940
GUAW14
Crouse Hinds GUAW14 Conduit Outlet Box
Part Number # GUAW14
SKU # 2234940
Crouse Hinds GUAW14 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | GUAW14 |
| SKU #: | 2234940 |
| Cover Opening Size: | 2, 2 in |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Series: | GUA |
| Suitable For Use With: | Threaded Rigid Conduit |
| Type: | Type TA Shape W |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Pad |
| UNSPSC: | 39121308 |
| UPC: | 00782274468204 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds GUAW14 Conduit Outlet Box
Brand: Crouse Hinds
Part Number: GUAW14
EATON Crouse-Hinds Condulet Conduit Outlet Box, Type TA Shape W, Series: GUA, 1/2 in, 2 in Cover Opening Size, 5 cu-in Capacity, For Use With: Threaded Rigid Conduit, Pad Mount, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Additional Description: CRHD-GUAW14 (N) 1/2 OUTLET BX 2 DIA CVR FOR THRD RIGID/IMC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Condulet GUA conduit outlet box with cover, 2" cover opening diameter, Feraloy iron alloy, W shape, 1/2"
GUAW14 Application
Industrial Facilities, Factories and Wet Location ApplicationsGUAW14 Item Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Four standard mounting pads except for boxes with bottom hubs
- Threaded cover openings
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing to protect conductor insulation when pulling
- Surface covers furnished with box
GUAW14 Standards
NEC Compliant|CEC Certified|Class I, Div 1 2, Group B C D Class II, Div 1, Group E F G, Class II, Div 2, Group F G, Class III|UL 886/1203|ANSI C33.27|CSA C22.2 No. 30|NEMA/EEMAC 3/4SKU #2234940Part Number #GUAW14UNSPSC39121308UPC00782274468204

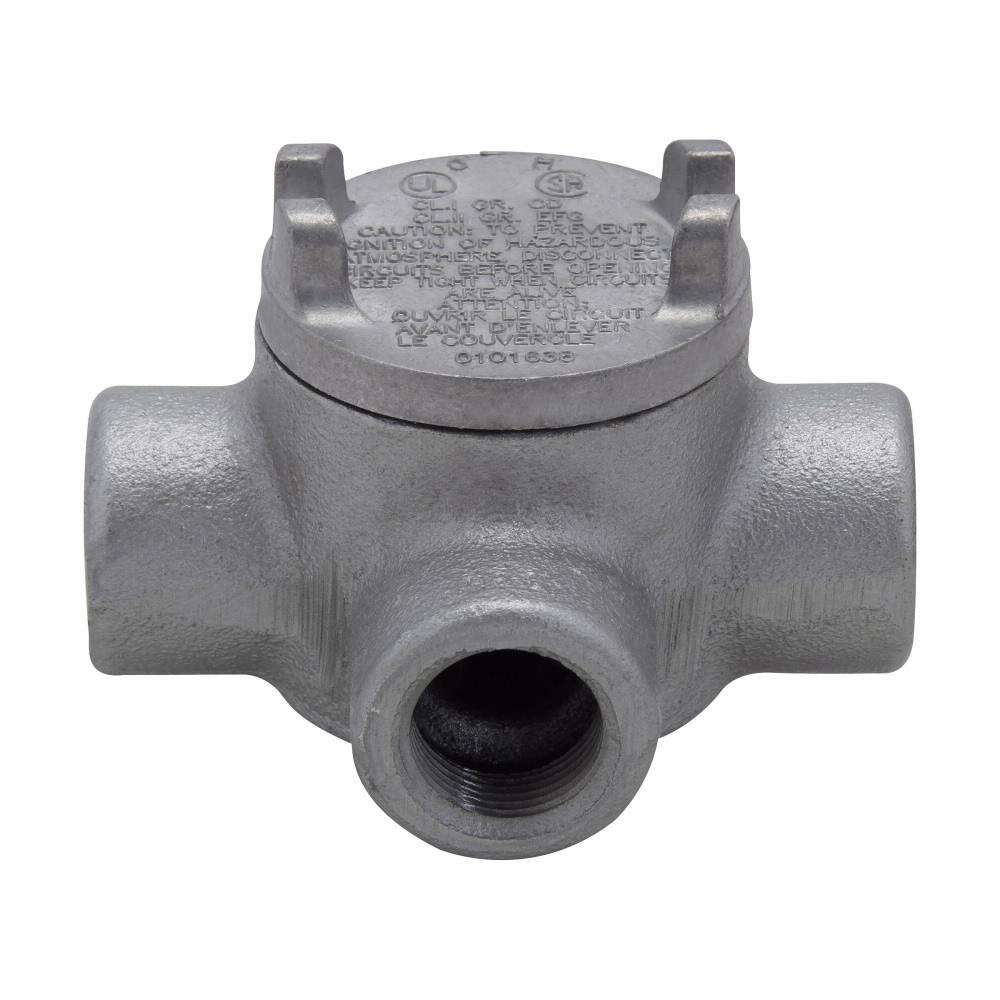

Image provided may only be a representation of final product and may include optional equipment
