Part Number # IHB16LP1/UNV34
SKU # 2315328
IHB16LP1/UNV34
Crouse Hinds IHB16LP1/UNV34 High Bay Luminaire
Part Number # IHB16LP1/UNV34
SKU # 2315328
Crouse Hinds IHB16LP1/UNV34 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | IHB16LP1/UNV34 |
| SKU #: | 2315328 |
| Amperage Rating: | 0.11 to 0.24, 0.11 to 0.24 A |
| Fixture Wattage: | 145, 145 W |
| Lamp Wattage: | 145, 145 W |
| Light Output: | 117 Lumens/W |
| Lumens: | 16900, 16900 Lumens |
| Series: | IHB, PMV |
| Type: | Indoor, Type I Wide Optic |
| UNSPSC: | 39111904 |
| UPC: | 00662276531512 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds IHB16LP1/UNV34 High Bay Luminaire
Brand: Crouse Hinds
Part Number: IHB16LP1/UNV34
EATON Crouse-Hinds High Bay Luminaire, Type I Wide Optic, Series: IHB, 347 to 480 VAC, 145 W Fixture, 0.11 to 0.24 A, LED Lamp, 145 W Lamp, 117 Lumens/W Light Output, 60000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, Non-Dimmable Ballast, 16900 Lumens, NEMA 4X/IP66 Enclosure, Pendant Mounting, Aluminum Housing Material, Epoxy Powder Coated Housing Finish
Additional Description: CRHD-IHB16LP1/UNV34 (N) IHB POLYC TYPE I NO MNT 347-480VAC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series IHB industrial high bay LED light fixture, Cool white, Non-dimmable driver, 250W-500W HID or 4-lamp T5HO, Glass lens, 16000 lumens, 116 lm/W, Aluminum, Pendant mt, Wide, 3/4" trade size, 347-480Vac, 145W
IHB16LP1/UNV34 Application
Locations requiring continuous and consistent light levels, areas requiring frequent ON and OFF of lights, areas that are difficult to re-lamp or that cause production to be stopped during the lamp maintenance process, ordinary clean, light industrial production facilities, packaging facilities, warehouses and damp locations, industrial facilities, factories facility, lighting and lighting controls ApplicationsIHB16LP1/UNV34 Item Features
- Up to 67% energy savings over traditional HID fixtures
- Damp location rated
- -40 to 60 deg C operating temperature
- High efficiency up to 117 Lumens/W
- Tempered glass or polycarbonate led lenses material
- Contains no mercury or other hazardous substances
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- Full cut-off with no wasted light above the fixture
- Up to 77% typical energy saving
- Silicone gasket
- Heat and impact resistant glass lens
- 50/60 Hz frequency rating
- Total harmonic distortion <20%
- Ideal for general high bay/low bay illumination
- -40 to 65 deg C operating temperature
IHB16LP1/UNV34 Standards
cULus Listed|UL ListedSKU #2315328Part Number #IHB16LP1/UNV34UNSPSC39111904UPC00662276531512

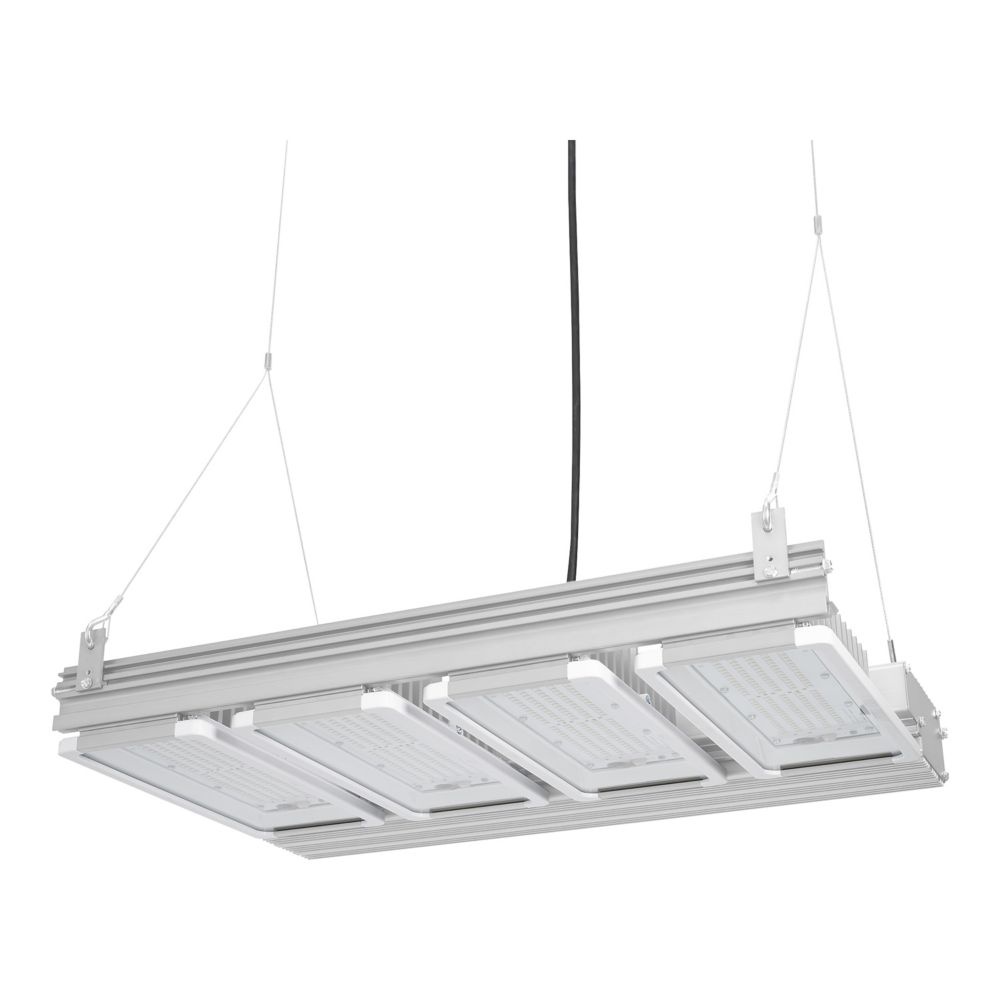

Image provided may only be a representation of final product and may include optional equipment
