Crouse Hinds LBH100 Condulet Conduit Outlet Body
Part Number # LBH100
SKU # 2394888
Crouse Hinds LBH100 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | LBH100 |
| SKU #: | 2394888 |
| Capacity: | 507 cu-in |
| Dimensions: | 7-1/8 in W x 11-3/4 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Hub Size: | 4 in |
| Type: | Type LBH 90 deg |
| Connection type: | Thread |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274519906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds LBH100 Condulet Conduit Outlet Body
Brand: Crouse Hinds
Part Number: LBH100
Crouse-Hinds Condulet Conduit Outlet Body, Type LBH 90 deg, 4 in Hub, 2 Hubs, 507 cu-in Capacity, Thread Connection, Copper-Free Aluminum, Aluminum Acrylic Painted/Electro-Galvanized, 7-1/8 in W x 11-3/4 in H Dimensions
Additional Description: CRHD-LBH100 (N) 4 CNDT OUTLET BODY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Condulet LBH conduit outlet body with cover, Feraloy iron alloy, 4"
LBH100 Application
For use in rigid conduit systems installed in hazardous areas and industrial facilities and factoriesLBH100 Item Features
- Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction
- Domed covers to permit easy conductor bends
- Taper threaded hubs with integral bushings
- Act as pull outlets especially for conductors that are stiff due to large size or type of insulation
- Make 90 deg bends in conduit system, allowing straight pull in either direction
- Provide for conduit service entrance to buildings
- Provide for conductor entrance to motors
- Provide access to wiring for maintenance and future system changes
LBH100 Standards
UL 1203|UL 886|CSA C22.2 No. 30|NEC Class I Div 1 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class IIISKU #2394888Part Number #LBH100UNSPSC39131708UPC00782274519906

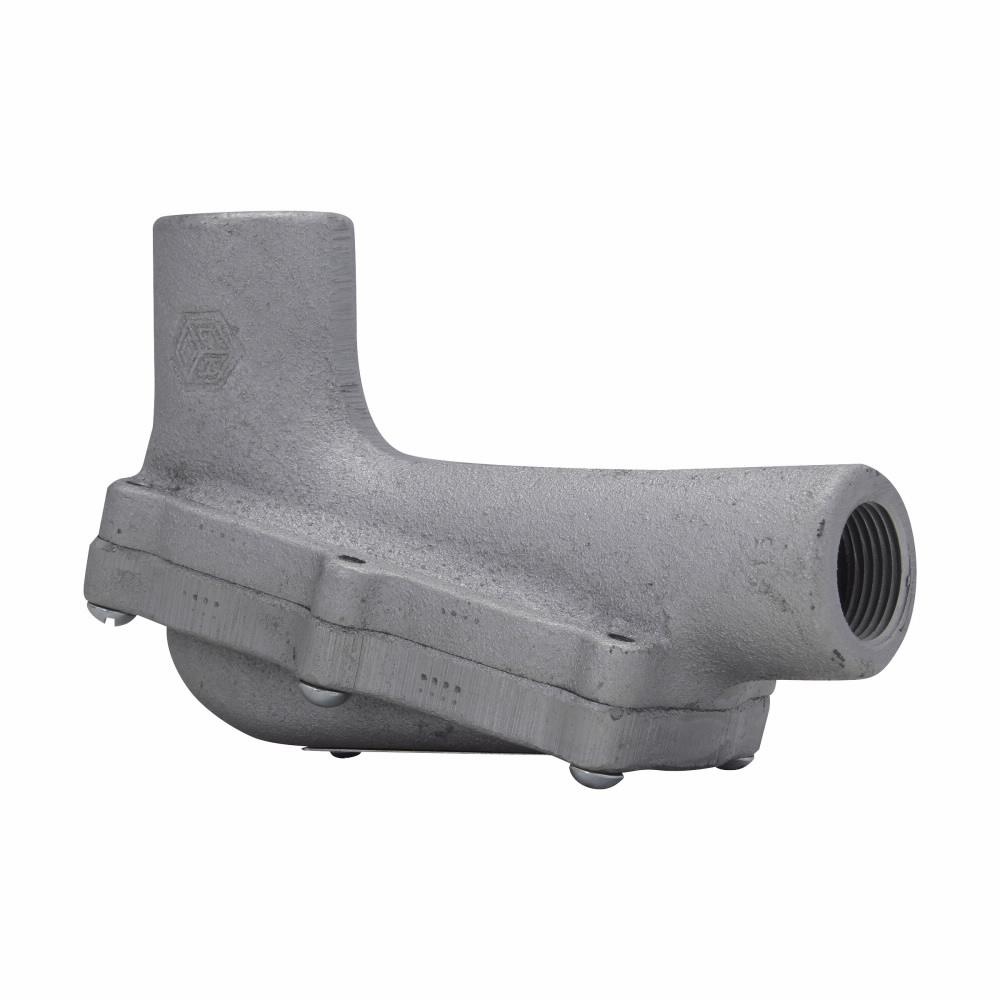

Image provided may only be a representation of final product and may include optional equipment
